Help Center2016 Top Sale 40ft 3 Axles Gooseneck Skeleton Container Semi Trailer/container Trailer Chassis for Sale
Related Products
-
Special for Transporting 20ft and 40ft Container Used Skeleton Semi Trailer With Best PriceUS$ 9,000 - 9,000MOQ: 3 Sets -
Factory Price 3 Axles 40ft Skeleton Container Trailer , 20ft Skeleton Semi Trailer Container ChassisUS$ 9,000 - 9,000MOQ: 3 Sets
-
Factory Price 20ft 40ft Semi Trailer With Container Good Quality Container Moving Trailer for SaleUS$ 5,000 - 20,000MOQ: 1 Set
-
Factory Price 20ft 40ft Container on Trailer Good Quality Container Skeleton Trailer for SaleUS$ 5,000 - 20,000MOQ: 1 Set
-
Factory Price 20ft 40ft Skeletal Semi-trailer Good Quality Used Container Chassis Trailers for SaleUS$ 5,000 - 20,000MOQ: 1 Set

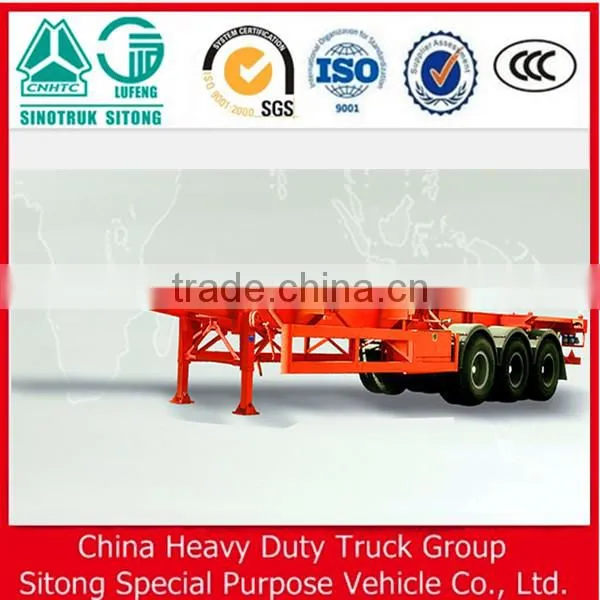

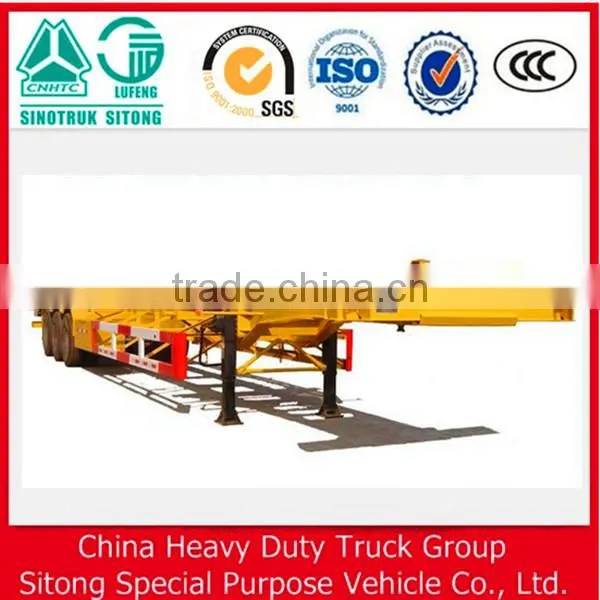

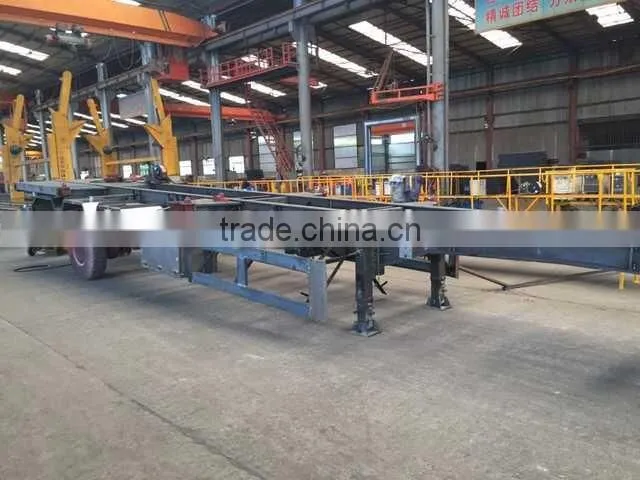

2016 top sale 40ft 3 axles gooseneck skeleton container semi trailer/container trailer chassis for sale
Gross Weight |
5-8 tons semi trailer |
|
Outer side dimension (mm) |
12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT truck semi trailer |
Loading Capacity (Ton) |
≤ 45 T (40FT) ≤30T (20FT) container trailer |
AXLES |
13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand |
Tire |
12.00R22.5 or 1100R20 China Brand or According to Customer requirement truck semi trailer |
Rim |
9.00-22.5 China Brand semi trailer |
Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg |
JOST brand D200T or China brand 28Tons (Double speed) |
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . truck semi trailer |
Side beam |
16mm or 18mm channel steel ( Material is Q235steel ). container trailer |
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve |
WABCO valve semi trailer |
ABS |
Optional semi trailer |
Light |
LED light truck semi trailer |
Voltage |
24V semi trailer |
Receptacle |
7 ways (7 wire harness) container trailer |
Tool box |
One piece, 1m×0.5m×0.5m (Size can be choose freely) container trailer (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: |
Transport by bulk cargo carrier, RORO or 40HQ container. truck semi trailer |
Container trailer truck semi trailer
Low bed semi trailer/Flatbed semi trailer/
Skeleton semi trailer/Fuel tank semi trailer
Bulk cement tank semi trailer/Stake semi trailer/
Side wall semi trailer/Rear tipping semi trailer
Box /van container semi trailer/Car transport semi trailer
Wood transport semi trailer/Concrete mix truck/
Full trailer/HOWO truck head
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
7. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
8. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
9. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
10. How to contact us ?
MS Panny QU
Skype: pannyqu
Tel: +86 537 2882988
Mob: +86 18753778511
Email: SitongTrailer(at)
