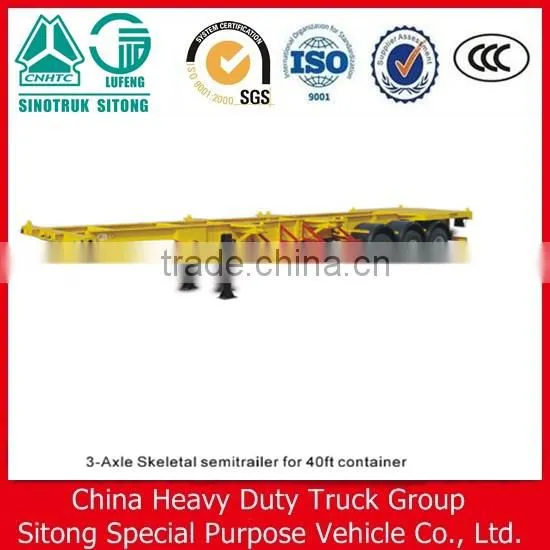

Jining Sitong trailer container trailer skeleton truck and trailer for sale
Product information
Gross Weight | 5-8 tons |
Outer side dimension (mm) | 12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT |
Loading Capacity (Ton) | ≤ 45 T (40FT) ≤30T (20FT) |
AXLES | 13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand |
Tire | 12.00R22.5 or 1100R20 China Brand or According to Customer requirement |
Rim | 9.00-22.5 China Brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | Transport by bulk cargo carrier, RORO or 40HQ container. |
Related product
Certifications
Company information
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology,
and owns professional product inspection line and a complete CAD system,which attributes to
the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
Company honor
Product line
After-sale service
FAQ
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
7. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment.
If you have place an order of large quantities, then ,of course, the price can be lowered.
8. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
9. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
10. How to contact us?
Miss Anne Shi
Tel:+86 537 2882988
Fax: +86 537 2882988
Mob:+86 13098850043
Wechat: smf0409
Skype:manfei0409
