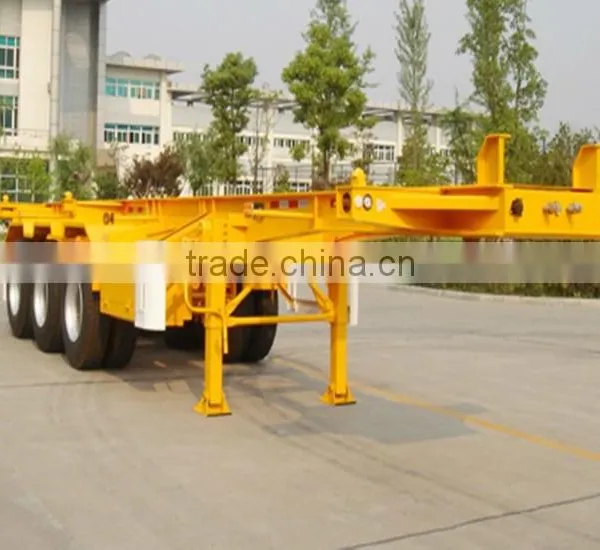

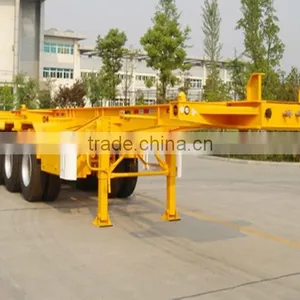

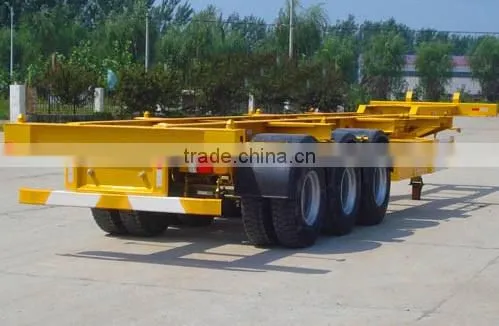

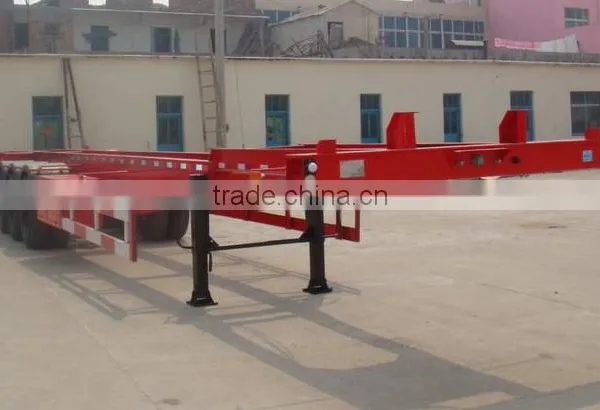

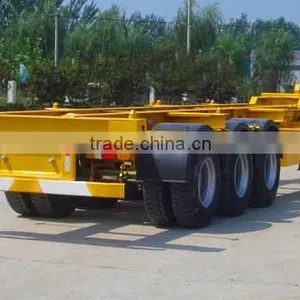

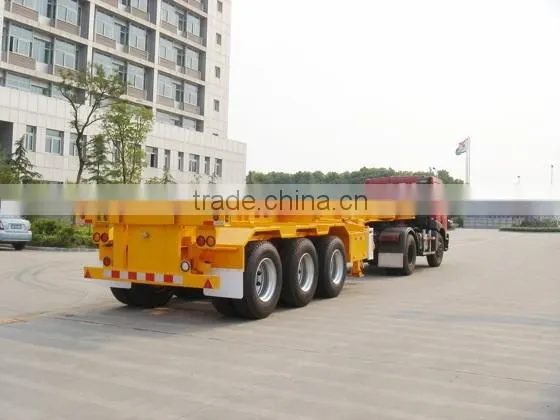

frame chassis manufacturer 3 axles 40ft skeleton trailer/skeletal container semi trailer for sale
Specification
Gross Weight | 5-8 tons |
Outer side dimension (mm) | 12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT |
Loading Capacity (Ton) | ≤ 45 T (40FT) ≤30T (20FT) |
AXLES | 13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand |
Tire | 12.00R22.5 or 1100R20 China Brand or According to Customer requirement |
Rim | 9.00-22.5 China Brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | Transport by bulk cargo carrier, RORO or 40HQ container. |
Pictures
1. shipping way: RORO, bulk ship, 45ft container.
2. package:

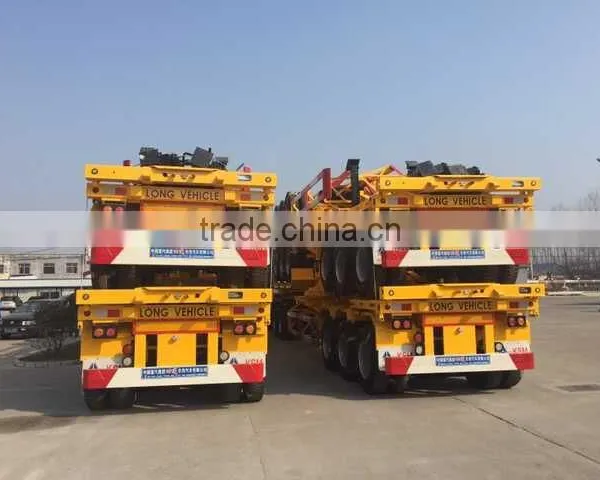

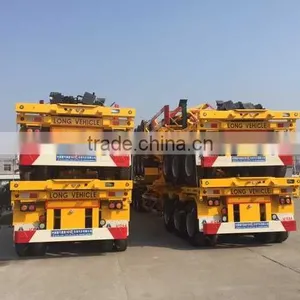

A. Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
B. Keep the trailer original but load three sets in one 45ft container.
Due to 14years' technical experience ,we can offer high quality but low price.Besides,the producing process is strict and quick,customers' goods will be ready for shipment within 15days after we receive the deposit.
1. OEM Service
2. Production Solutions Service
3. Customized Service
4.Quality Guarantee

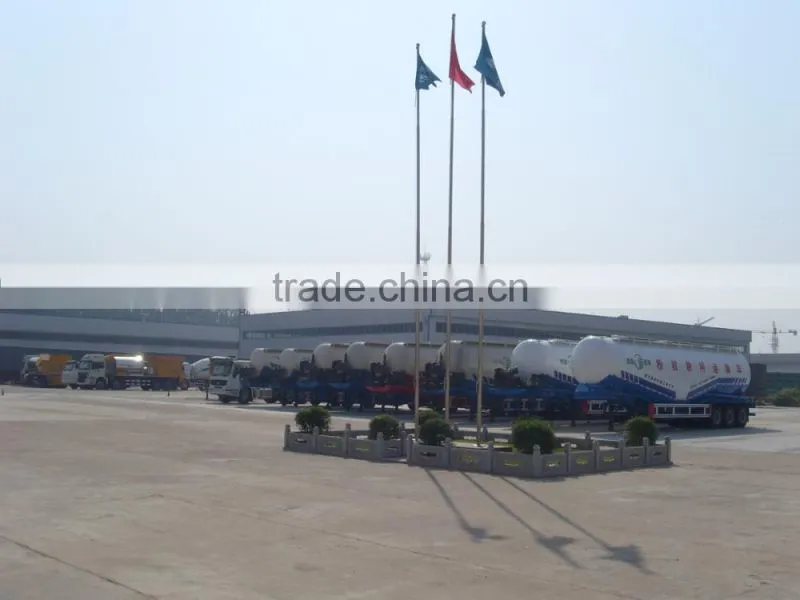

China Heavy Duty Car Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .

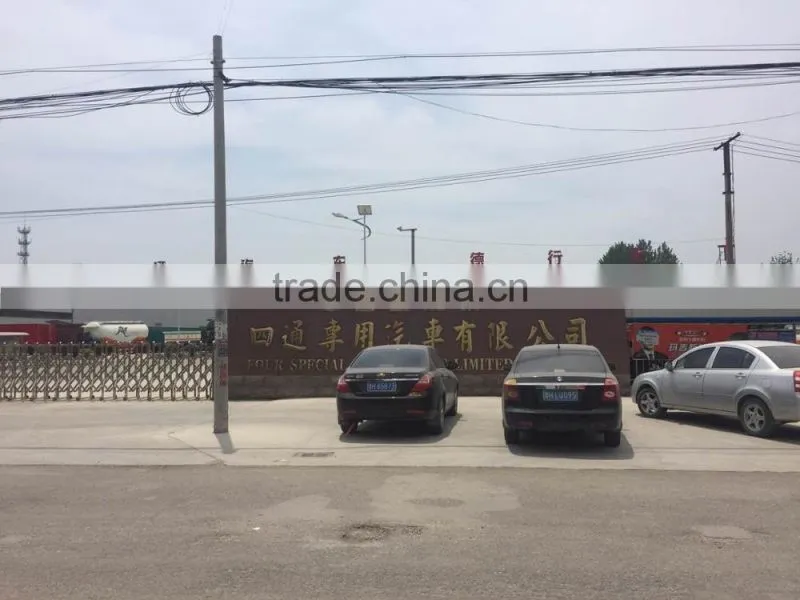

Our factory is located in liangshang county, jining, shandong province, China
we are chinese semi trailer factory, our factory has been in semi trailer business line for more than 12 years, the following are our main products:
flatbed semi trailer
skeleton semi trailer
low bed semi trailer
fuel tank semi trailer
bulk cement tank semi trailer
stake cattle semi trailer
side wall semi trailer
rear tipping semi trailer
box / container semi trailer
car transport semi trailer
wood transport semi trailer
concrete mix truck
full trailer
HOWO truck
1.Are you manufacture?
Yes. We are a leading manufacturer for kinds of pneumatic torque with many new production line.
2.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
3.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
4.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
5.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
6. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after
we received your prepayment. If you have place an order of large quantities,
then ,of course, the price can be lowered.
7. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
8. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight.
If you are interested in our products,please feel free to contact:
Anne Shi
CNHTC Liangshan Sitong Special Automobile Co., Ltd.
Phone number:+8613098850043
Skype: manfei0409
Fax:+86 5372882988
