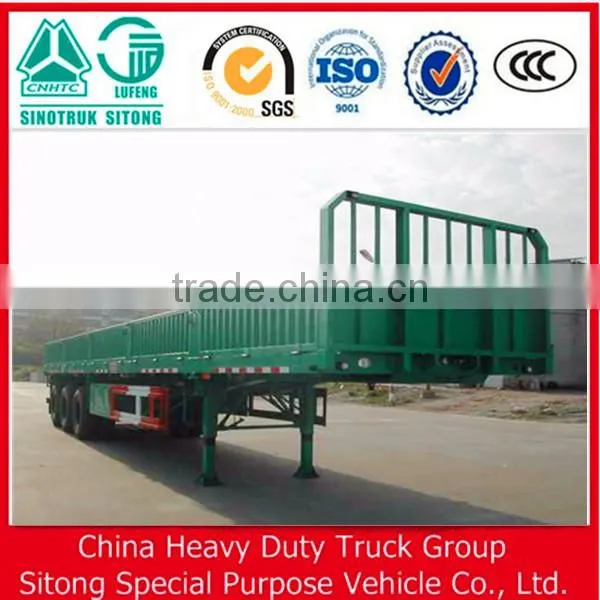

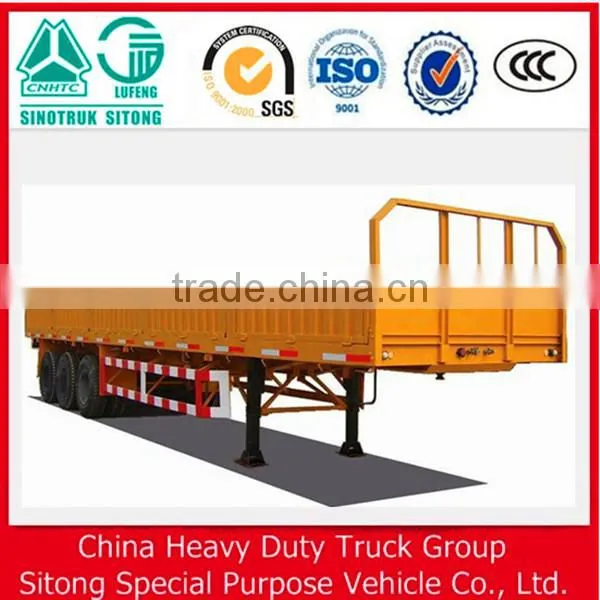

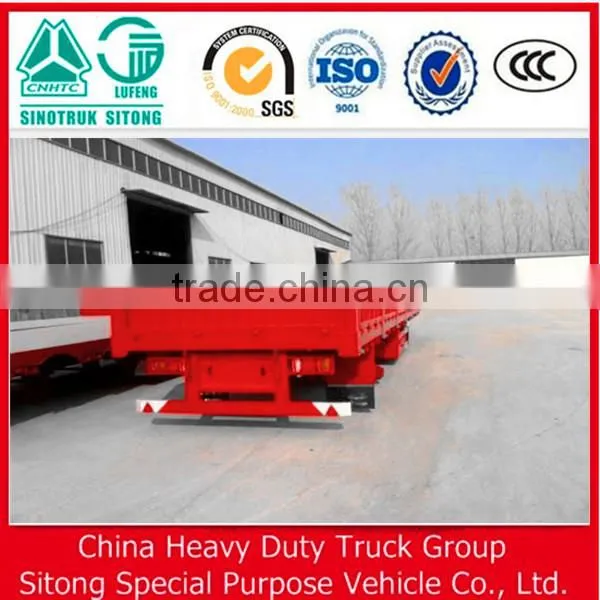

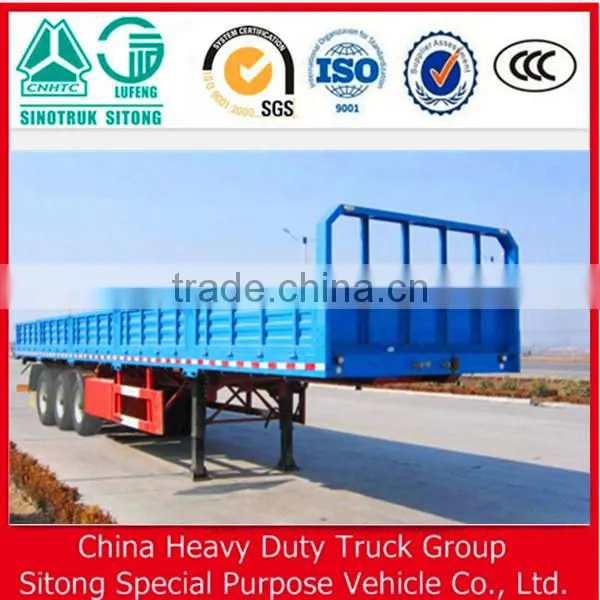

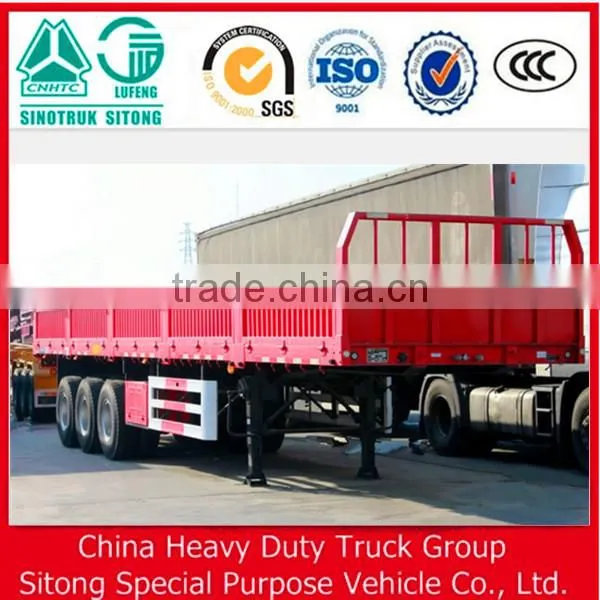

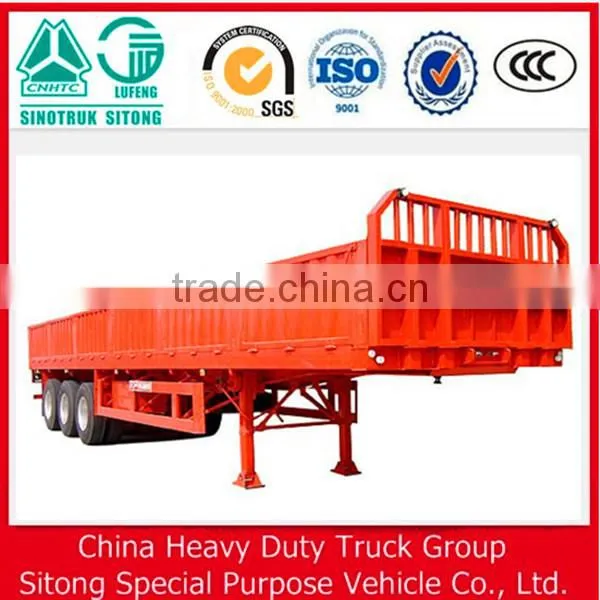

Tri-Axle 40ft Side Wall Loader Trailer for Cargo Transport

Name: Tri-Axle 40ft Side Wall Loader Trailer for Cargo Transport
Brand: LUFENG
SKU: 141205616
Availability: InStock

US$ 6,800 - 6,800 MOQ: 3 Sets

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

DOT

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification DOT

Size 13*2.5/.*1.5M

OEM No. 37081198902

Max Payload 31.2T

Place of Origin Shandong, China

Brand Name LUFENG

Model Number LST9390

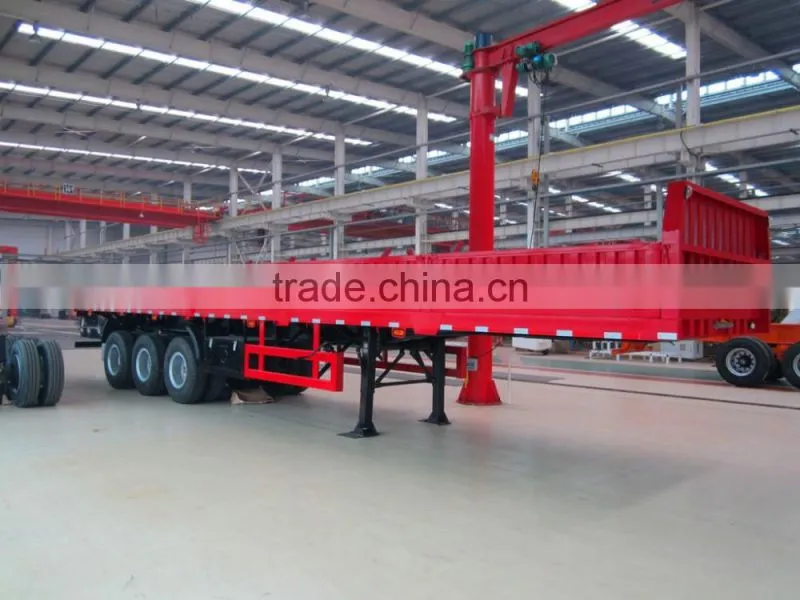

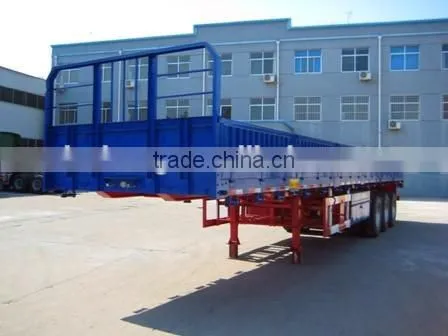

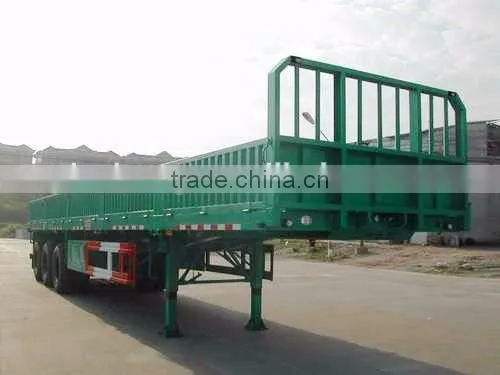

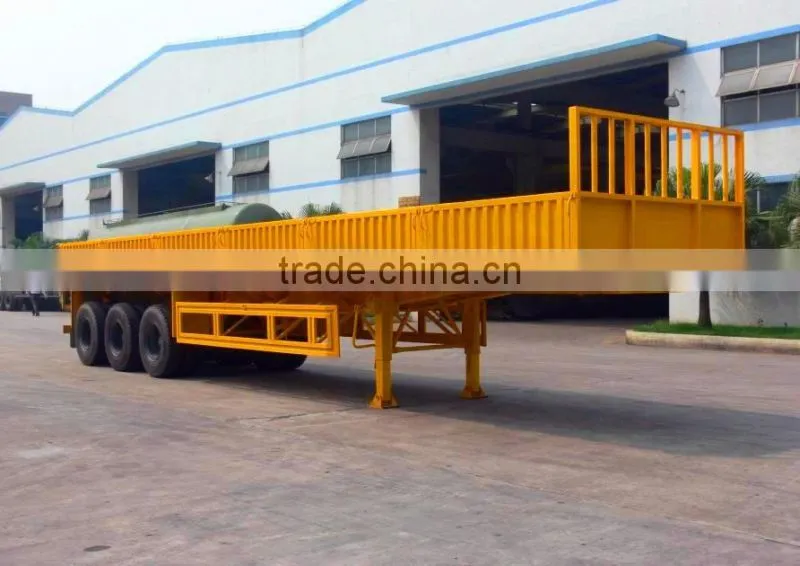

Tri-Axle 40ft side wall loader trailer for cargo transport

Product Description

Side wall semi trailer Dimension	1128024953970mm(Outside Dimension)1050023001700(Inside Dimension)
Tare Weight	15600kg
Total Volume	37m3 or less than 80tons
Side wall thickness(mm)	6mm Q235 steel
Bottom plate thickness(mm)	8mm Q235steel
Lifting system	Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Main beam	Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel
Axle	13T/16T,FUWA/BPW/Huajing Brand
Spring leaf	90(w)mm13(thickness)mm10Layer or 100mm12mm12
King pin	Jost brand 2.0 0r 3.5 inch bolts type or welding type
Landing Gear	JOST brand D200T or China brand 28Tons (Double speed)
Suspension	Mechanical suspension/America Type/Germany Type
Rim	9.00-22.5/8.00-20/8.5-20China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available
Pneumatic Braking system	WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank
ABS	Optional
Tool box	One piece,1m0.5m0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint
Shipping term	Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer
