Side Wall Full Set Truck Trailer
Factory direct selling all kinds of types Full Truck Trailer

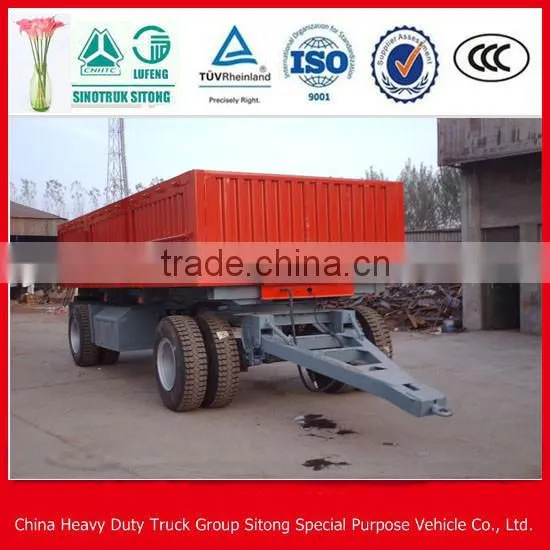

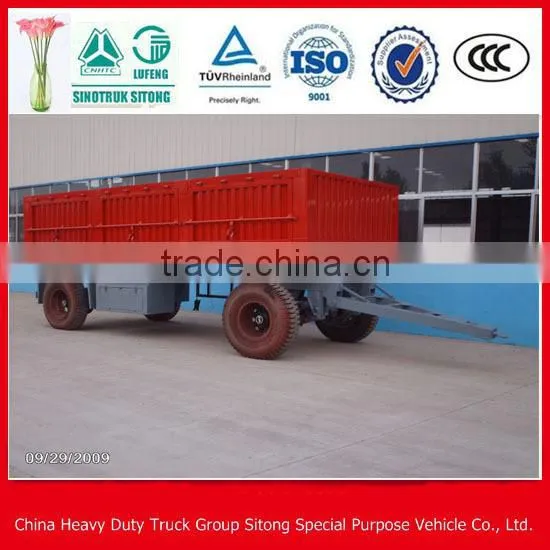

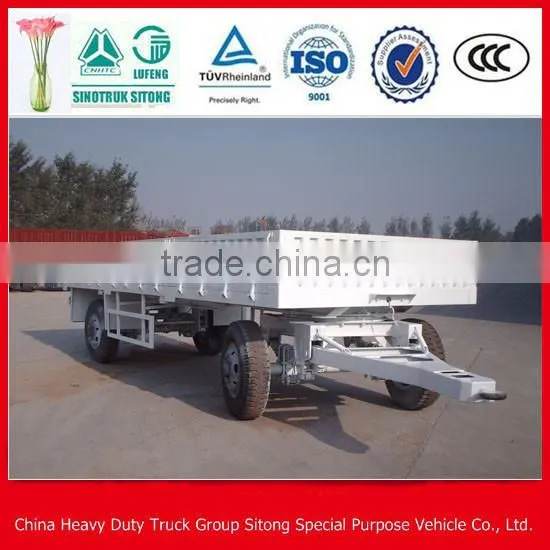

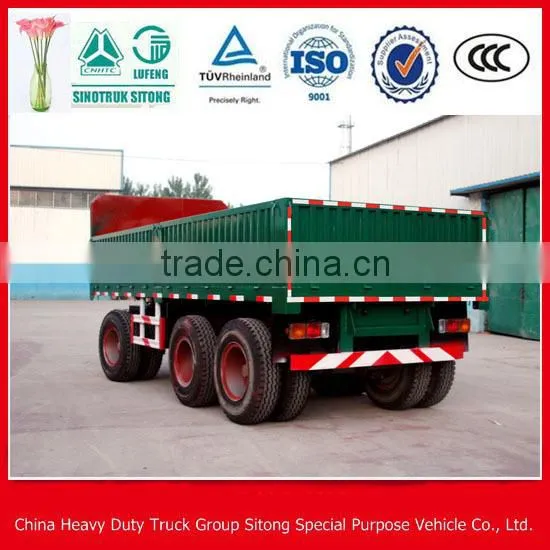

Cargo Transport Full Truck Trailer with Hydraulic Tipping System
We offer trailer mainly for tractor, farm tractor , 4 wheel tractor , Tractor Trailers for effectively use in diversified areas such as Agriculture, construction, solid waste management & transportation etc.
We are good tractor supplier from China. Specialize in farm equipment. Our manufactured products are known for their durability, high strength best performance and and cost effectiveness.
The tractor trailers available with us are :Tipping & Non Tipping trailer
( Two Wheel & Four Wheel Load Carrying Capacity 1 MT to 20 MT)
Tractor trailer Tipping tractor
Capacity: 5-20T
No. of wheels: 2 Wheels/4 wheels/8 wheels.
Farm trailer regular type/ EU type etc.
Trailer Size: can be customerized.
Dump: Tipping type or non-tipping both available.
Type |
FULL FARM TRAILER |
Weight |
|
Tare Weight |
4800kg |
Loading Capacity |
25T |
Axle Weight Load |
13T |
Axle number |
Two |
Axle specs. |
FUWA Brand |
Suspension |
America type mechanical Suspension |
Wheel |
11:00 R20 |
Turntable |
Diameter is 1100mm |
Traction hook |
DN50 |
Traction bar |
Length is 1.4m |
Dimensions(LxWxH) |
8700×2500×1500mm, (working length is 7.2m) |
Steel Spring |
10/10 pieces per axles |
Tire: |
|
Number of rim |
8 |
Spare Tire Carriers |
1/pieces |
Frame: (specs. and materials) |
|
The material of |
The height of the beam is420mm,upper plate is 12mm, down plate is 12mm,middle plate is 6mm(strictly).made of Q345 |
Platform plate |
3mm Diamond Plate |
Brake: |
VABCO VALVE |
Brake |
Kemi Brand of China |
Brake Chamber |
TWO double and two single chamber( TKL brand ) |
ABS system |
with |
Electrical: |
|
Voltage |
24V |
Receptacle |
7 ways(7 wire harness) |
Light color: |
(LED light) |
Side marker lamp |
Orange |
Rear lamp |
Red |
Turn signal lamp |
Orange |
Miscellaneous: |
|
Painting |
Can be choose freely |
Marking |
According to the requirement of the buyer |
Side Guard |
According to the requirement of the buyer |
Tools box |
One pieces or According to the buyer(1m length) |
Water tank |
The size can be choose freely. |
Normally semi trailer is nude packing , bulk cargo , laden in bulk .
Considering our semi trailer dimension , shipping by sea .
1. OEM Service
2. Production Solutions Service
3. Customized Service
4. One-stop Shopping Service
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Please explain more about the Package and Shipping.
There's no package but we will spary wax before shipment against saltwater corrosion.
Regarding to the shipping method, as the size of truck trailer is not small, most kinds of trailers must be delivered by Ro-ro vessel or bulk vessel. But few kinds of trailers could be delivered by container vessel. Different trailers, different shipping methods.
