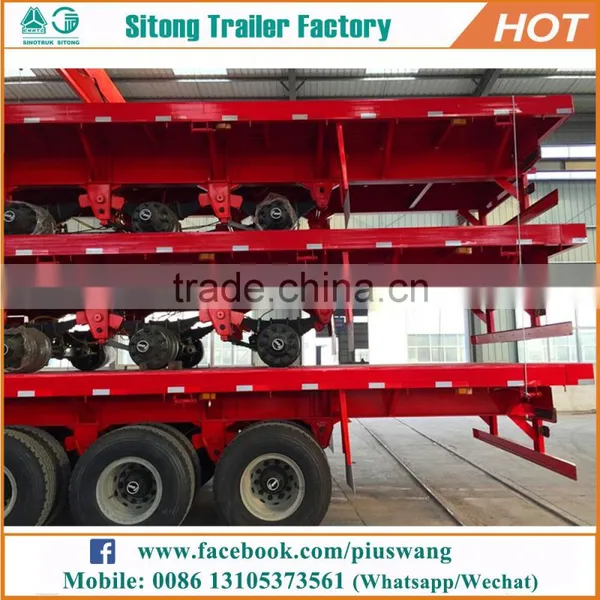

Durable 20ft 40ft container transport semi trailer container dolly trailer

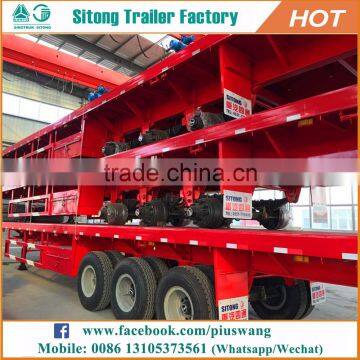

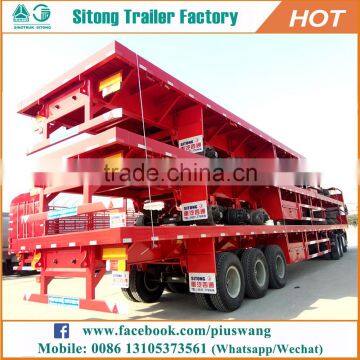

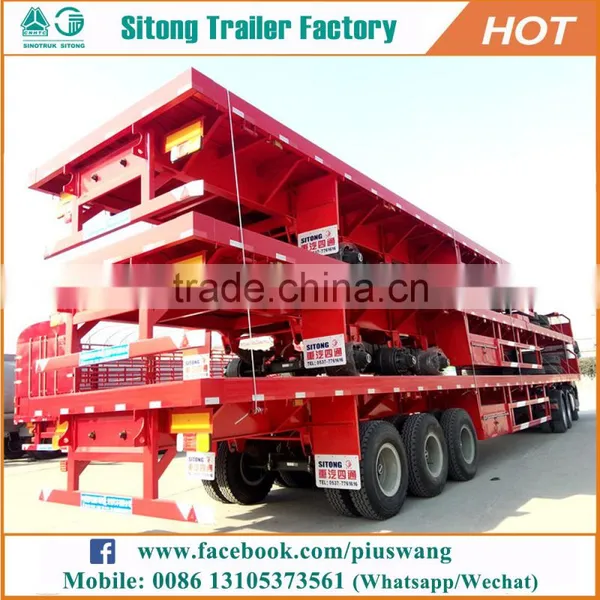

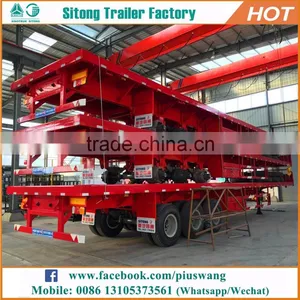

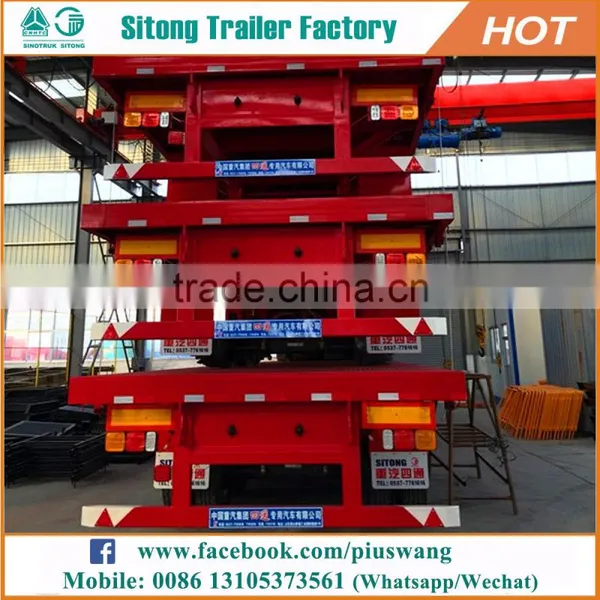

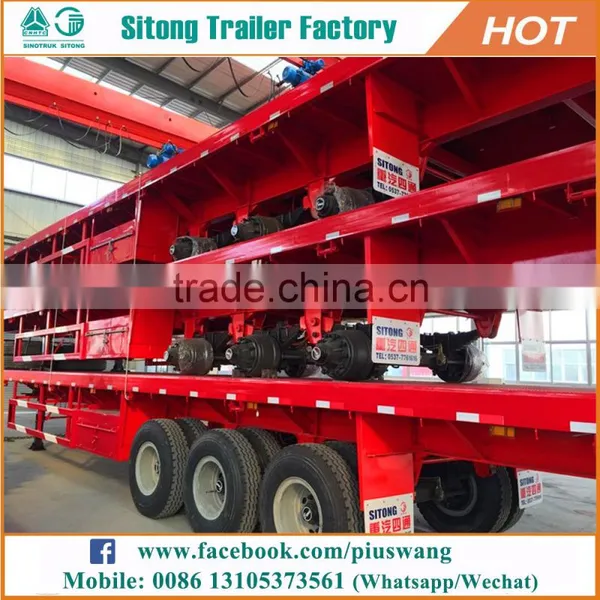

Sitong Trailer can offer different type or FLATBED TRAILER for dry loads. These kind of Flatbed Trailers are used for carrying container, steel, other items which is loaded with pallet. Sitong Trailer can offer these semi-trailers with different specification according to country regulations and customer demand.
Features of flatbed semi trailer including:
Trailer length – 45’ to 53’
Trailer width – 96” to 102”
Trailer weight – 8,500 to 12,000 lbs.
Different axle and suspension settings to accommodate different operations and meet various state laws
|
https://youtu.be/QltuwJMTxHk?list=PLiyf8lirC34AEzepUl49uIjz4NV9gK6Qp |
Specifications | |
Dimension |
12.5m×2.5m×1.5m (Outside) |
Payload |
35-75 Tons |
Tare weight |
About 4.5-8.5 Tons |
Twist lock |
4, 8, 12 units or customized |
Chassis | |
Frame |
Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material |
Frame Beam |
Upper and lower plate is20mm,middle is10mm.height is 500 mm |
Frame Floor |
The Thickness is 3-8 mm flat bed |
Axle |
2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear |
JOST (D200T)or CHINA BRAND 28T |
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension |
Mechanical suspension/Germany or America type/air suspension |
Leaf Spring |
90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks. |
Rim |
8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional |
Tire |
11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional |
ABS |
Optional |
Accessories |
One standard tool box |
Voltage |
24V |
Packing and shipping | |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms |
By Bulk Cargo/RORO/40HQ containers |
| Service details | |
| MOQ | One unit trailer or truck. We suggest two trailers one time to save the freight. |
| Lead Time | 10-20 days after payment is confirmed |
| Payment | 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished. |
| Trade terms | EXW&FOB&CNF&CIF |
| Shipping | For 90% of our shipment, we will go by sea, to all main continents; For neighborhood countries of China, we can ship trucks by road or railway. |
| Warranty | All of our trailers are produced strict with ISO standard, you needn’t worry about it. Certainly, if your trailer parts wear out, we can provide suitable parts for you. |
| QC | Each product will be 100% checked before shipment. |
| After-Services | We promise to do our best to solve all of your problems |
| OEM&ODM | OEM design,OEM color,OEM packing ,ODM are highly welcome. |
Sitong Trailer Factory
Founded in 2002, more than 14 years experience in production and export,with strong technical support and dependably after-sales service.
Located in Liangshan, Shandong Province(Trailer production base of China) and covers an area of more than 35000 square meters,we enjoy convenient access to major transportation networks,with more than 150 people and 20 technicians including 5 professor senior engineer and 12 senior technicians,all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality.Meanwhile,OEM and ODM orders are welcome.
Description of products
Tanker Trailer / Low Bed Trailer / Flatbed Trailer / Dump Trailer / Container Transport Trailer / Side Wall Semi Trailer / Fence Semi Trailer / Box semi trailer etc.
About R&D
Sitong Trailer has a team of passionate and experience R&D engineers.Most of them possess advanced degrees and rich experiences.The managements are also specialists and experts with an average of over 10 years experience.These individuals are the ones who developed the core intellectual property of the company.This is the technical foundation of the expertise that make Sitong a industry leader.
About Qality Control
As a leading semi trailer manufacturer,Sitong is delicated to quality control by ensuring quality in every step of the manufacturing prcess.Our quality assurance management includes:
1.A set of detailed procedures that covers all manufacturing processes.
2.Monitoring processes to ensure their effectiveness.
3.Keeping adequate records.
4.Checking output for defects,with appropriate corrective action wherever necessary.
5.Regular review of individual processes and the quality system itself for effectiveness.
6.Facilitating continuous improvement.
To find the best and the most appropriate for you!
