Home > Products > Switching Power Supply > YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply

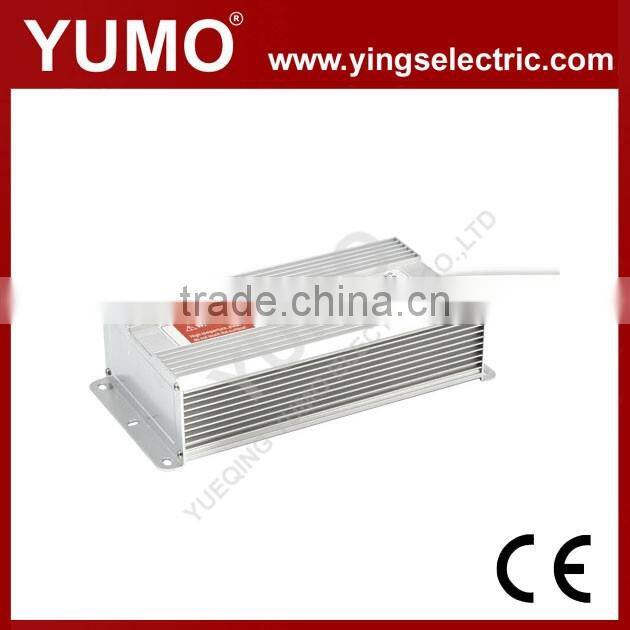

YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | LPV-150 |
Output Power: | Other, 150-151W | Output Type: | Single | Input Voltage: | Other, 170-264VAC |
Output Voltage: | 12-24V | Output Frequency: | 47~64HZ | Output Current: | 4.2-12.5A |
Product Description
YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply
| ||||||
model | LPV-150-12 | LPV-150-24 | LPV-150-36 | |||
output | Dc output voltage | 12V | 24V | 36V | ||
Output voltage tolerance | ±3% | ±3% | ±3% | |||
Rated output current | 12.5A | 6.3A | 4.2A | |||
Output current range | 0~12.5A | 0~6.3A | 0~4.2A | |||
Output power | 150W | 151W | 151W | |||
Ripple and the noise | 120mVp-p | 150mVp-p | 180mVp-p | |||
Dc voltage adjustable scope | ±10% | ±10% | ±10% | |||
Start, rise, keep time | 1000ms,30ms,24ms/230VAC | |||||
input | Input voltage range | 180~264VAC 47~63Hz,255~373VDC | ||||
Exchange input current | 1.8A/230VAC | |||||
efficiency | 82% | 84% | 85% | |||
Impulse current | Cold start current 40A/230VAC | |||||
Leakage current | <2.5mA/240VAC | |||||
Protection characteristics | Overload protection | Protection way: hiccups mode, load abnormal conditions can be removed recovery | ||||

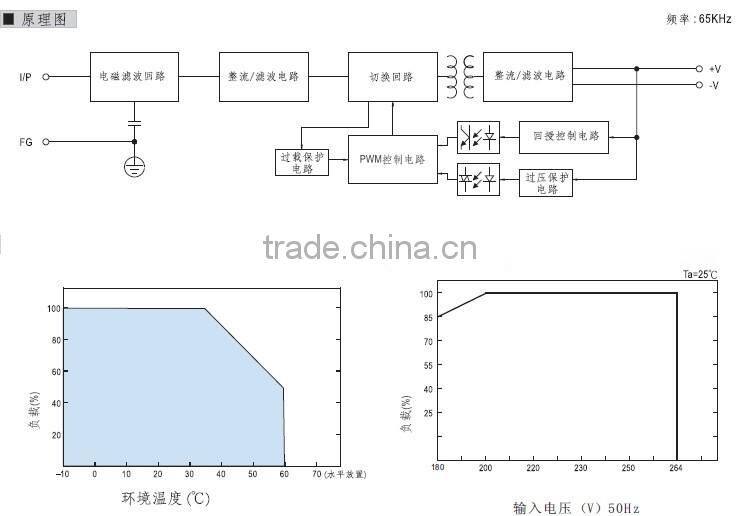

environment | Working temperature, humidity | -10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve ) | ||||
Keep temperature, humidity | -20℃~+85℃;10%~95%RH No condensation | |||||
Vibrate resistance | 10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis | |||||
security | Compression sex | Between input and output :1.5KVAC | ||||
Insulation resistance | Between input and output :100M Ohms/500VDC | |||||
security | Safety standards | Accord with UL1012 | ||||
EMC standard | Accord with EN55022,CLASSA | |||||

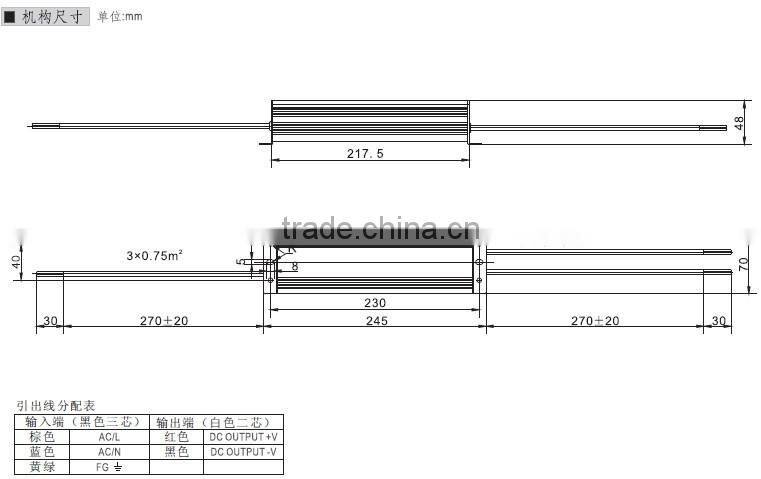

other | weight | 1.5kg 245*70*48(L*W*H) | ||||
packaging | 1.5kg/16pcs/25kg | |||||
note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. |
YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W
12/24/36V LED Wateproof Series vice rated voltage mode power supply Switching Power Supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W
12/24/36V LED Wateproof Series vice rated voltage mode power supply Switching Power Supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series vice rated voltage SMPS 100w switching power supply 12/24/36V LED Wateproof Series vice rated voltage mode power supply Switching Power Supply YUMO LPV-150 150W 12/24/36V LED Wateproof Series
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
