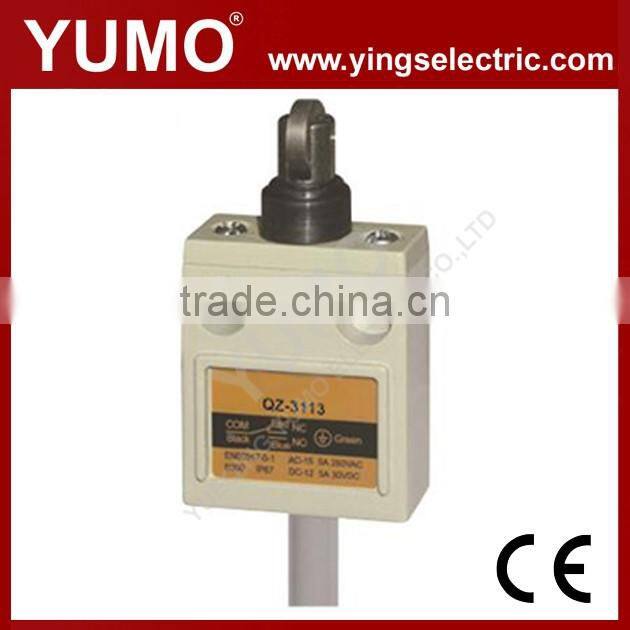

QZ-3113 33.3-35.3mm 5A 125V 3A 250VAC IP67 Waterproof Limit Switch
| Ratings | ||||||||
| Noninductive Load (A) | Inductive Load (A) | |||||||
| Rated voltage | Resistance Load | Lamp Load | iInductive Load | Motor Load | ||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125 VAC | 5 (0.1) | 1.5 | 0.7 | 3 | 2.5 | 1.3 | ||
| 250 VAC | 3 | 1 | 0.5 | 2 | 1.5 | 0.8 | ||
| 8 VDC | 5 (0.1) | 2 | 5 | 4 | 3 | |||
| 14 VDC | 5 (0.1) | 2 | 4 | 4 | 3 | |||
| 30 VDC | 4 (0.1) | 2 | 3 | 3 | 3 | |||
| 125 VDC | 0.4 | 0.05 | 0.4 | 0.4 | 0.05 | |||
| 250 VDC | 0.2 | 0.03 | 0.2 | 0.2 | 0.03 | |||
| Characteristicw/Application | |||||||||
| Models | QZ-3101 | QZ-3102 | QZ-3103 | QZ-3104(3108) | QZ-3110 | QZ-3111 | QZ-3112 | QZ-3113 | QZ-3169(3166/3167) |
| OF(Max.) | 1200gf(11.77N) | 1200gf(11.77N) | 1200gf(11.77N) | 580gf(5.69N) | 1200gf(11.77N) | 1800gf(17.65N) | 1800gf(17.65N) | 1800gf(17.65N) | 150gf(1.47N) |
| RF(Min.) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | 150gf(1.47N) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | 450gf(4.41N) | |
| PT(Max.) | 1.8mm | 1.8mm | 1.8mm | 25 | 1.8mm | 1.8mm | 1.8mm | 1.8mm | 15° |
| OT(Min.) | 3mm | 3mm | 3mm | 40 | 3mm | 3mm | 3mm | 3mm | |
| MD(Max.) | 0.2mm | 0.2mm | 0.2mm | 3 | 0.2mm | 0.2mm | 0.2mm | 0.2mm | |
| OP | 15.7±1mm | 28.5±1mm | 28.5±1mm | 28.5±1mm | 24.9±1mm | 34.3±1mm | 34.3±1mm | ||

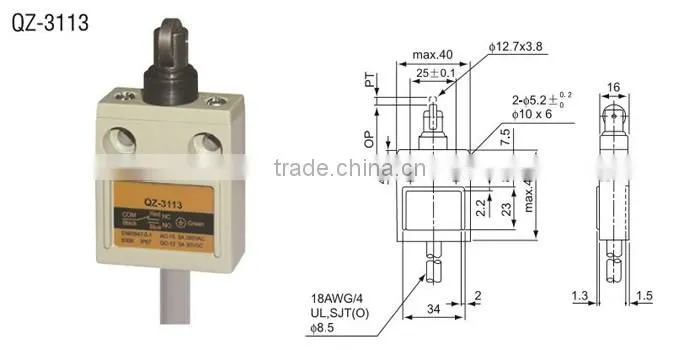

QZ-3113 33.3-35.3mm 5A 125V 3A 250VAC IP67 Waterproof Limit SwitchQZ-3113 33.3-35.3mm 5A 125V 3A 250VAC IP67 Waterproof Limit SwitchQZ-3113 33.3-35.3mm 5A 125V 3A 250VAC IP67 Waterproof Limit SwitchQZ-3113 33.3-35.3mm 5A 125V 3A 250VAC IP67 Waterproof Limit Switch
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
