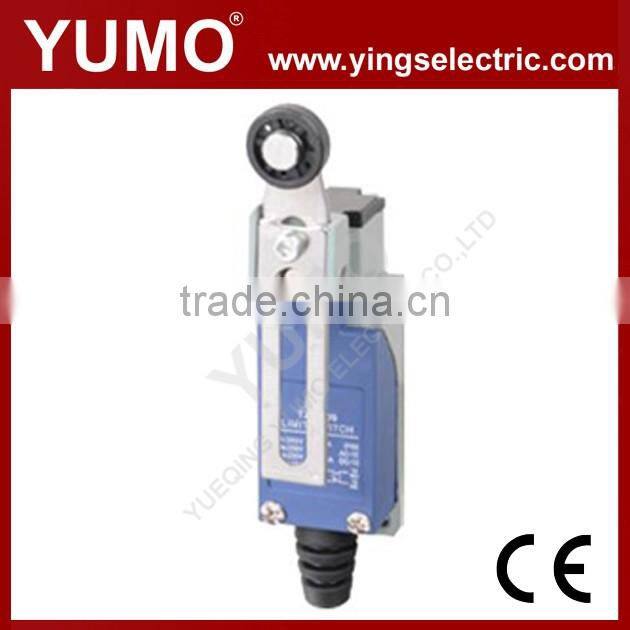

Home > Products > Switches > TZ-8108 Limit switch High temperature limit switch limit switch price IP65 comply with IEC60529 TZ-8 Limit switch
TZ-8108 Limit switch High temperature limit switch limit switch price IP65 comply with IEC60529 TZ-8 Limit switch
- 10000 Piece / Pieces per Month
- Shanghai/ Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | TZ-8108 |
Protection Level: | IP65, IP65 | Operating Temperature: | -25----70C | Max. Current: | 10A, 10A |
Max. Voltage: | 250V, 250V |
Product Description
TZ-8108 Limit switch High temperature limit switch limit switch price IP65 comply with IEC60529 TZ-8 Limit switch
Model | TZ-8104 | TZ-8108 | TZ-8107 | TZ-8111 | TZ-8112/8122 | TZ-8166/8167/8168/8169 | ||||||
Triggering | 30°convex trigger | 30°convex trigger | Any moving part | At the end | 30°convex trigger | Any moving part | ||||||
Contact operation |
| |||||||||||
Max triggering speed | 1.3m/s | 0.25m/s | 1.3m/s | |||||||||
Max restoring force | 750g | 750g | 750g | 900g | 900g | 150g | ||||||
Min restoring force | 100g | 100g | 100g | 150g | 150g | |||||||
Weight(kg) | 0.19 | 0.21 | 0.2 | 0.155 | 0.16 | 0.15 | ||||||
Wiring | Flexible rubber cable sleeve is suitable for cables of Ø6…9mm, each termianlcan hold conductors of 2mm² at most |
Characteristics of Contact Module | |
Rated operating characteristics | Inductive load:-AC15,B300(Ue=240V,le=1.5A) --DC-13,R300(Ue=250V,le=0.1A) Resistive load:250V,5A |
Rated insulation voltage | Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V, comply with UL508, CSA C22-2n° 14 |
Insulation resistance | >100MΩ, at 500V |
Operating frequency | 120 times/min |
Electrical life | 1,000,000 times,AC-15(Ue=240V,le=1.5A |
Contact resistance | ≤25MΩ,5V,5mA, after ten million times of operation |
Environmental Characteristics | ||
Normative reference | Product | IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N°14 |
Components | IEC60204-1,EN60204-1 | |
Ambient temperature | Operating | -25℃ to 70℃ |
Storage | -40℃ to 70℃ | |
Vibration resistance | Comply with IEC60068-2-6 | 55Hz,1.5mm double-amplitude |
Shock resistance | Comply with IEC60068-2-27 | 30gn 18ms, in any position |
Degress of protection | IP65, comply with IEC60529 | |
Mechanical life | 15,000,000 times |
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
YUEQING YUMO ELECTRIC CO.,LTD
TEL:0086-577-62791815 Mobile:0086-13757779011
Sky-pe:benjaminying TradeManager:yncync
