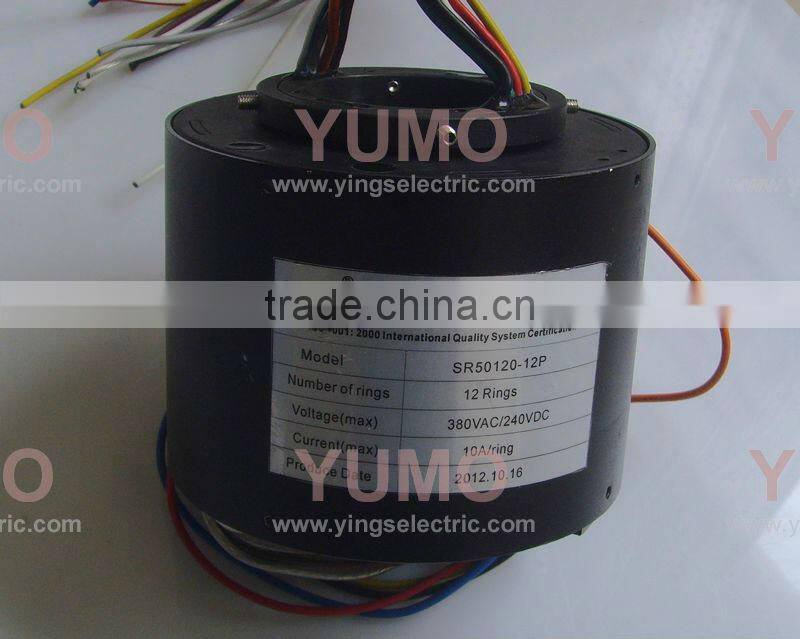

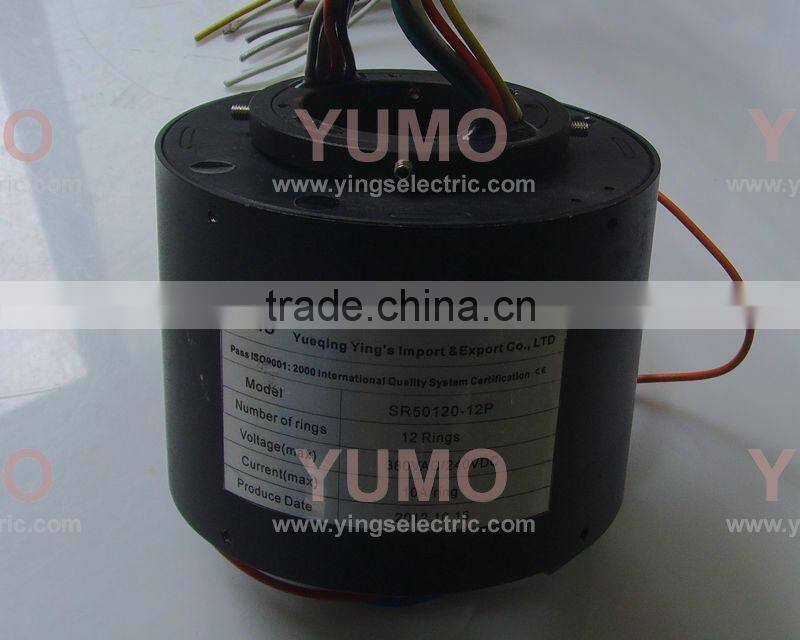

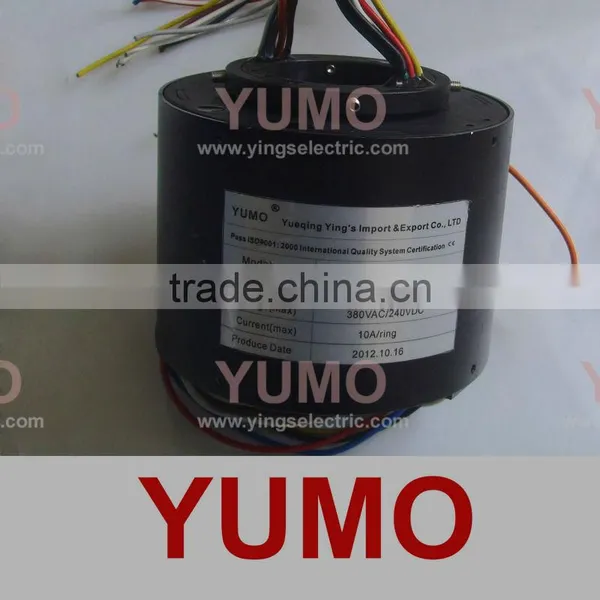

SR50120-12P Through bore slip ring

Specifications

SR50120-12P Through bore slip ring
Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,c

SR50120-12P Through bore slip ring



 Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,collecting ring,collector,ring,capsule slip ring,alternator slip rings,through bore slip ring,auto parts,graphite slip ring,conductive slip ring,compact, slip ring,carbon slip ring,slipring slip ring,slip hook,car  alternatior slip ring,slip mat,auto alternator slip ring,ring,slip printer,slip tiles,slip hold,slip box

SR50120 SERIES

Through-Bore dia.50mm

*Make use of advanced sheaf brush technology to design and manufacture

*Suffice 360° unrestrained continuous rotation in transmitting power and/or data

*Product modularize

*Long life and maintenance-free operation

Applications

*Industrial machine: processing center, revolving stage

*Heavy equipment, platform, cable coil, testing equipment

*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment

Type instruction

SR   50120   -   6P/12S

12S-unmber of rings

6P-unmber of power rings

50-in Φ50.1 mm

120-out Φ120 mm

SR-Slipring

Electric data

Specification	Unit
Voltage	600V
Lead type	Tinning wires, Colour coded
Lead length	500mm (other lengths on request)
Insulation Resistance	≥1000MΩ/500VDC
Dynamic contact Resistance	≤0.01Ω
Dielectric strength	500VAC @ 60Hz



Mechanical data

Specification	Unit
Operate Speed	0-1200 rpm continuous
Contact material	Gold or silver alloy
Bearing	Steel ball bearing
Housing	ABS Engineering plastics
Temperature range	-40 to 80
IP	IP 51- IP 65

The life of the slip ring is decided by the rotating speed, working environment and temperature.



Model	L=mm	Current		rings
		Power (10A)	Signal (2A)
SR50120-6P	70	6		6
SR50120-12S	70		12	12
SR50120-12P	100	12		12
SR50120-6P/12S	100	6	12	18
SR50120-24S	100		24	24
SR50120-18P	130	18		18
SR50120-12P/12S	130	12	12	24
SR50120-6P/24S	130	6	24	30
SR50120-36S	130		36	36
SR50120-24P	160	24		24
SR50120-18P/12S	160	18	12	30
SR50120-12P/24S	160	12	24	36
SR50120-6P/36S	160	6	36	42
SR50120-48S	160		48	48
SR50120-30P	190	30		30
SR50120-24P/12S	190	24	12	36
SR50120-18P/24S	190	18	24	42
SR50120-12P/36S	190	12	36	48
SR50120-6P/48S	190	6	48	54
SR50120-60S	190		60	60
SR50120-36P	220	36		36
SR50120-30P/12S	220	30	12	42
SR50120-24P/24S	220	24	24	48
SR50120-18P/36S	220	18	36	54
SR50120-12P/48S	220	12	48	60
SR50120-6P/60S	220	6	60	66
SR50120-72S	220		72	72

To compare with the actual size, the tolerance of length is + 1mm



Manufacture slip ring according to customers request, we also welcome OEM to join us.
