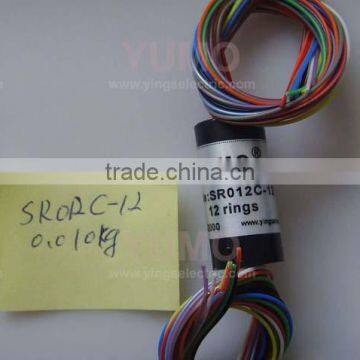

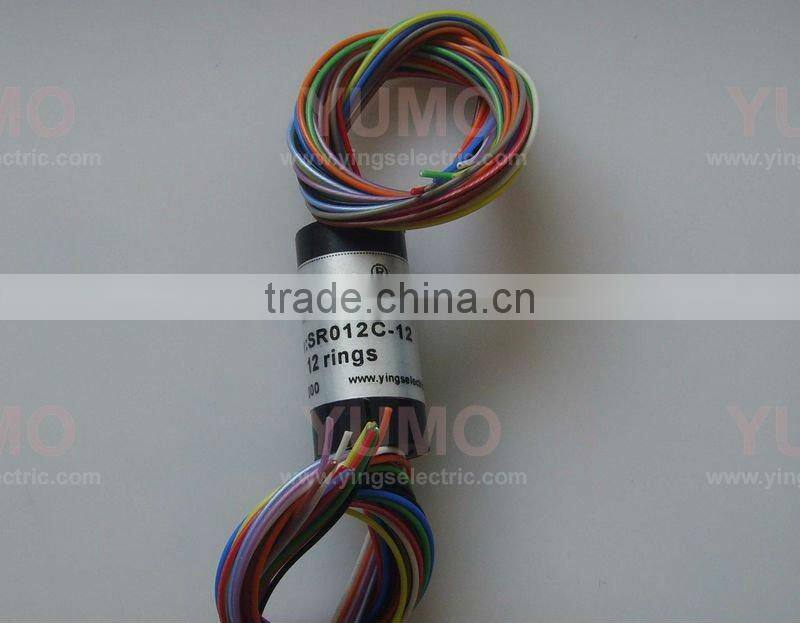

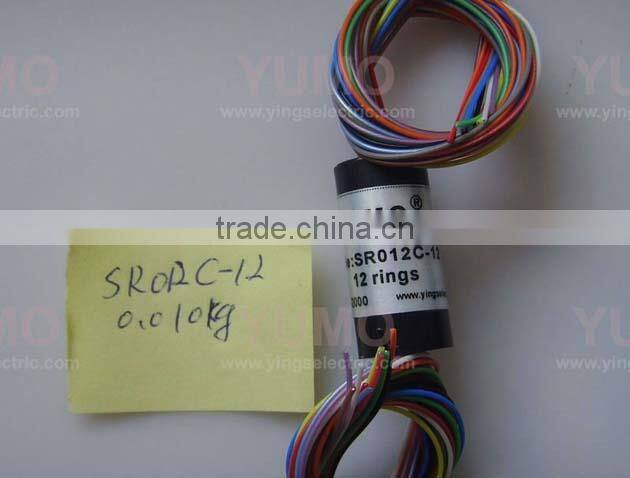

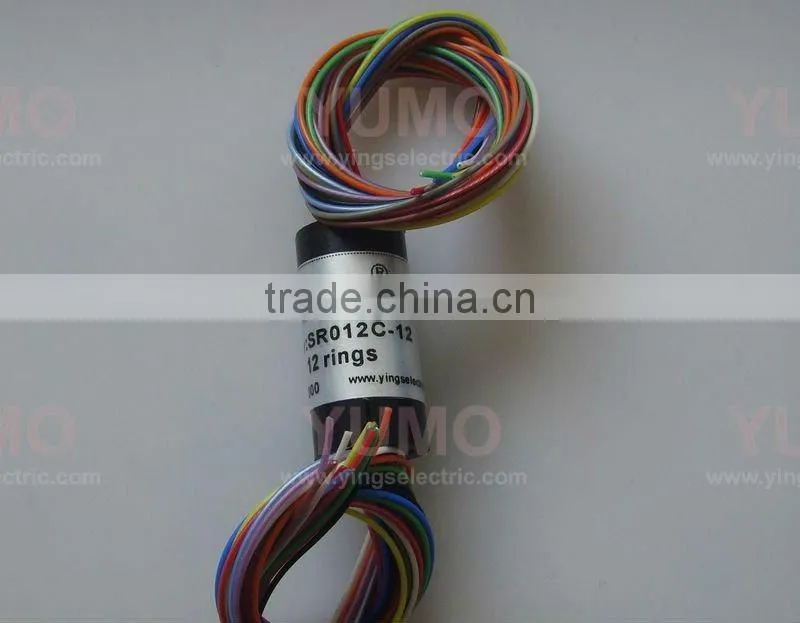

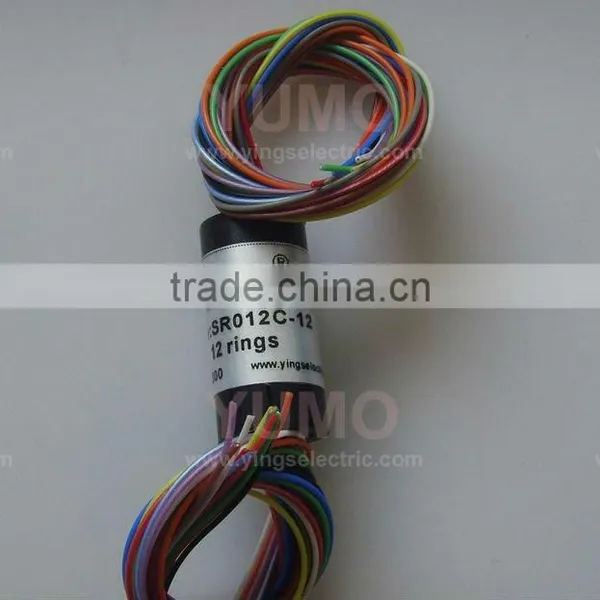

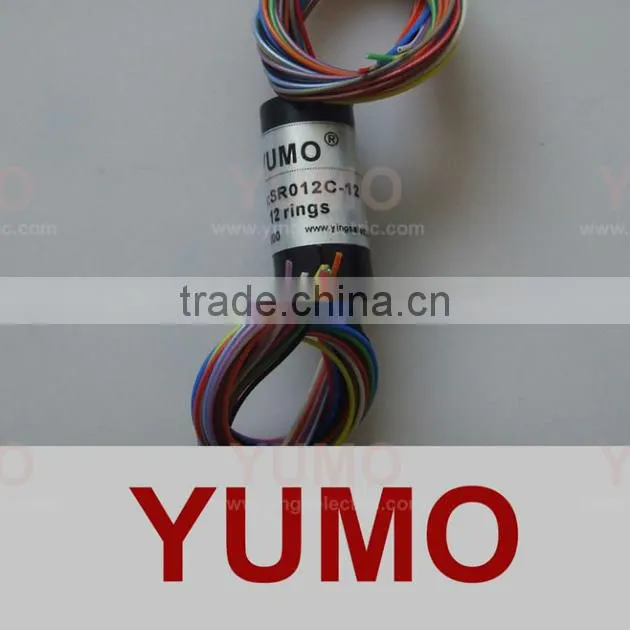

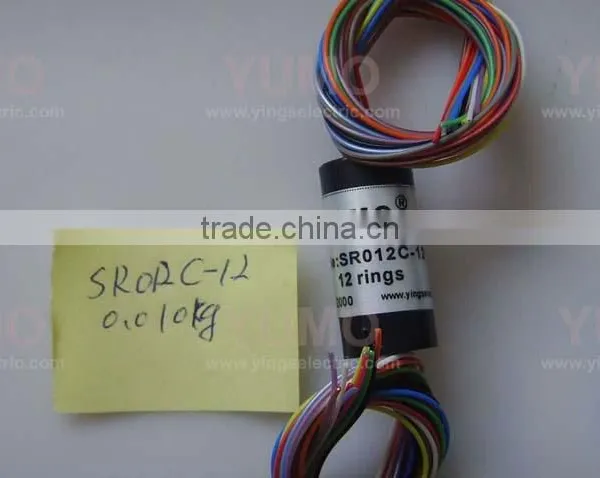

SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring
SR012C-12 12rings slip ring
Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,collecting ring,collector,ring,capsule slip ring,alternator slip rings,through bore slip ring,auto parts,graphite slip ring,conductive slip ring,compact, slip ring,carbon slip ring,slipring slip ring,slip hook,car alternatior slip ring,slip mat,auto alternator slip ring,ring,slip printer,slip tiles,slip hold,slip box
slip ring, Capsule slip ring SR012C-12 12rings
SR012 SERIES
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
Computer peripherals
*Display equipment Medical equipment
Type
(A Model) SR012A
(A1 Model) SR012A1
(A2 Model) SR012A2
(C Model) SR012C
Specification List
Type | #Rings | D1A *LG |
SR012-6 | 6 | Φ12.5*17 |
SR012-12 | 12 | Φ12.5*17 |
Electric data
Specification | Unit |
Voltage | 240VDC-240VAC |
Current | 2A/ring |
Lead size | Colour coded FPE insulated lead wires |
Standard Lead length | 250mm (other lengths on request) |
High pot | 500VAC@60HZ, 60s |
Insulation Resistance | 1000MΩ/500VDC |
Dynamic contact Resistance | 0.01Ω |
Mechanical data
Specification | Unit |
Operate Speed | 250 rpm |
Temperature range | -20 - + 80 |
Contact material surface | Gold - gold |
The steel bearing | The precise small steel ball bearing |
The life of the slip ring is decided by the rotating speed, working environment and temperature.
Manufacture slip ring according to customers request, we also welcome OEM to join us.
SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring SR012C-12 12rings SR series YUMO carbon brushes alternator slip ring motor made in china capsule slip ring
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
