SR1254-6S Through bore slip ring

Specifications

SR1254-6S Through bore slip ring
Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,col

 Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,collecting ring,collector,ring,capsule slip ring,alternator slip rings,through bore slip ring,auto parts,graphite slip ring,conductive slip ring,compact, slip ring,carbon slip ring,slipring slip ring,slip hook,car  alternatior slip ring,slip mat,auto alternator slip ring,ring,slip printer,slip tiles,slip hold,slip box



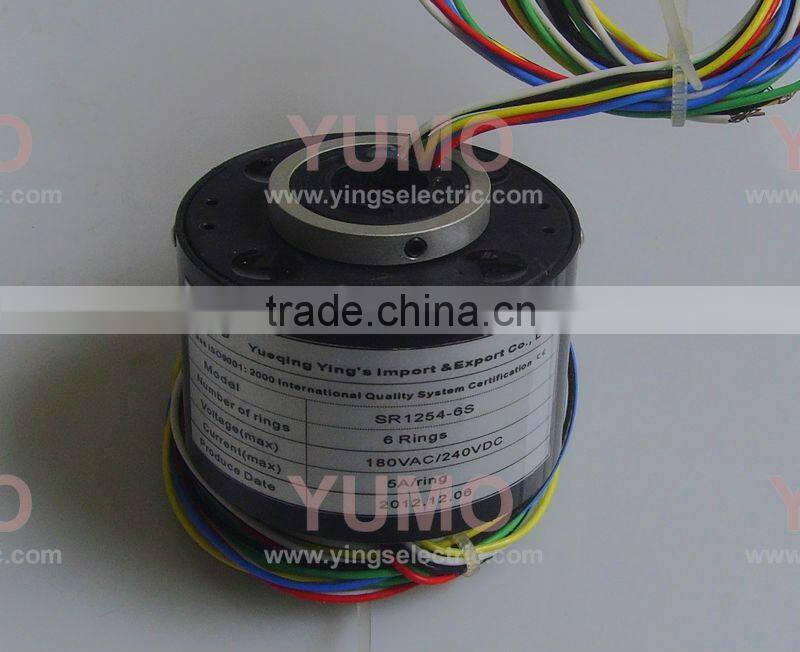

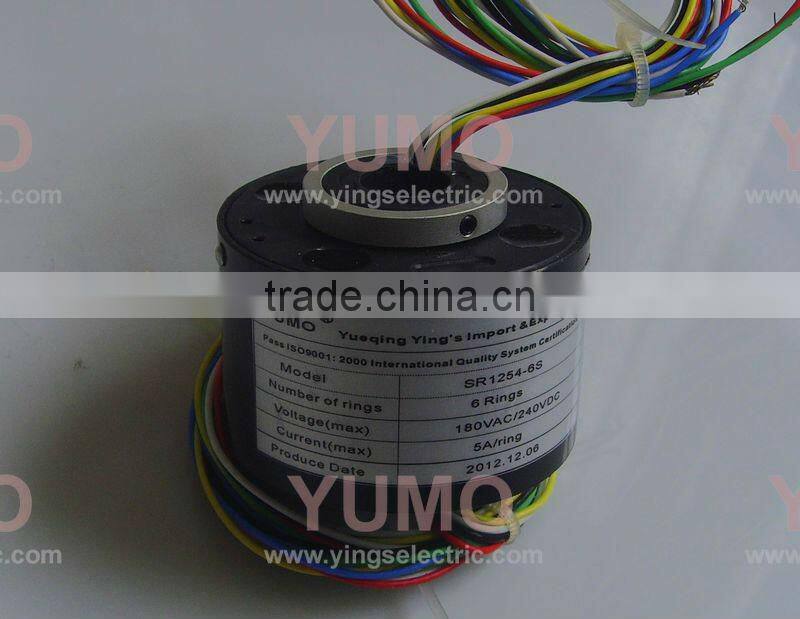

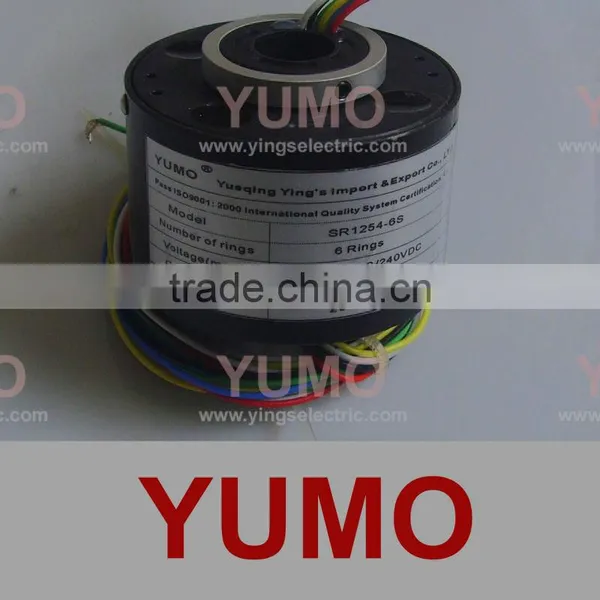

SR1254-6S Through bore slip ring

Through-Bore dia.1/2(12.7mm)

*Make use of advanced sheaf brush technology to design and manufacture

*Suffice 360° unrestrained continuous rotation in transmitting power and/or data

*Product modularize

*Long life and maintenance-free operation

Applications

*Industrial machine: processing center, revolving stage

*Heavy equipment, platform, cable coil, testing equipment

*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment

Type instruction

SR   1254   -   12

12-unmber of rings

12-in Φ 12.7mm

54-out Φ 54mm

SR-Slipring

Electric data

Specification	Unit
Rings	6121824
Current value	5A/loop
Voltage	600VAC/240VDC
Lead type	Colour coded, silver plated, PTFE insulated lead wires
Lead length	500mm (other lengths on request)
Dielectric strength	500VAC @ 50Hz
Insulation Resistance	≥1000MΩ/500VDC
Dynamic contact Resistance	≤0.01Ω



Mechanical data

Specification	Unit
Operate Speed	0-600rpm
Contact material	Gold or silver alloy
Bearing	Steel ball bearing
Housing	ABS Engineering plastics
Temperature range	-40 to 80
IP	IP 51- IP 65

The life of the slip ring is decided by the rotating speed, working environment and temperature.



Column Length=L
Rings	L	Model
6	34mm	SR1254-6
12	47mm	SR1254-12
18	62mm	SR1254-18
24	76mm	SR1254-24

To compare with the actual size, the tolerance of length is + 1mm



Rotor lead exit

Stator lead exit



Manufacture slip ring according to customers request, we also welcome OEM to join us.
