SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring

SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring thumbnail-1
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring thumbnail-2
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring thumbnail-3
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring thumbnail-4
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring thumbnail-5

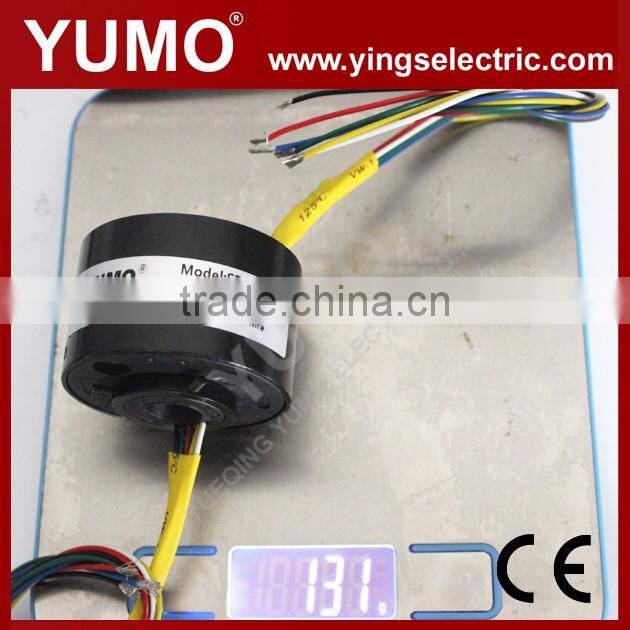

SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring photo-1

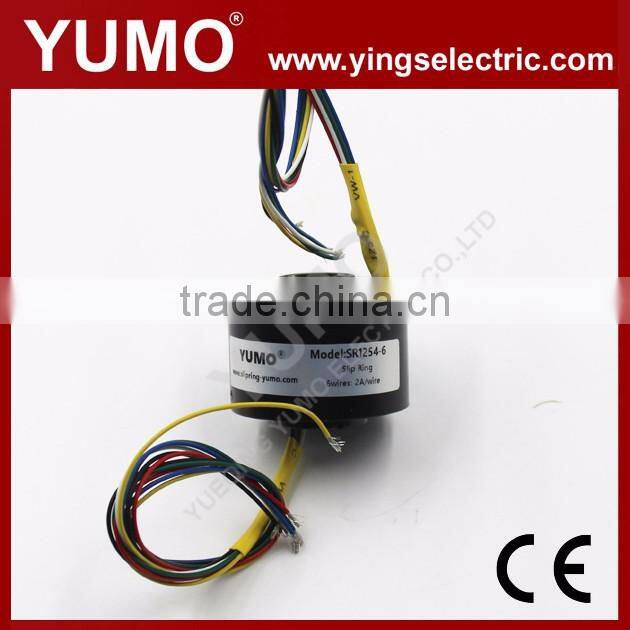

SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring photo-2
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring photo-3
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring photo-4
SR1254-6 6wires OD 54mm Bore Size 12mm Through Bore Slip Ring photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
SR1254
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number SR1254

 SR1254-6 6wires 54mm bore size 12mm through bore slip ring



Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,collecting ring,collector,ring,capsule slip ring,alternator slip rings,through bore slip ring,auto parts,graphite slip ring,conductive slip ring,compact, slip ring,carbon slip ring,slipring slip ring,slip hook,car  alternatior slip ring,slip mat,auto alternator slip ring,ring,slip printer,slip tiles,slip hold,slip box



Product Description



SR1254 SERIES

Through-Bore dia.1/2(12.7mm)

*Make use of advanced sheaf brush technology to design and manufacture

*Suffice 360° unrestrained continuous rotation in transmitting power and/or data

*Product modularize

*Long life and maintenance-free operation

Applications

*Industrial machine: processing center, revolving stage

*Heavy equipment, platform, cable coil, testing equipment

*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment

Type instruction

SR   1254   -   12

12-unmber of rings

12-in Φ 12.7mm

54-out Φ 54mm

SR-Slipring

Electric data

Specification

Unit

Rings

6121824

Current value

5A/loop

Voltage

600VAC/240VDC

Lead type

Colour coded, silver plated, PTFE insulated lead wires

Lead length

500mm (other lengths on request)

Dielectric strength

500VAC @ 50Hz

Insulation Resistance

≥1000MΩ/500VDC

Dynamic contact Resistance

≤0.01Ω



Mechanical data

Specification

Unit

Operate Speed

0-600rpm

Contact material

Gold or silver alloy

Bearing

Steel ball bearing

Housing

ABS Engineering plastics

Temperature range

-40 to 80

IP

IP 51- IP 65

The life of the slip ring is decided by the rotating speed, working environment and temperature.



Column Length=L

Rings

L

Model

6

34mm

SR1254-6

12

47mm

SR1254-12

18

62mm

SR1254-18

24

76mm

SR1254-24

To compare with the actual size, the tolerance of length is + 1mm



Rotor lead exit

Stator lead exit



Manufacture slip ring according to customers request, we also welcome OEM to join us.
