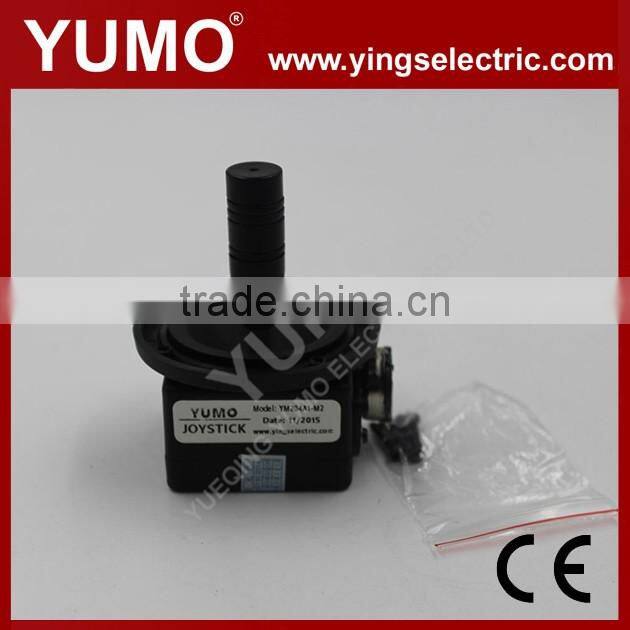

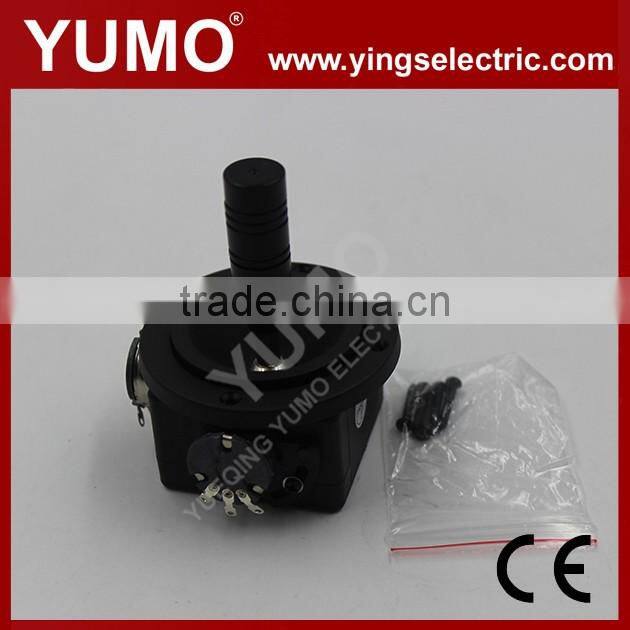

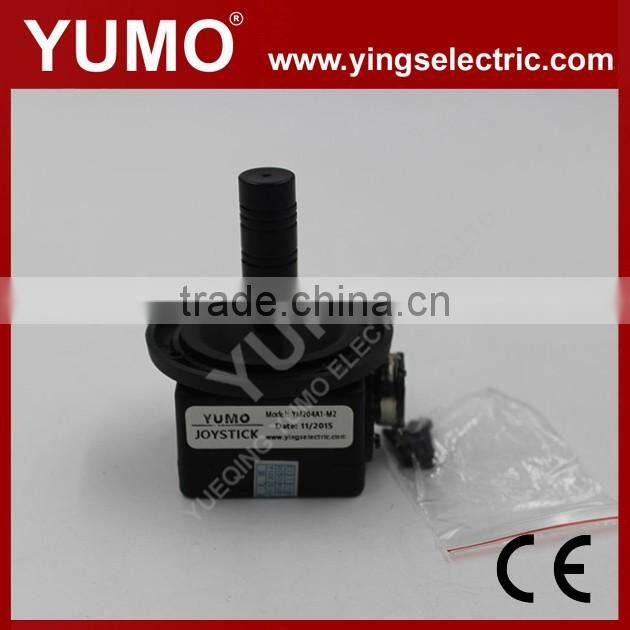

YM204A1-M2 MOTER mechanical JOYSTICK industrial joystick 2-axis joystick
Model: YM204A1-M2
Resistance Value: standard 5KΩ or 10 KΩ on request
Resistance Tolerance: ±20%
Independent Linearity: ±1 %
Resolution: Essentially infinite
Temperature Coefficient Resistance: ±400 ppm/
Output Smoothness: 0.5 % maximum
X And Y Axis Electricity Corner: ±25°P-30°
Insulation Resistance: 50 MΩ@ 500 VDC,60 sec.
Main pivot ball: precision ground stainless steel
Stick shaft: φ5mm
Operate Torque: X and Y axis 440gf,Z axis 880gf
Restoration Error Rate: ±1%
Prolepsis Mechanical Lifecycle: 500,000 cycle
Operating Temperature Range: -10 - 80
YM204A1-M2 MOTER mechanical JOYSTICK industrial joystick 2-axis joystick YM204A1-M2 MOTER mechanical JOYSTICK industrial joystick 2-axis joystick YM204A1-M2 MOTER mechanical JOYSTICK industrial joystick 2-axis joystick
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
