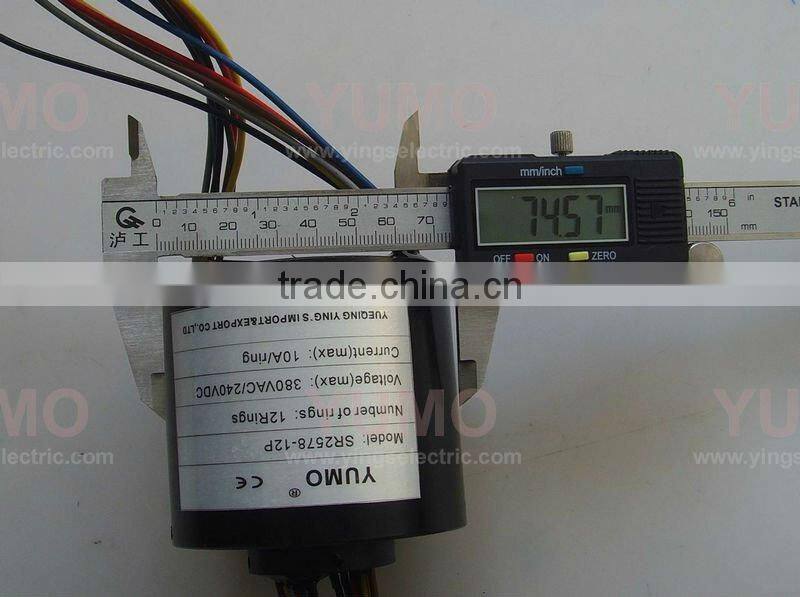

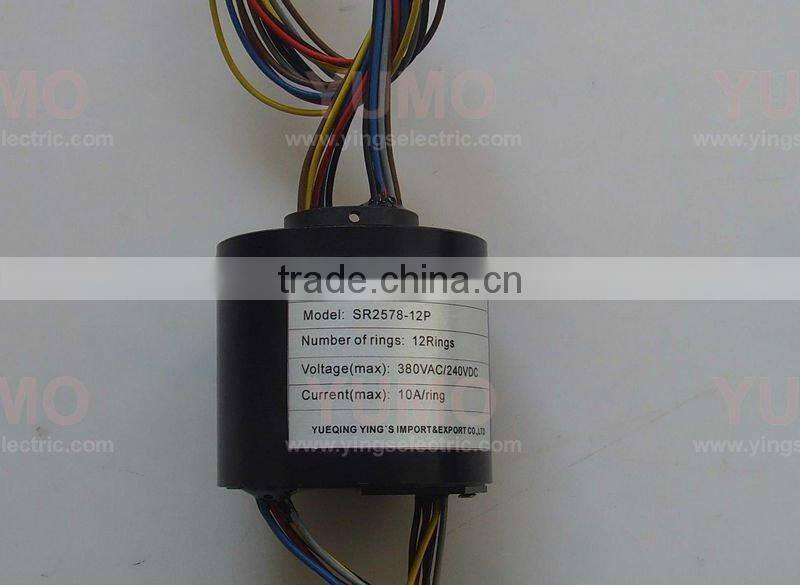

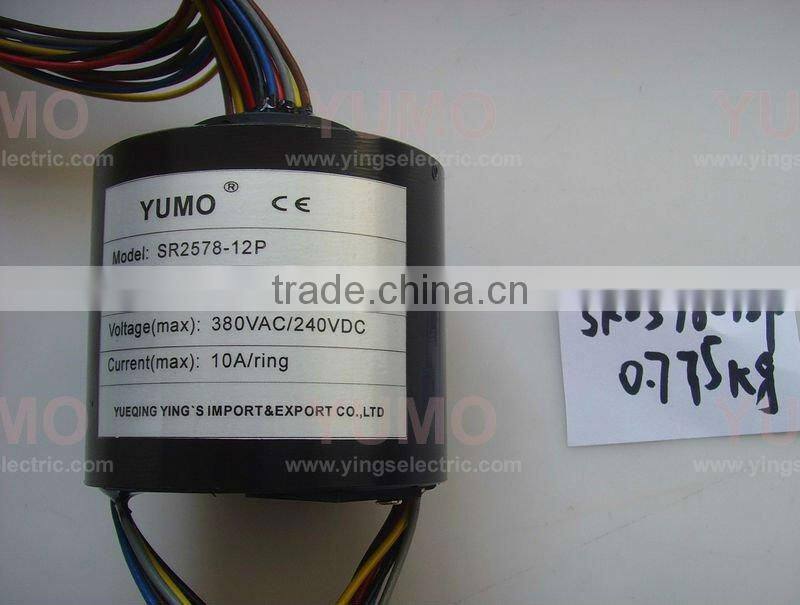

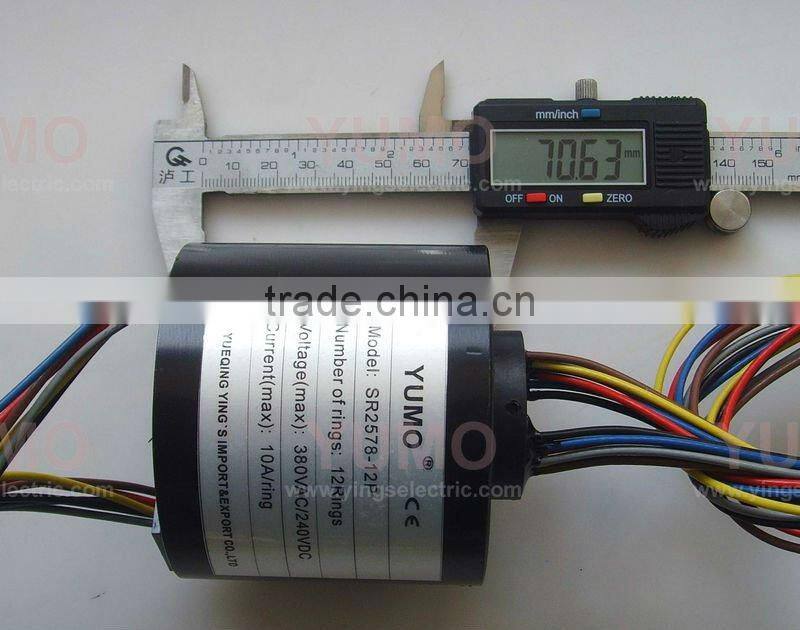

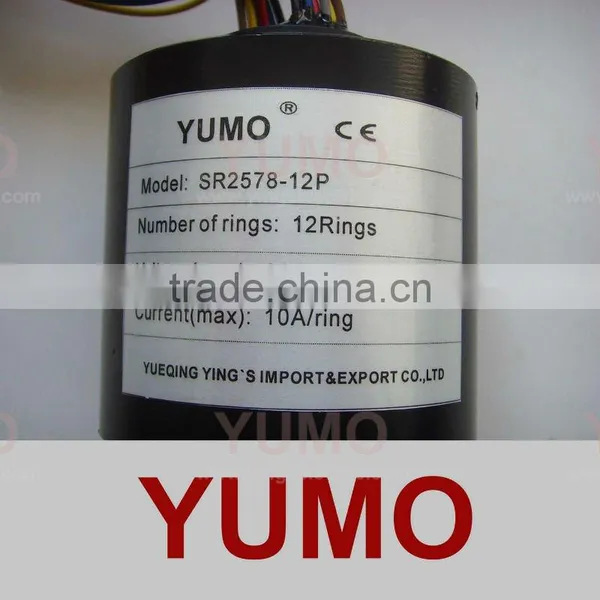

SR2578-12P Through Bore Slip Ring 12rings
- 10000 Piece / Pieces per Month
- Shanghai
- Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | SR2578-12P |
Product Description
Specifications
SR2578-12P Through Bore Slip Ring 12ringsSR2578-12PThrough Bore Slip Ring 12rings
Slip Ring,rotary electrical interface,commutator,collector, swivel,electrical rotary joint,collecting ring,collector,ring,capsule slip ring,alternator slip rings,through bore slip ring,auto parts,graphite slip ring,conductive slip ring,compact, slip ring,carbon slip ring,slipring slip ring,slip hook,car alternatior slip ring,slip mat,auto alternator slip ring,ring,slip printer,slip tiles,slip hold,slip box
SR2578 SERIES
Through-Bore dia.1/2(12.7mm)
*Make use of advanced sheaf brush technology to design and manufacture
*Suffice 360° unrestrained continuous rotation in transmitting power and/or data
*Product modularize
*Long life and maintenance-free operation
Applications
*Industrial machine: processing center, revolving sg
*Heavy equipment, platform, cable coil, testing equipment
*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment
Type instruction
SR 2578 - 6P/12S
12S-unmber of rings
6P-unmber of power rings
38-in Φ38.1 mm
54-out Φ78 mm
SR-Slipring
Electric data
Specification | Unit |
Voltage | 600V |
Lead type | Tinning wires, Colour coded |
Lead length | 500mm (other lengths on request) |
Insulation Resistance | ≥1000MΩ/500VDC |
Dynamic contact Resistance | ≤0.01Ω |
Dielectric strength | 500VAC @ 60Hz |
Mechanical data
Specification | Unit |
Operate Speed | 0-1200 rpm continuous |
Contact material | Gold or silver alloy |
Bearing | Steel ball bearing |
Housing | ABS Engineering plastics |
Temperature range | -40 to 80 |
IP | IP 51- IP 65 |
The life of the slip ring is decided by the rotating speed, working environment and temperature.
Model | L=mm | Current | rings | |
Power (10A) | Signal (2A) | |||
SR2578-6P | 55 | 6 |
| 6 |
SR2578-12S | 55 |
| 12 | 12 |
|
|
|
|
|
SR2578-12P | 79 | 12 |
| 12 |
SR2578-6P/12S | 79 | 6 | 12 | 18 |
SR2578-24S | 79 |
| 24 | 24 |
|
|
|
|
|
SR2578-18P | 103 | 18 |
| 18 |
SR2578-12P/12S | 103 | 12 | 12 | 24 |
SR2578-6P/24S | 103 | 6 | 24 | 30 |
SR2578-36S | 103 |
| 36 | 36 |
|
|
|
|
|
SR2578-24P | 127 | 24 |
| 24 |
SR2578-18P/12S | 127 | 18 | 12 | 30 |
SR2578-12P/24S | 127 | 12 | 24 | 36 |
SR2578-6P/36S | 127 | 6 | 36 | 42 |
SR2578-48S | 127 |
| 48 | 48 |
To compare with the actual size, the tolerance of length is + 1mm
Rotor lead exit
Stator lead exit
Manufacture slip ring according to customers request, we also welcome OEM to join us.
Important Information about slip ring Conditions
1. All of the slip ring are brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by L/C, Western Union,TT,PayPal.
-Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The slip ring are guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
YUEQING YING'S IMPORT & EXPORT CO.,LTD
ADD:ROOM 601,NO.126 LIUYANG ROAD,CHAOYANG VILLAGE,LIUSHI TOWN,YUEQING CITY,
ZHEJIANG PROVINCE, 325604 CHINA
TEL: 0086-577-62791815 FAX: 0086-577-62791825 Mobile:0086-13757779011
Skype:benjaminying TradeManager:yncync
