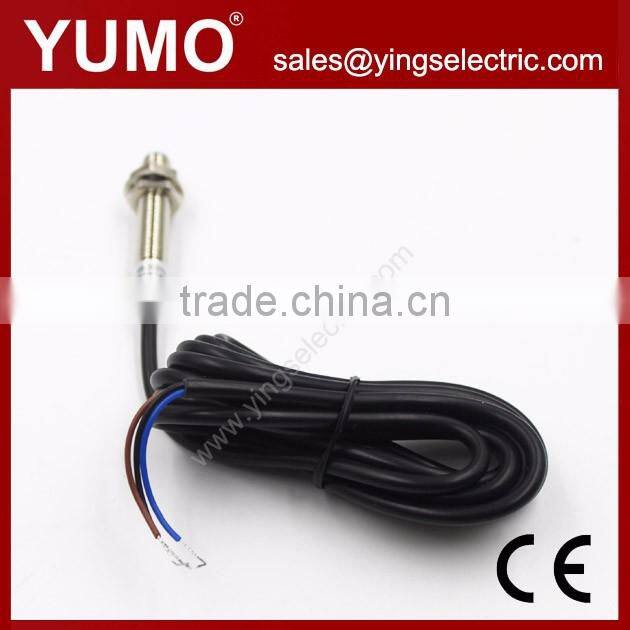

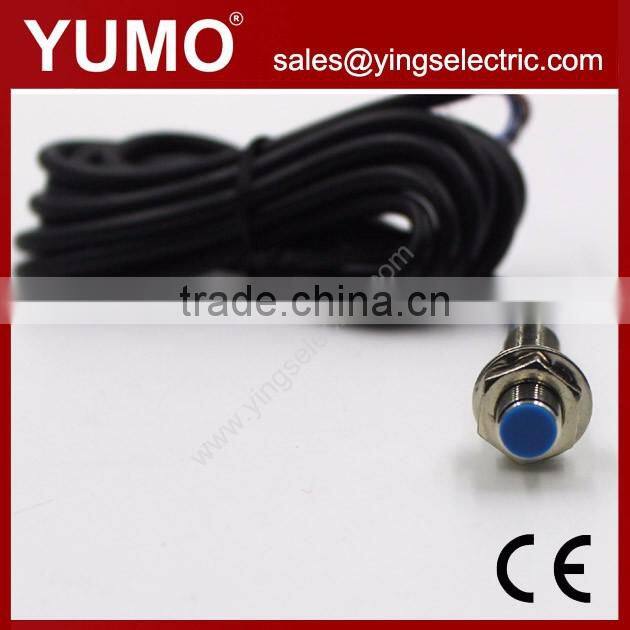

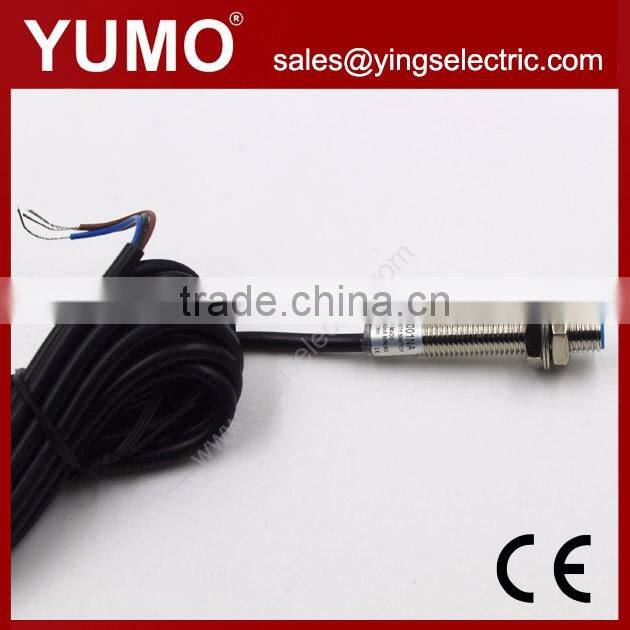

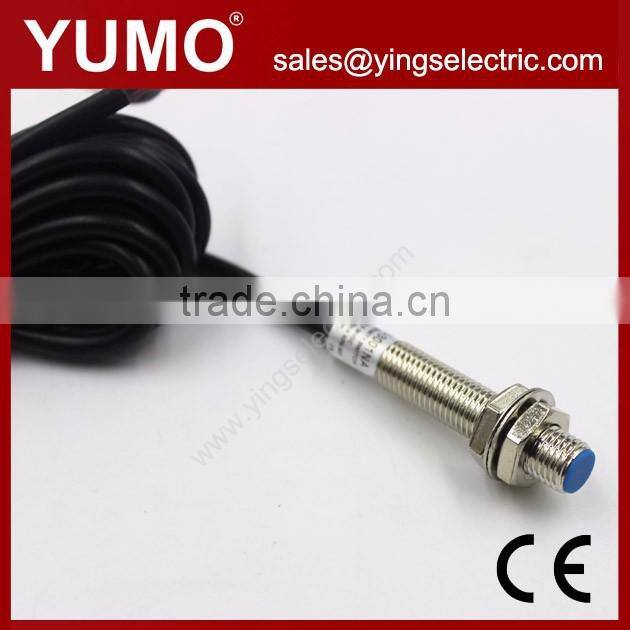

LM8-3001NA M8 sensing distance 1mm NPN NO inductive proximity switch sensor
linder inductive
| M8 inductive proximity sensor | ||||||
| Detecting rang1mm | YUMO part no. | other part no. | Omron part no. | |||
| Flush | DC | NPN | NO | LM8-3001NA | LJ8A3-1-Z/BX | E2E-X1R5E1 |
| 6~ 36V | NC | LM8-3001NB | LJ8A3-1-Z/AX | E2E-X1R5E2 | ||
| NO+NC | - | - | ||||
| PNP | NO | LM8-3001PA | LJ8A3-1-Z/BY | E2E-X1R5F1 | ||
| NC | LM8-3001PB | LJ8A3-1-Z/AY | E2E-X1R5F2 | |||
| NO+NC | - | - | ||||
| 2 Wires | NO | LM8-3001LA | LJ8A3-1-Z/EX | |||
| NC | LM8-3001LB | LJ8A3-1-Z/DX | ||||
| AC | SCR | NO | LM8-2001A | LJ8A3-1-J/EZ | E2E-X1R5Y1 | |
| NC | LM8-2001B | LJ8A3-1-J/DZ | E2E-X1R5Y2 | |||
| NO+NC | ||||||
| Relay output | ||||||
| Detecting rang1.5/2mm | ||||||
| Non-flush | DC | NPN | NO | LM8-3002NA | LJ8A3-2-Z/BX | E2E-X2ME1 |
| 6~ 36V | NC | LM8-3002NB | LJ8A3-2-Z/AX | E2E-X2ME2 | ||
| NO+NC | - | |||||
| PNP | NO | LM8-3002PA | LJ8A3-2-Z/BY | E2E-X2MF1 | ||
| NC | LM8-3002PB | LJ8A3-2-Z/AY | E2E-X2MF2 | |||
| NO+NC | - | |||||
| 2 Wires | NO | LM8-3002LA | LJ8A3-2-Z/EX | E2E-X1D1 | ||
| NC | LM8-3002LB | LJ8A3-2-Z/DX | E2E-X2MD1 | |||
| AC | SCR | NO | LM8-2002A | LJ8A3-2-J/EZ | E2E-X2MY1 | |
| NC | LM8-2002B | LJ8A3-2-J/DZ | E2E-X2MY2 | |||
| 90~250V | NO+NC | |||||
| Relay output | ||||||
| Sensor Characteristics | ||||||
| Output current | DC | 150mA | ||||
| SCR/relay | ||||||
| Output voltage drop | DC(NPN;PNP) <3V;2wires type:<3.9V;AC type: AC <10V | |||||
| Consumption current | DC(NPN;PNP) DC 12V 8mA;24V15mA;AC type: AC <10mA | |||||
| Standard detected object | 8×8×1(A3 Iron) | |||||
| Repeated precision | 0.01 | |||||
| Response Frequency | 500Hz/25Hz | |||||
| Working environment temperature | -25C ~+75C | |||||
| Insulation resistance | ≥50MΩ | |||||
| Shell material | Metal | |||||
| Protection grade | IP67 | |||||
| Alternative model | E2E-X1R5** | |||||
