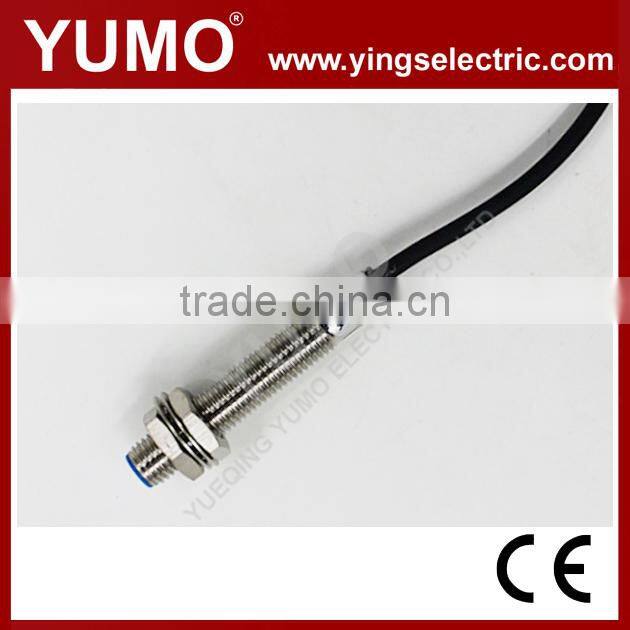

M8 LM8-3001LA Cylinder Inductive Proximity Switch Sensing Range 1mm 2 Wires Flush NO 6-36VDC

M8 LM8-3001LA Cylinder Inductive Proximity Switch Sensing Range 1mm 2 Wires Flush NO 6-36VDC thumbnail-1
M8 LM8-3001LA Cylinder Inductive Proximity Switch Sensing Range 1mm 2 Wires Flush NO 6-36VDC photo-1
US$ 2 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
LJ8A3-1-Z/EX
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number LJ8A3-1-Z/EX
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

M8 LM8-3001LA Cylinder inductive proximity switch  sensing range 1mm 2 wires flush NO 6-36VDC



Product Description

 M8 LM8-3001LA Cylinder inductive proximity switch sensing range 1mm 2 wires flush NO 6-36VDC



M8 Inductive proximity sesnor Specification
Detection distance 1mm Model No. Other model no. Replaced model no.
Flush DC   NPN NO LJ8A3-1-Z/BX LM8-3001NA E2E-X1R5E1
6~ 36V  NC LJ8A3-1-Z/AX LM8-3001NB E2E-X1R5E2
  NO+NC - -
    PNP NO LJ8A3-1-Z/BY LM8-3001PA E2E-X1R5F1
  NC LJ8A3-1-Z/AY LM8-3001PB E2E-X1R5F2
  NO+NC - -
   2 wires system NO LJ8A3-1-Z/EX LM8-3001LA
  NC LJ8A3-1-Z/DX LM8-3001LB
AC SCR NO LJ8A3-1-J/EZ LM8-2001A E2E-X1R5Y1
Silicon Controlled Rectifier NC LJ8A3-1-J/DZ LM8-2001B E2E-X1R5Y2
  NO+NC
Relay output

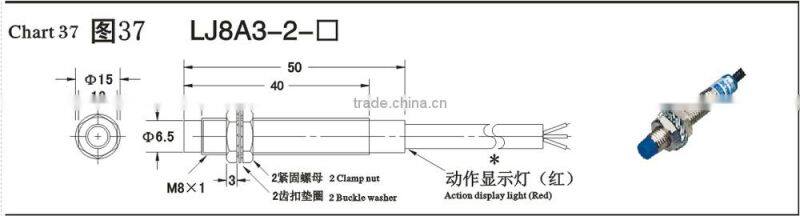

Detection distance 1.5/2mm
Non-flush DC NPN NO LJ8A3-2-Z/BX LM8-3002NA E2E-X2ME1
6~ 36V  NC LJ8A3-2-Z/AX LM8-3002NB E2E-X2ME2
  NO+NC   -
  PNP NO LJ8A3-2-Z/BY LM8-3002PA E2E-X2MF1
  NC LJ8A3-2-Z/AY LM8-3002PB E2E-X2MF2
  NO+NC   -
   2 wires system NO LJ8A3-2-Z/EX LM8-3002LA E2E-X1D1
  NC LJ8A3-2-Z/DX LM8-3002LB E2E-X2MD1
AC SCR NO LJ8A3-2-J/EZ LM8-2002A E2E-X2MY1
  Silicon Controlled Rectifier NC LJ8A3-2-J/DZ LM8-2002B E2E-X2MY2
90~250V   NO+NC
  Relay output
Product feature
Output current DC 150mA
SCR/Relay
Output voltage drop DC/AC DC(NPN,PNP) <3V,2wires:<3.9VDC, <10VAC
Consumption current DC(NPN,PNP) DC 12V 8mA, 24V 15mA AC1
Standard detected object 8×8×1(A3 Iron)
Repeated precision 0.01
Response frequency 500Hz/25Hz
Working environment temperature  -25C ~+75C
Insulation resistance ≥50MΩ
Shell material  Metal
Protection Grade IP67
Alternative model E2E-X1R5**



 M8 LM8-3001LA Cylinder inductive proximity switch sensing range 1mm 2 wires flush NO 6-36VDC

8A M8 LJ8A3-1-Z/EX Cylinder inductive proximity switch  sensing range 1mm 2 wires flush NO 6-36VDC M8 LJ8A3-1-Z/EX Cylinder inductive proximity switch  sensing range 1mm 2 wires flush NO 6-36VDC M8 LJ8A3-1-Z/EX Cylinder inductive proximity switch  sensing range 1mm 2 wires flush NO 6-36VDC M8 LJ8A3-1-Z/EX Cylinder inductive proximity switch  sensing range 1mm 2 wires flush NO 6-36VDC P NO 6-36VDC
