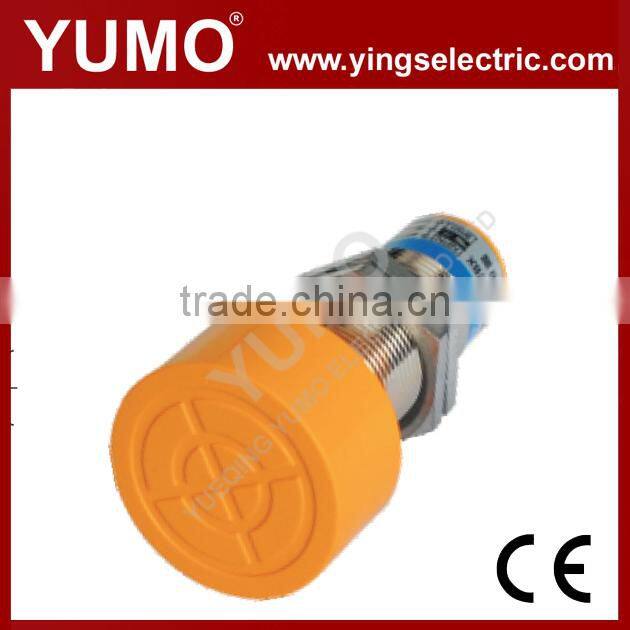

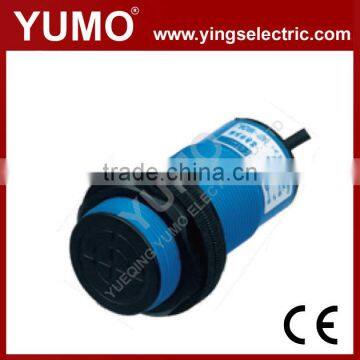

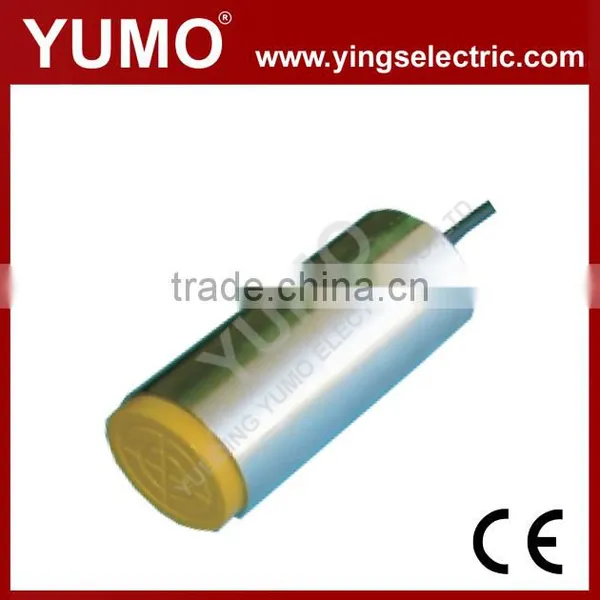

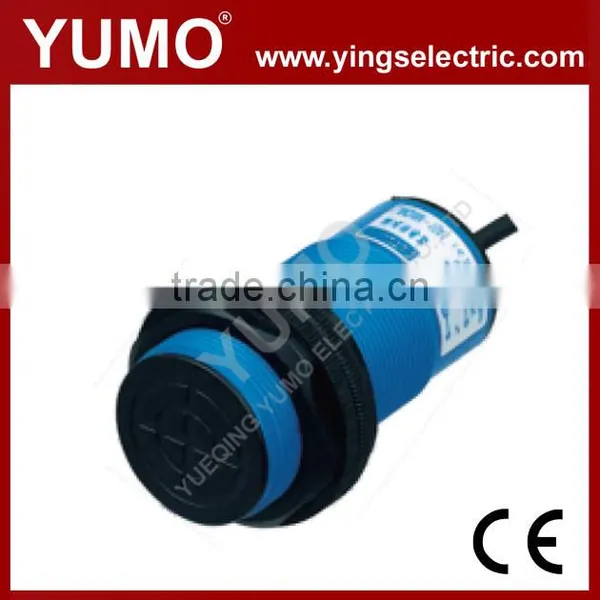

M30 LM40-3020PA Unshielded PNP NO contact Detection Distance 20mm ABS General Cylindrical Inductive Proximity Switch Sensor

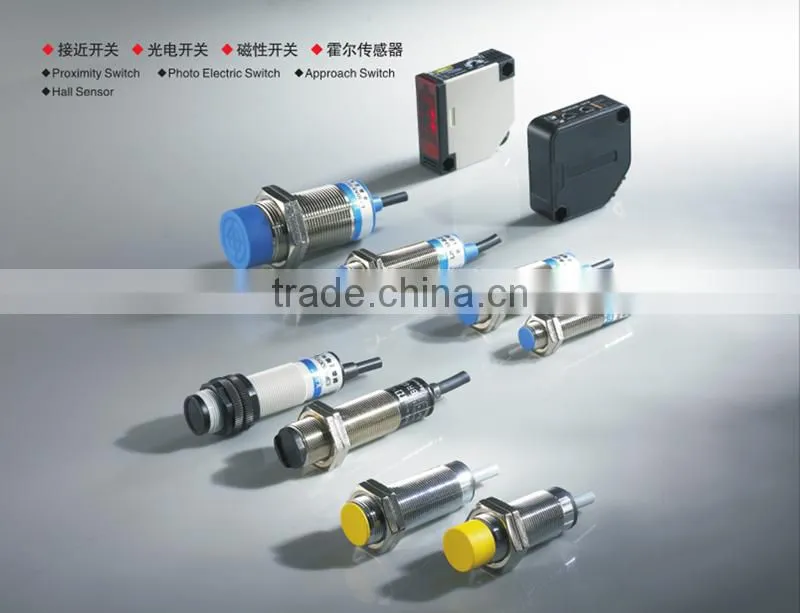

Proximity switch also called proximity sensors . Sensor can devided into inductive type , capacitive type , simulative type , hall type, magnetic type . Sensor can support using of PLC programmable controller ,SMC , Sr circuit ,Electronic counters, Solid-state relay ,Small relays and other products .
Capacitive proximity switch are composed by High frequency concussion and amplification. Sensor detection surface and between the earth from a capacitor participate Oscillation circuit work , starting at the stop vibration state . When the object near the surface , the Circuit capacity changes , is the Oscillation of high-frequency oscillator . The two states of Oscillator-Oscillations and stopping vibration , Converted to electrical signals through the shaping amplifier switch into binary signals .
Simulative sensor (also known as the linear displacement sensor ),when the metal object close to the detection surface . With the change of the distance , then output the signal which have linear relationship changes with the distance ,So as to achieve the purpose of monitoring .
Hall sensor is kind of proximity sensor which inside with Hall IC.Using Hall effection convert magnetic signal on or off into switch capacity . Widely used in signal detection , automatic control and safety protection .
Magnetic sensor are composed by reed tube and amplification. When the external magnetic field near the magnetic reed sensor to force the action , and then amplified by the amplifier , increasing the switching capacity , in order to realize the on-off control of external circuits .

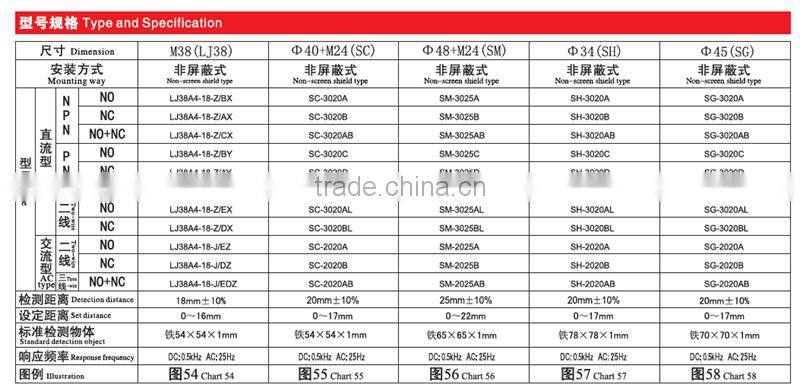

| Model | replace model | ||||
| Detection Distance 20mm | |||||
| Unshielded | DC | NPN | NO | SC-3020A | LM40-3020NA |
| NC | SC-3020B | LM40-3020NB | |||
| NO+NC | SC-3020AB | LM40-3020NC | |||
| PNP | NO | SC-3020C | LM40-3020PA | ||
| NC | SC-3020D | LM40-3020PB | |||
| NO+NC | SC-3020CD | LM40-3020PC | |||
| Two-wire | NO | SC-3020AL | LM40-3020LA | ||
| NC | SC-3020BL | LM40-3020LB | |||
| AC | SCR | NO | SC-2020A | LM40-2020A | |
| (controlled silicon ) | NC | SC-2020B | LM40-2020B | ||
| NO+NC | SC-2020AB | LM40-2020C | |||
| relay output | |||||
| output current | DC | 200mA | |||
| SCR/relay | 300mA/1A | ||||
| Voltage output | DC(NPN,PNP)type < 3V ,two-wire:<3.9V,AC 10V | ||||
| Current Consumption | DC(NPN,PNP)type DC 12V 8mA,24V 15mA,AC 10mA | ||||
| Standard Detection Object | 54×54×1(A3 Iron) | ||||
| Response Frequency | 200Hz/25Hz | ||||
| Ambient Temperature | Temp range -25-+75°C | ||||
| Insulation Resistance | 50MΩ | ||||
| Material | ABS | ||||
| Protection Grade | IP67 | ||||
