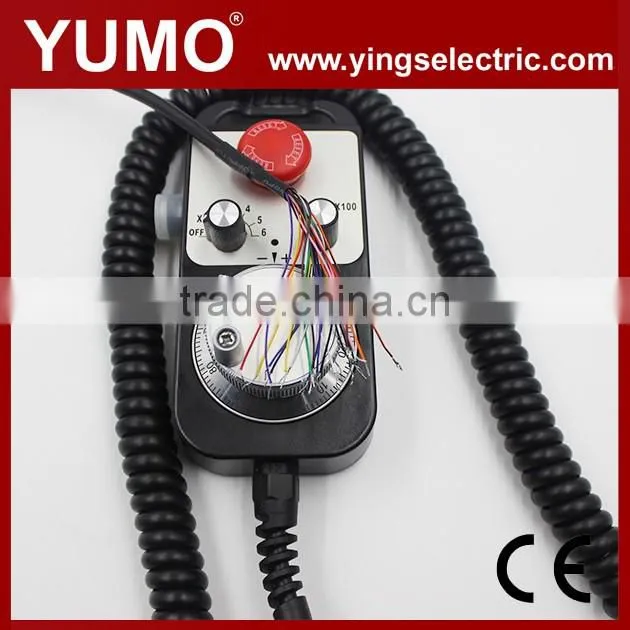

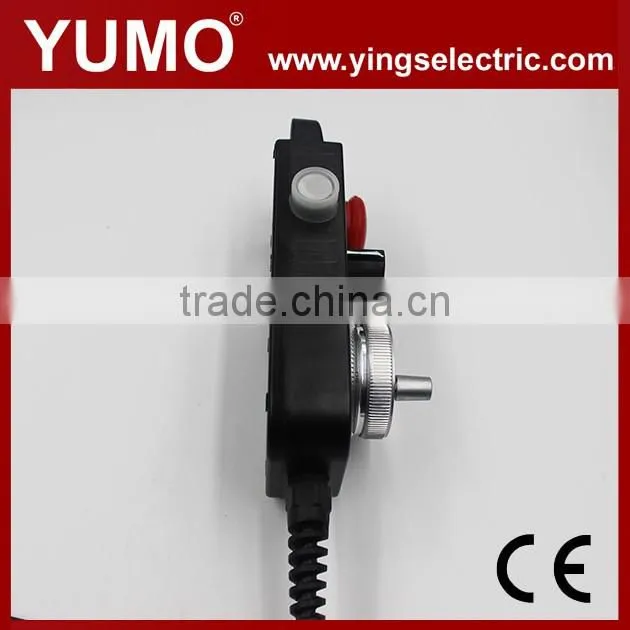

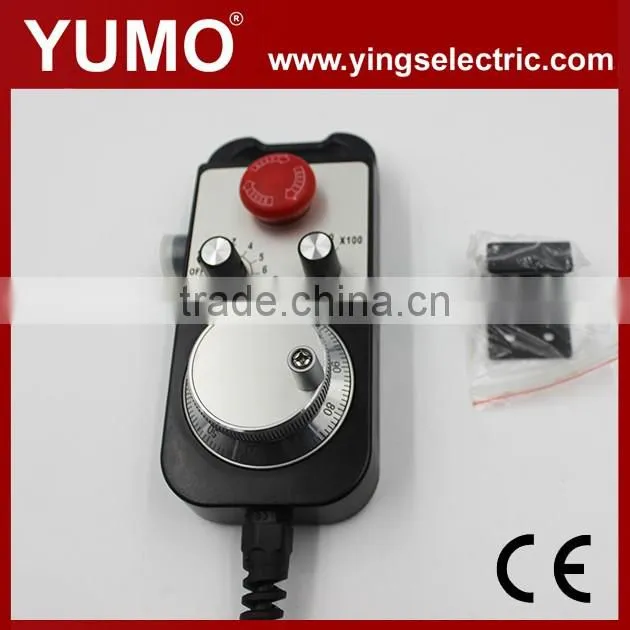

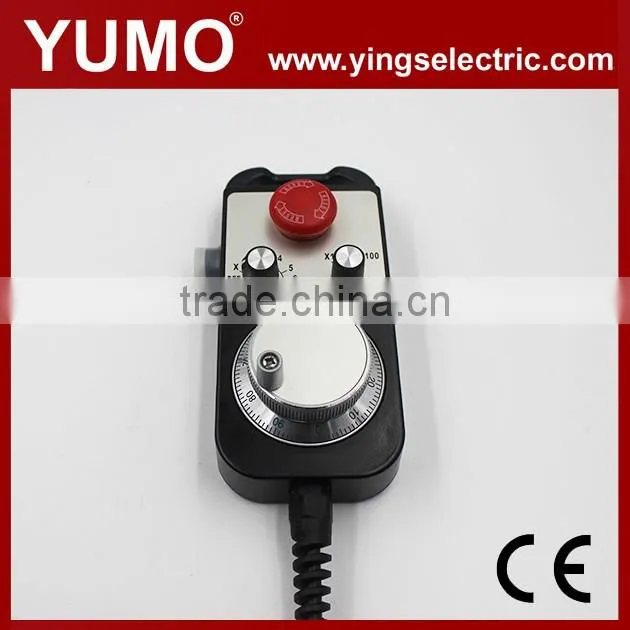

YUMO MPG ISMM1474-01G-100B-5L Handy encoder / Manual Pulse Generator CNC Handwheel MPG
Suitable for manual pulse input type such as NC or Milling machinery
High reliability, terminal connection type
Power supply: 5V DC, 12V DC
Customer's logo is available
Application:
Industrial tooling machinery
1. ELECTRICAL SPECIFICATIONS
A). Output wave: Square wave
B). Output signals: A, B, (Line driver output A, A, B, B phase)
C). Current consumption: d100mA
D). Response Frequency: 0~20KHz
E). Output phase difference: 90*
F). Supply voltage: 5V DC, 12V DC
G). Signal level: IVHe85%Vcc, VLd0.3V
H). Number of pulses: 100 (Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage
2. MECHANICAL SPECIFICATIONS
A). Signal position: 2 kind
B). Speed without sealing: 500rmp
C). Starting torque without sealing: 2.0x 10-2~6.0x 10-2Nm (+25*C)
D). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
E). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
F). Working life: MTBFe10000h (+25*C, 2000rpm)
G). Weight: Appraisal 740g
3. ENVIRONMENTAL SPECIFICATIONS
A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -30*C~85*C
C). Working temperature: -10*C~70*C
D). Protection class: IP54
YUMO MPG ISMM1474-01G-100B-5L Handy encoder / Manual Pulse Generator CNC Handwheel MPGYUMO MPG ISMM1474-01G-100B-5L Handy encoder / Manual Pulse Generator CNC Handwheel MPGYUMO MPG ISMM1474-01G-100B-5L Handy encoder / Manual Pulse Generator CNC Handwheel MPG
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
