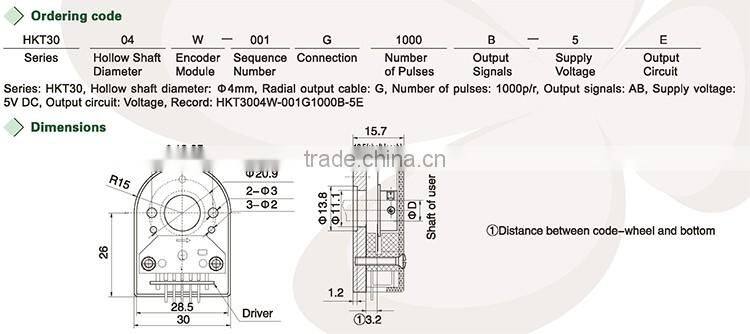

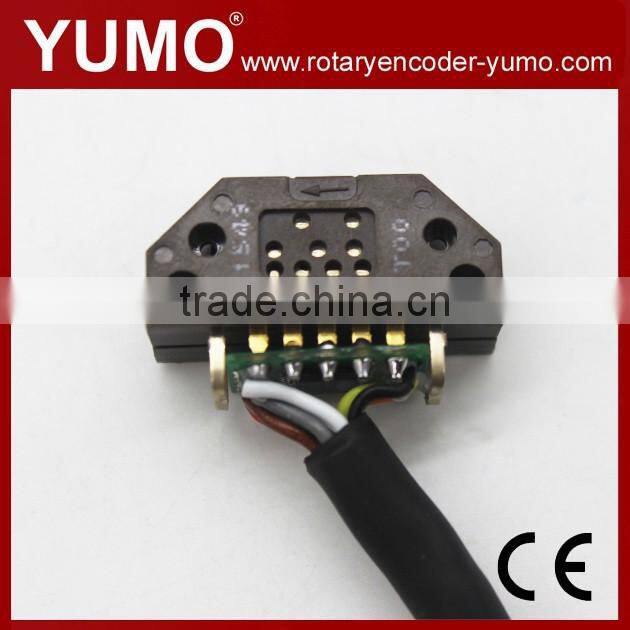

HKT3006W-001G1024ABZ-5LYUMO rotary encoder mini encoder
Industry: servo motor
Product Structure: hollow shaft
Outside diameter (mm): 30
Aperture / Shaft Diameter (mm): 4,5,6,8,10
Resolution (CPR): 100,200,256,360,400,500,1000,1024
Operating voltage: 5V
Output circuit: voltage output, open collector, line drive
| ELECTRICAL SPECIFICATIONS | |
| Output wave | Square wave |
| Output signals | A,B phase or A, B, Z phase |
| Current consumption | ≤40mA |
| Output current | 0~5mA |
| Response Frequency | 0~100KHz |
| Output phase difference | 90º±45º |
| Supply voltage | 5VDC |
| Signal level | VH≥85% Vcc, VL.≤0.3V |
| Number of pulses | 50,100,200,256,360,400,000,000 |
| (1000,1024 only have AB phase) | |
| (Other number of pulse available on request) | |
| Output circuit | Line driver, Voltage |
| MECHANICAL SPECIFICATIONS | |
| Rotor inertia of code-wheel | Appr.6.0×10-8kgm² |
| Hollow shaft diameter | ≤φ8mm |
| Shock resistance | 980M/S²,6ms, 2 times each on XYZ |
| Vibration proof | 50M/S²,10~200Hz,2 hours each on XYZ |
| Working life | MTBF≥50000h(+25℃,2000rpm) |
| Weight | Appr.20g(with 0.5 meter cable) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity | 30~85%(No condensation ) |
| Storage temperature | -40℃~110℃ |
| Working temperature | -25℃~100℃ |
| Weld temperature | ≤260℃ |
| Protection class | IP50 |
ni encoder HKT3006W-001G500B-5E YUMO rotary encoder mini encoder
