MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface)

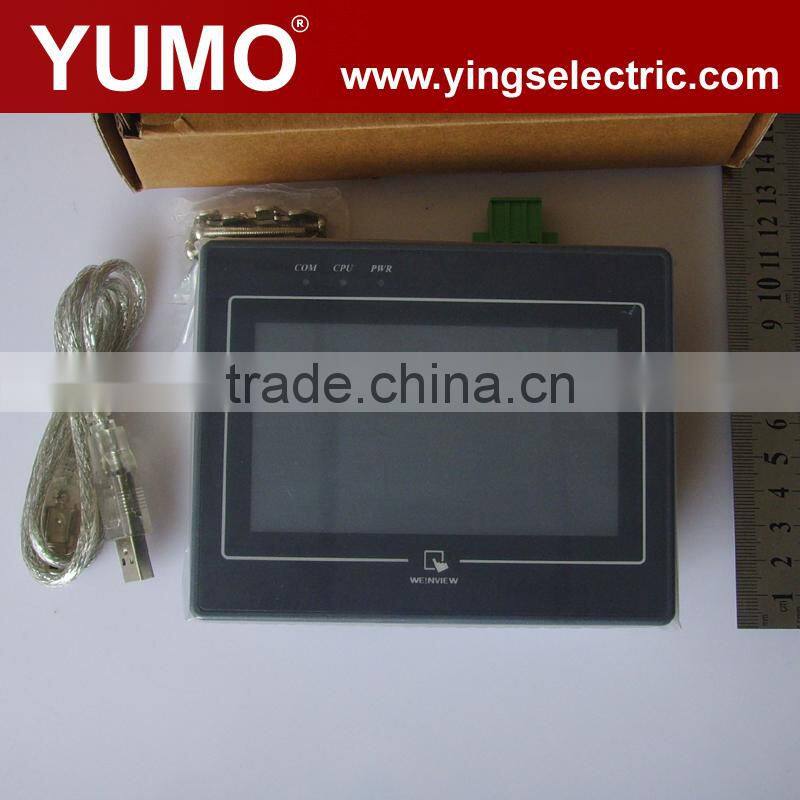

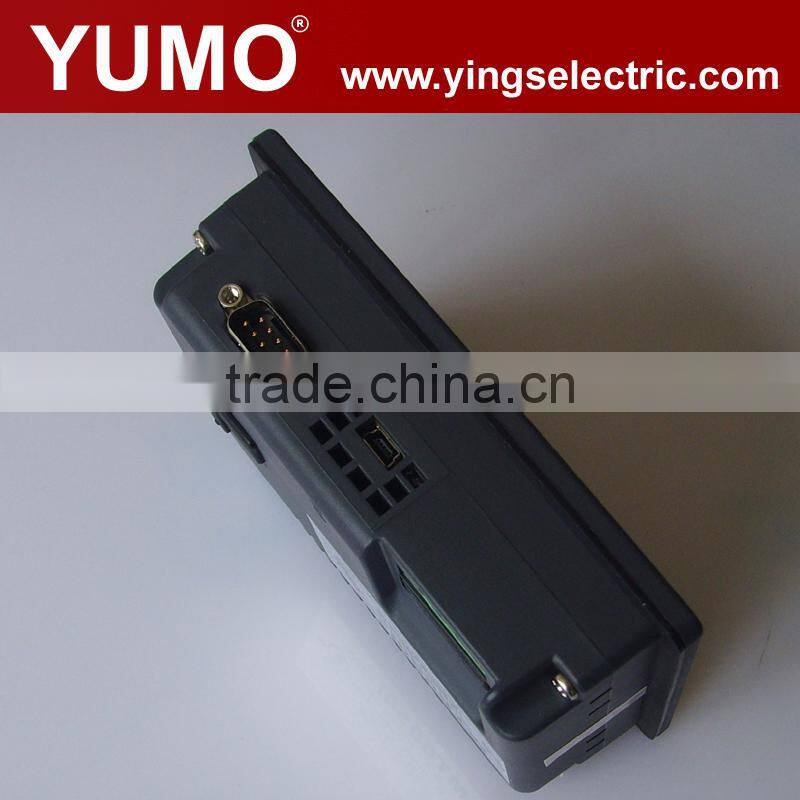

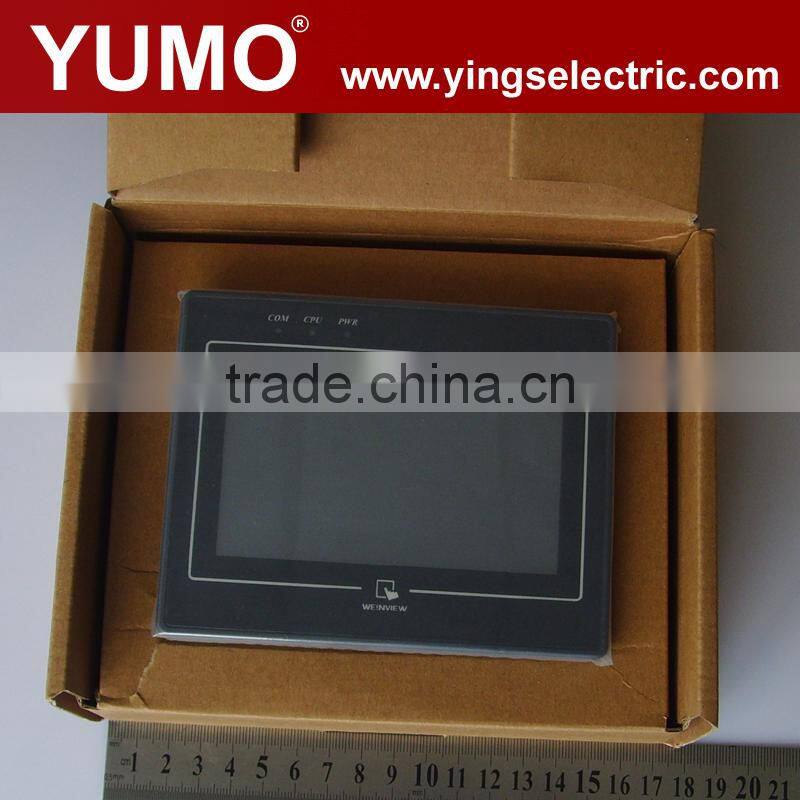

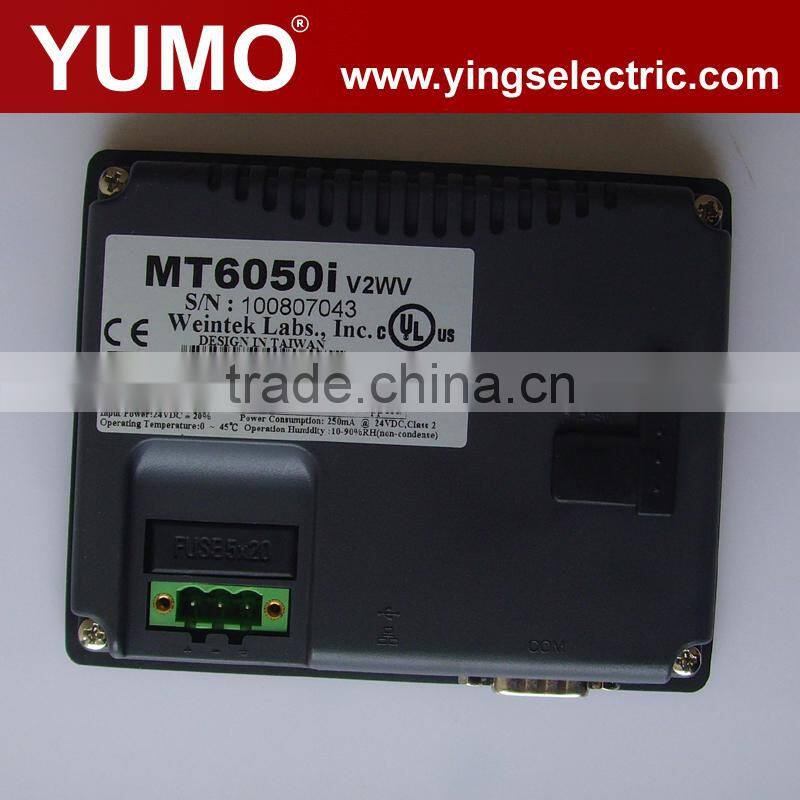

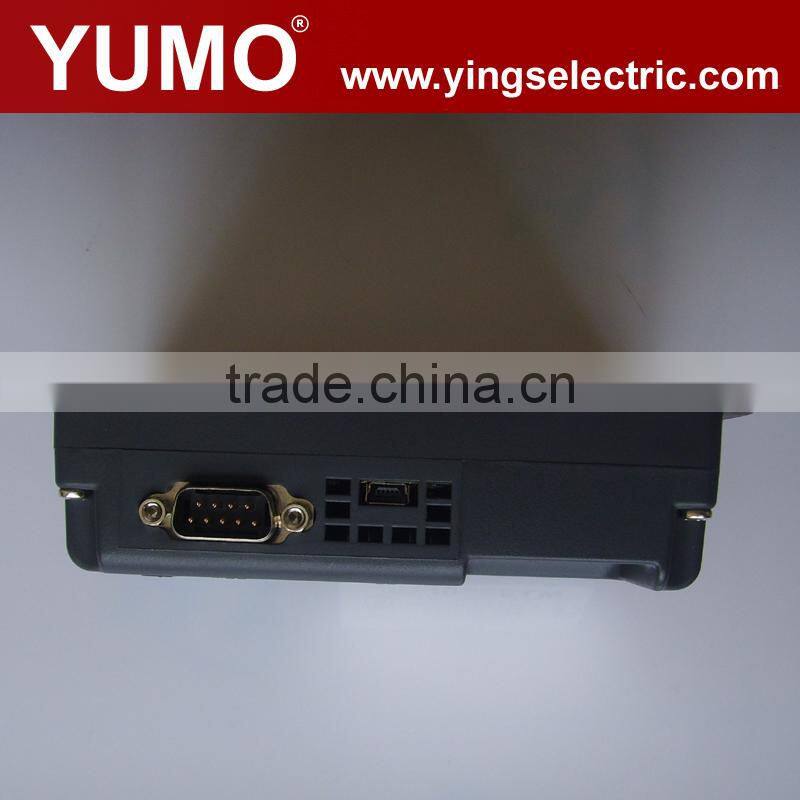

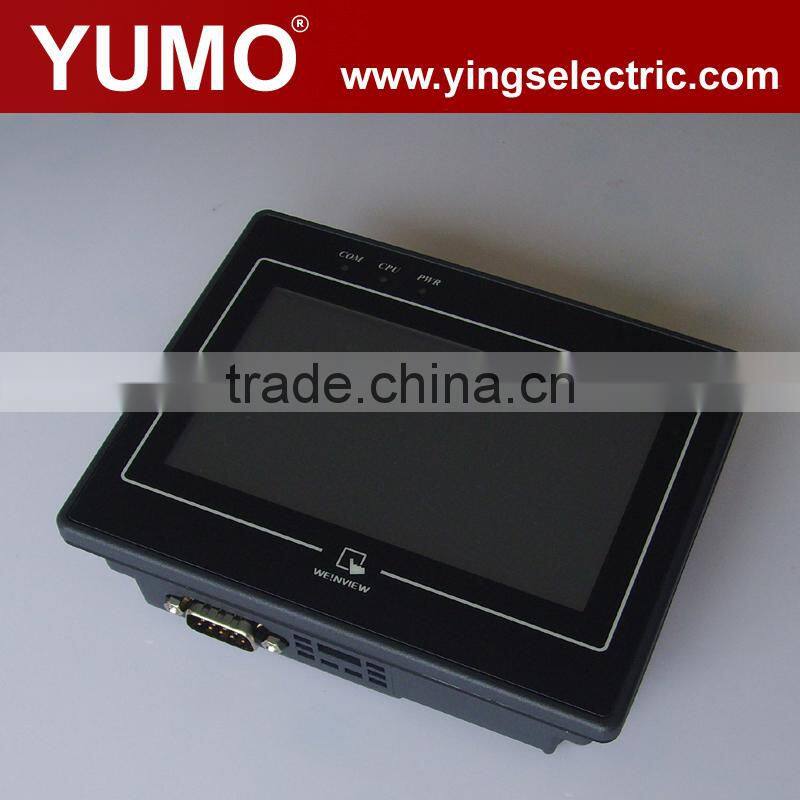

MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) thumbnail-1
MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) thumbnail-2
MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) thumbnail-3
MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) photo-1
MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) photo-2
MT6050i Touch Screen Display 4.3 Inch Cheap Hmi Panel Hmi Plc (Human Machine Interface) photo-3
US$ 180 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Weinview
Model Number:
MT6050i
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Weinview
Model Number MT6050i
Type TFT

HMI (Human machine interface) 4.3" TFT LCD touch screen MT6050i



NEW MT6050i

4.3", 65536color, TFT, 480x272, 450cd/m2, 500:1, LED, CPU 400MHZ, 64MB-DRAM, 128MBFlash



Display  4.3" TFT
 Resolution 480x272
 Brightness cd/m²  450 cd/m2
 Contrast Ratio 500:1
 Back Light  LED
 Life Time 30,000 hr
 Touch Panel Type  4 wires resistive type
 Storage(MB) 128
 RAM(MB)  64
 Processor 32 bit RISC CPU 400 MHz
 CF Card Slot N/A
 SD Card Slot N/A
 USB Client USB 2.0 x 1
 Ethernet Port N/A
 PS2Ports N/A
 Mini PCI N/A
 VGA Port  N/A
 COM Port RS232 / RS485 2W/4W
 Audio N/A
 RTC N/A
 Input Power 24± 20% VDC
 Power Consumption 250mA@24VDC
 Panel Cutout (mm)  119x93mm
 Weight(Kg) Approx 0.3kg





Display
Display 4.3" TFT Widescreen
Brightness (cd/m2) 500 cd/m2
Contrast Ratio 600:1
Color 65536 colors
Resolution (W x H) 480 x 272
Back Light LED
Back Light Life Time 30,000 hr
Processor 32bit RISC CPU 400 MHz
Enclosure Plastic
Touch Panel
Touch Panel Type 4-wireResistive Type
Memory
Storage 128 MB Flash
RAM (RAM) 64 MB
I/O ports
SD Card Slot N/A
USB Host N/A
USB Client USB 2.0 X1
EthernetPort N/A
COMPort COM1(RS-232/RS-485 2W/4W), COM3(RS-485 2W)
Audio N/A
Power
Input Power 24 ±20% VDC
Power Consumption 250mA
RTC N/A
Specification
Panel Cutout (W x H) 119X93mm
Weight (KG) 0.3kg
Certification
CE Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
UL E248297
Operation
Voltage Resistance 500 VAC (1 min)
Isolation Resistance Exceed 50MΩ at 500 VDC
Vibration Endurance 10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure IP65 front panel (O ring seal)
Storage Temperature -20°~60C (-4°~140°F)
Operating Temperature 0°~50C (32°~122°F)
Operation Humidity 10-90% RH (non-condense)
