PLC HMI Programmable Logic Controller APB Series PLC

Name: PLC HMI Programmable Logic Controller APB Series PLC
Brand: YUMO
SKU: 141203206
Availability: InStock

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-1

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-2

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-3

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-4

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-5

PLC HMI Programmable Logic Controller APB Series PLC thumbnail-6

PLC HMI Programmable Logic Controller APB Series PLC photo-1

PLC HMI Programmable Logic Controller APB Series PLC photo-2

PLC HMI Programmable Logic Controller APB Series PLC photo-3

PLC HMI Programmable Logic Controller APB Series PLC photo-4

PLC HMI Programmable Logic Controller APB Series PLC photo-5

PLC HMI Programmable Logic Controller APB Series PLC photo-6

US$ 40 - 120 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

YUMO

Model Number:

APB Series PLC

Contact Supplier Request Quote Chat Now

Yueqing Yings Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name YUMO

Model Number APB Series PLC

Product Description

APB Series PLC

Features:

Main module: 122224 points; Extension module: 22 points; It

is flexible for extending, and the optimal max. configuration: 7 I/O

extension modules, 1 voice module, and 1 SMS module;

Program memory capacity: 320 FBDs, EEPROM;

It is allowed to place a Li-ion battery to power the clock;

Under the circumstance of DC12-24V, the main machine at

most has 12 voltage analog inputs 0-10V, 2 current analog inputs

4-20mA and 2 analog outputs 4-20mA;

High-speed operation: at most 4 high-speed inputs 10KHZ and

2 high-speed outputs 10KHZ;

MODBUS protocol, and can be connected to SH-300 (Text

Panel);

New function blocks: pulse width modulation (PWM), pulse

output (PTO), ACC, SMS and analog calculation etc.;

Item	APB-12MRD(L)		APB-12MTD(L)		APB-12MGD(L)		APB-22MRA(L)		APB-24MRDL
	APB-22MRD(L)		APB-22MTD(L)		APB-22MGD(L)		APB-12MRA(L)
Surge Immunity	2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)
Electrostatic Discharge (outer casing)	±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)
Ambient Temperature	-10℃~+55℃
Storage Temperature	-40℃~+70℃
Ambient Humidity	5%~95%RH
Degree of Protection	IP20(Non-waterproof)
Installation	Fixing with M3 screws or Standard DIN rail mounting
Dimensions (mm)	719958.5(12 points);1269958.5(22 points);1269958.5(24 points)
Programming Language	FBD
Points	12 points/22 points/24 points/can support 7 I/O extension modules
Memory Capacity	320 FBDs
Filtering Duration of Input Signal	It can be set to improve the stability of signal
Real-time Clock	160h,can place a Li-ion battery if it is necessary
Password Protection	Multiple passwords protection
High-speed Operation	At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz
Analog Operation	At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA
Power Failure Protection	Yes
Simulate Monitoring	Yes
Communication Interface	TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces
Baud Rate	9600bps
Communication Protocol	MODBUS RTU
Power Supply
Rated Voltage	DC12-24V	DC12-24V		DC12-24V		AC110-220V		DC12-24V
Permissible Range	DC11-28V	DC11-28V		DC11-28V		AC85V-265V		DC11-28V
Power Consumption	3.5w	--		--		--		--
Digital Input
Input Type	NPN/PNP	NPN/PNP		NPN/PNP		NPN/PNP		NPN/PNP
Input Signal 0	DC0-5V	DC0-5V		DC0-5V		AC0-70V		DC0-5V
Input Signal 1	DC8.5-28V	DC8.5-28V		DC8.5-28V		AC85-265V		DC8.5-28V
Isolation	Non-isolation	Non-isolation		Non-isolation		Photoelectric isolation		Non-isolation
Isolated Group	--	--		--		14		--
Isolated Voltage	--	--		--		2500/5000Vr.m.s		--
Digital Output
Output Type	Relay	Transistor(NPN)		Transistor(PNP)		Relay		Relay
Rated Voltage	24VDC/220VAC	24VDC		24VDC		24VDC/220VAC		24VDC/220VAC
Isolation Method	Relay isolation	-		-		Relay isolation		Relay isolation
Analog Input
Input Type	(DC0-10V)/8 inputs	(DC0-10V)/8 inputs		(DC0-10V)/8 inputs		--		(4-20mA)/2 inputs
	(DC0-10V)/12 inputs	(DC0-10V)/12 inputs		(DC0-10V)/12 inputs				(DC0-10V)/12 inputs
Analog Output
Output Type	--	--		--		--		4-20mA/2inputs
A/D Conversion	--	--		--		--		12 bits
Isolation	Non-isolation	Non-isolation		Non-isolation		Non-isolation		Non-isolation
High-speed Operation
Input Type	4 inputs /10KHz	4 inputs /10KHz		4 inputs /10KHz		--		4 inputs /10KHz
	Support single-phase counter and two-phase counter	Support single-phase counter and two-phase counter		Support single-phase counter and two-phase counter		--		Support single-phase counter and two-phase counter
Output Type	--	2 outputs / 10KHZ		2 outputs /10KHZ		--		--
		Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse		Supports multiple outputs: PTO pulse output, PWM pulse width modulation and acceleration/ deceleration single-phase pulse

Type

Note: The economical type is supplied without LCD panel, and the basic type is supplied with LCD panel.
APB-12MRD(L)	DC12V-24V	8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports	4 points relay output
APB-12MTD(L)	DC12V-24V	8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports	4 points NPN transistor output Q2,Q3 can be high-speed output ports
APB-12MGD(L)	DC12V-24V	8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports	4 points PNP transistor output Q2,Q3 can be high-speed output ports
APB-22MRA(L)	AC100V-240V	14 points input	8 points relay output
APB-22MRD(L)	DC12V-24V	14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports	8 points relay output
APB-22MTD(L)	DC12V-24V	14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports	8 points NPN transistor output Q2,Q3 can be high-speed output ports

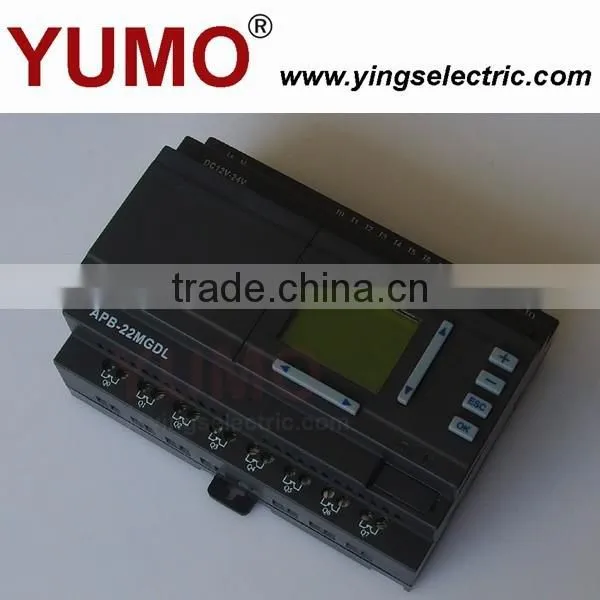

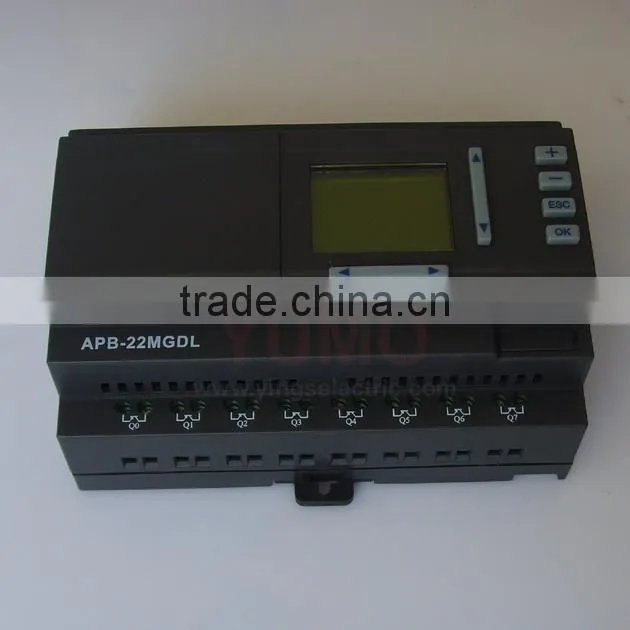

APB-22MGD(L)	DC12V-24V	14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports	8 points PNP transistor output Q2,Q3 can be high-speed output ports
APB-24MRDL	DC12V-24V	2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports	6 points relay output + 2 analog outputs
APB-22ERA	AC100V-240V	14 points digital input	8 points relay output
APB-22ERD	DC12V-24V	14 points digital input	8 points relay output
APB-22ETD	DC12V-24V	14 points digital input	8 point NPN transistor output
APB-22EGD	DC12V-24V	14 points digital input	8 point NPN transistor output

Auxiliary Module

APB-SMS	supports I/O control and SMS alarm, as well as receives and sends short message in another mode
APB-EXPMC	applied in the long-distance signal transmission interface and constitutes a nerwork with 485 bus
APB-EXNET	use cable network and TCP/IP protocol to link the remote network

Dimensions

Take the 12 points module as an example. The 12 points, 22 points, and 24 points modules and other extension modules share the same width and height, the only one difference exists in the length.

Type	Dimensions(mm)
12 points main module	719958.5
22 points main module	1269958.5
24 points main module	1269958.5
I/O extension module	1269958.5
SMS extension module	719958.5

PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC PLC HMI Programmable Logic Controller APB Series PLC
