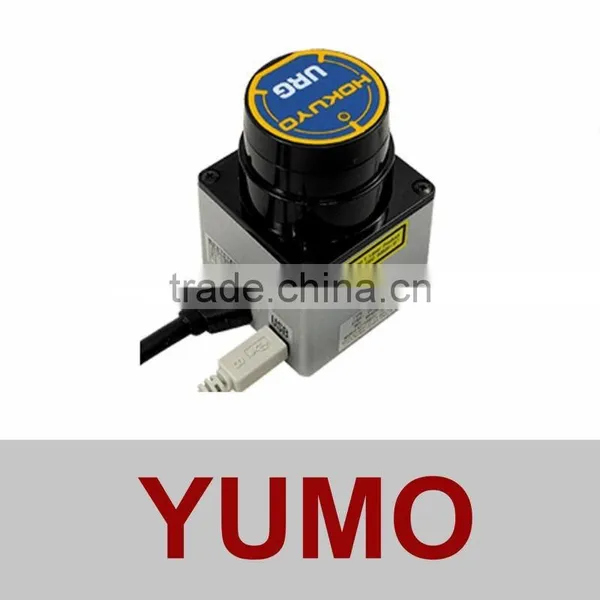

Hokuyo URG-04LX Scanning Laser Rangefinder
The Hokuyo URG-04LX-UG01 Scanning Laser Rangefinder is a small, affordable and accurate laser scanner that is perfect for robotic applications. The URG-04LX-UG01 is able to report ranges from 20mm to 5600mm (1mm resolution) in a 240° arc (0.36° angular resolution). Its power consumption, 5V 500ma, allows it to be used on battery operated platforms. It is best for students and researchers who are involved in robotics
Description
- Hokuyo's URG-04LX-UG01 detectable range is 20mm to 5600mm
- 100msec/scan
- 5V operating voltage
- 240° area scanning range with 0.36° angular resolution
.
Features
- Light weight(160g).Best for robot!
- Low-power consumption (2.5W) for longer working hours.
- Wide-range (5600 mm × 240°).
- Accuracy(±30mm).*
- Distance and angle data output with high angular resolution (0.352°).
- High quality product under Total Quality Management. Designed, manufactured and inspected by HOKUYO.

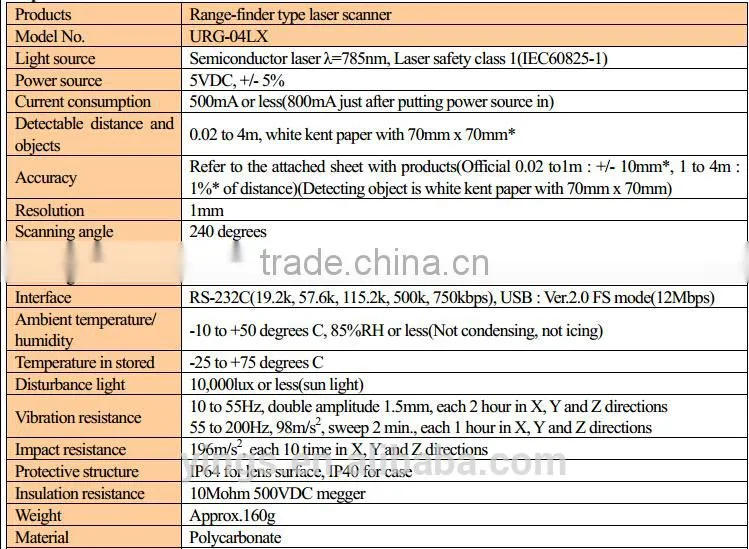

Specifications
- Power source: 5VDC±5? (USB Bus power)
- Light source: Semiconductor laser diode(?=785nm), Laser safety class 1
- Measuring area: 20 to 5600mm (white paper with 70mm×70mm), 240°
- Accuracy: 60 to 1,000mm : ±30mm, 1,000 to 4,095mm : ±3? of measurement
- Angular resolution: Step angle : Approx. 0.36°(360°/1,024 steps)
- Scanning time: 100ms/scan
- Noise: 25dB or less
- Interface: USB2.0/1.1[Mini B](Full Speed)
- Command System: SCIP Ver.2.0
- Ambient illuminance*1: Halogen/mercury lamp: 10,000Lux or less, Florescent: 6000Lux(Max)
- Ambient temperature/humidity: -10 to +50 degrees C, 85% or less(Not condensing, not icing)
- Vibration resistance: 10 to 55Hz, double amplitude 1.5mm each 2 hour in X, Y and Z directions
- Impact resistance: 196m/s2, Each 10 time in X, Y and Z directions
- Weight: Approx. 160g
Important Information about sensor Conditions
1. All of the sensor are brand new, top quality components: absolutely no used items or counterfeits.
2. The pictures are for reference only. Exact specifications should be obtained from the datasheet.
3. Prices, specifications, and availability of all items are subject to change without notice.
4. We are not responsible for typographical errors.
Payment Terms
- We accept payments made by Western Union,TT,PayPal.
-Since you made the payment successfully, you can send us the Reference NO or MTCN.
Shipping
1.We will ship the items within 5 working days after the payment is reached.
2.We ship to you by Express.
3.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4.Any import fees or charges are the buyer's responsibility.
Warranty
Warranty is available based on the following points:
1.The sensor are guaranteed for one year.
2.If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3.If the items is defective, please notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the return shipping cost incurred.
