CE certificate CJX2 series 3P 24VDC 230V manufacturer silver alloy electrical contacts copper cjx2-1810 ac contactor
- 1000000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUMO | Model Number: | CJX2-3210B6 |
Electricity Type: | AC | Number of Pole: | 3 | Phase: | 3 |
Main Circuit Rating Voltage: | 690v | Main Circuit Rating Current: | Other, 50 |
Product Description
ddd
cjx2-1810 ac contactor Application:
CJX2(LC1-D) series AC contactor is suitable for electric circuit up to the rated voltage of 660V AC 50 Hz or 60Hz,rated current up to 95A for making,breaking,frequently starting&controlling AC motor.Combined with the auxiliary contact block,time delay&mechnical interlock device etc,it becomes the delay contactor,mechnical interlock contactor,star-delta starter.With the thermal relay,it is combi-ned into the electromagnetic starter.The Contactor is produced according to IEC947-2,VDE0660&BS5452.
cjx2-1810 ac contactor Specifications:
Type | CJX2-09(LC1-09) | CJX2-12(LC1-D12) | CJX2-16(LC1-D18) | CJX2-25(LC1-D25) | CJX2-32(LC1-D32) | |
Rated working current(A) | AC3 | 9 | 12 | 18 | 25 | 32 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
AC3 capacity of phase 3 squirrel-cage motor AC3(kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
415V | 4 | 5.5 | 9 | 11 | 15 | |
440V | 4 | 5.5 | 9 | 11 | 15 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | |
Electrical life | AC4×104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
AC3×106 | 2 | 2 | 2 | 2 | 2 | |
Mechanical life×106 | ||||||
number of the contact | 3P+NO | |||||
3P+NC |
Type | CJX2-40 (LC1-D40) | CJX2-50 (LC1-D50) | CJX2-63 (LC1-D65) | CJX2-80 (LC1-D80) | CJX2-95 (LC1-D95) | |
Rated working current(A) | AC3 | 40 | 50 | 65 | 80 | 95 |
AC4 | 18.5 | 24 | 28 | 37 | 44 | |
AC3 capacity of phase 3 squirrel-cage motor AC3(kw) | 220/230v | 11 | 15 | 18.5 | 22 | 25 |
380/400v | 18.5 | 22 | 30 | 37 | 45 | |
415v | 22 | 25 | 37 | 45 | 45 | |
440v | 22 | 30 | 37 | 45 | 45 | |
500v | 22 | 30 | 37 | 45 | 45 | |
660/690v | 30 | 33 | 37 | 45 | 45 | |
Rated heat current(A) | 60 | 80 | 80 | 80 | 125 | 125 |
Electrical life | AC4×104 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
AC3×106 | 2 | 2 | 1.6 | 1.6 | 1.6 | |
Mechnical life×106 | 20 | 20 | 20 | 10 | 10 | |
Number of the contact | 3P+NC+NO |

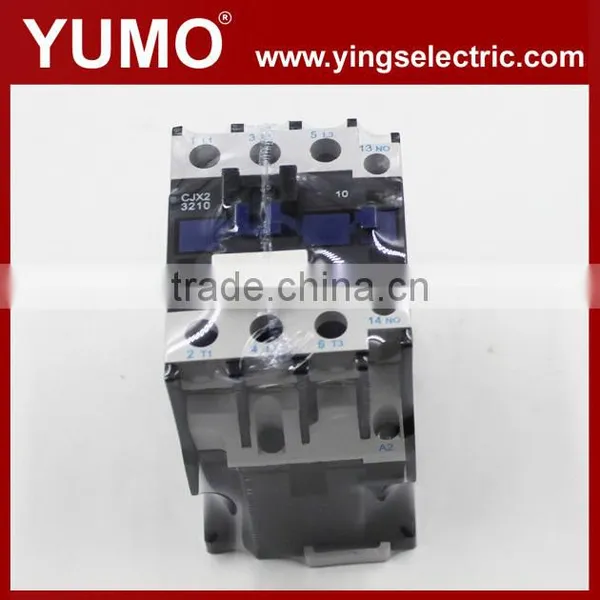

cjx2-1810 ac contactor picture:
CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor CE certificate CJX2 series 3P 24V coil 24VDC 230V manufacturer silver alloy electrical contacts copper ac contactor
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
YUEQING YUMO ELECTRIC CO.,LTD
TEL:0086-577-62791815 Mobile:0086-13757779011
Sky-pe:benjaminying TradeManager:yncync
