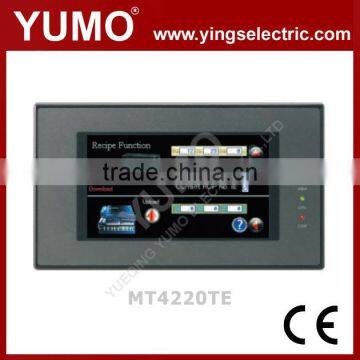

MT4220TE 4.3" TFT 480X272 Pixels LED Serial Port Hmi Touch Screen Panel HMI

MT4220TE 4.3" TFT 480X272 Pixels LED Serial Port Hmi Touch Screen Panel HMI thumbnail-1
MT4220TE 4.3" TFT 480X272 Pixels LED Serial Port Hmi Touch Screen Panel HMI photo-1
US$ 160 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YUMO
Model Number:
MT4220TE
Contact Supplier Request Quote Chat Now
Yueqing Yings Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YUMO
Model Number MT4220TE

 MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI





Product Description

MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMIMT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMIMT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI

Product Description



touch screen monitor MT4210T 4.3 size



MT4000 series HMI use 32-bit RISC CPU and streamlined LINUX kernel, you can display a variety of true-color graphics format, and its superior processing speed and software to meet the needs of most users. Support and the vast majority of the PLC to communicate directly, and can easily exchange data between their connected devices. MT4000 series has a direct line simulation, indirect line simulation, high-capacity user configuration program memory space, compatible with the standard C language macro functions fit the customer needs quickly and effectively complete the field data collection, computing, control.

Features:
*65536 color TFT display, supports BMP, JPG, GIF, and other format images import;
*high-performance 32-bit 400MHz RISC CPU, fast processing capability to protect the higher work efficiency;
*4.3 "to 12.1" wide range of display size;
*MT4000E configuration 10M/100M adaptive Ethernet interface;
*the integration 1USB the Slave and a DB15/DB25 printer interface;
*a powerful the EV5000 configuration software function to support the C language macro script;

Specifications:

MT4210T
*The high-speed 400MHz CPU, fast data processing and transmission capabilities, to provide protection for the efficient work
*65536 color display, the picture is richer and more vivid
*wider temperature range, stable work in -20 ~ 55 ° C environment

Model

MT4210T

MT4220TE

Performance specification

Display

4.3" TFT

Resolution

480*272

Color

65536

Backlight

LED

Brightness

300cd/ m²

Backlight life

50000 hours

Touch Panel

4-wire precision resistance network

Processor

32-bit 400MHz RISC

32-bit 800MHz RISC

Memory

128M FLASH + 64M SDRAM

U Disk

None

1USB host

SD Card

None

 1 SD card

Recipe memory & RTC

512KB + RTC

Printer port

Serial port

Serial port/USB port

Ethernet

None

Support

Program download

USB SLAVE/Serial port

USB SLAVE/Serial port/Ethernet port

COM port

COM0:RS232/RS485-2/RS485-4,COM2:RS232

Function Key

None

Software

EV5000 V1.6

Electrical specification

Rated power

3.5W

Rated voltage

DC24V

Input range

12~28VDC

Power down allowed

<3ms

Insulation resistance

Greater than 50MΩ@ 500V DC

Dielectric strength test

500 VAC 1 minute

Structure specification

Shell color

Black

Shell material

ABS

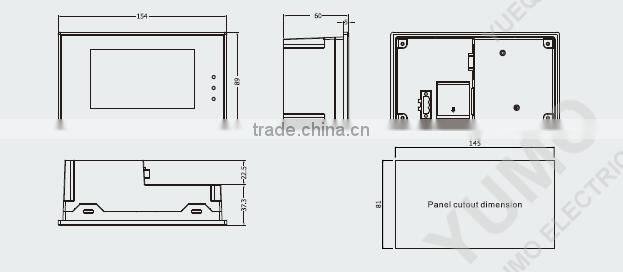

Dimensions(mm)

154×89×59.8mm

Cutout size(mm)

145×81mm

Weight

0.34 Kg

Environment specification

Operating temperature

 -20~55 ° C

Operating humidity

10~90% non-condensing

Storage temperature

 -25~60 ° C

Storage humidity

10~90% non-condensing

Shockproof test

10~25Hz (X, Y, Z direction, 2G, 30 minutes)

Cooling method

Natural air cooling

Certification

Degree of protection

IP65 (front panel)

CE certification

Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards

FCC compatibility

Complies with FCC Class A

  MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI MT4220TE 4.3" TFT 480X272 pixels LED serial port hmi touch screen panel HMI
