Specifications
Multi-function LCD digital Timer/Counter/Tachometer TC-Pro48 seriesMulti-function LCD digital Timer/Counter/Tachometer TC-Pro48 series
counter,digital counter,timer,revolution counter,LCD digital counter,electronic counter

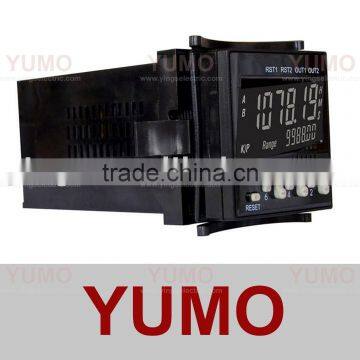

Multi-function LCD digital Timer/Counter/Tachometer TC-Pro48 series
Highly visible display with backlit negative transmissive LCD
Conform to the key design of ergonomics
Five Key Protection Modes:KP-1~5
EEPROM(overwirtes:100,000 times min.)
12VDC external supply power can drive the external optical
sensors,such as encoder,infrared switches etc.

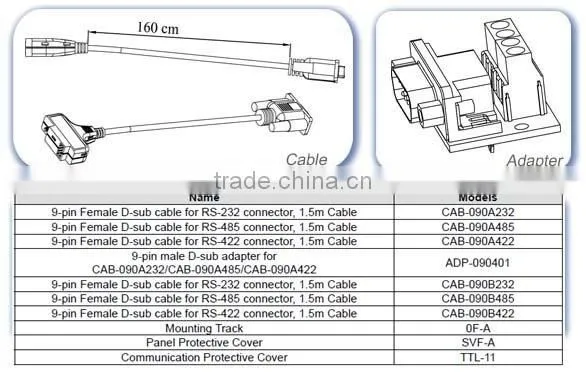

Applied to connect PC/HMI
Weight: approx. 168g

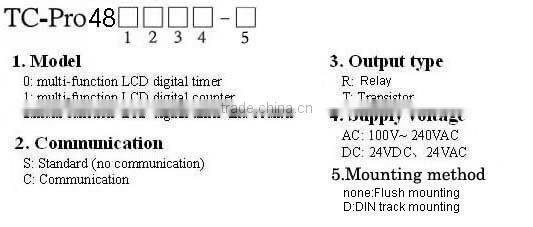

Type | TC-Pro480 | TC-Pro481 | TC-Pro482 | ||||||||
Classification | Digital Timer | Digital Counter /Tachometer | Digital Timer/Counter /Tachometer | ||||||||
Supported configurations | Timer, Dual Timer, 2-Stage Timer | 1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable) | Timer, Dual Timer, 2-Stage Timer,1-stage counter, 2-stage counter, total counter, batch counter, dual counter, and tachometer (selectable) | ||||||||
Rated supply voltage | 100~240VAC(50/60HZ), 24VAC(50/60HZ), 12~24VDC( permissible ripple:20%(p-p) max. ) | ||||||||||
Operating voltage range | 85%~110%Rated Supply Voltage (12~24VDC:90%~110%) | ||||||||||
Power consumption | Approx. 6.2VA at 264VAC, Approx. 5.1VA at 26.4VAC, Approx. 2.4W at 12VDC | ||||||||||

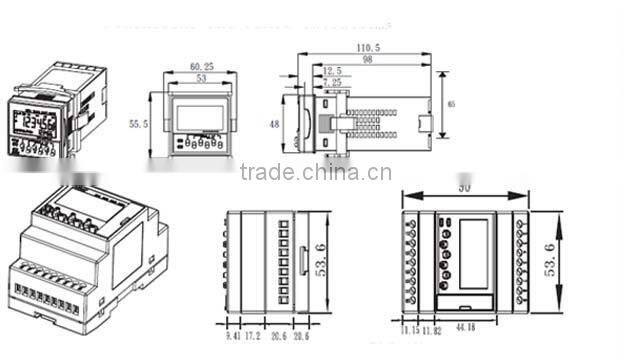

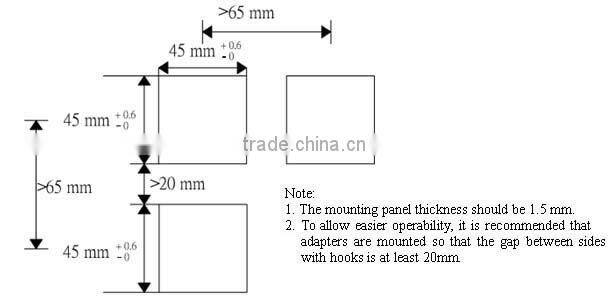

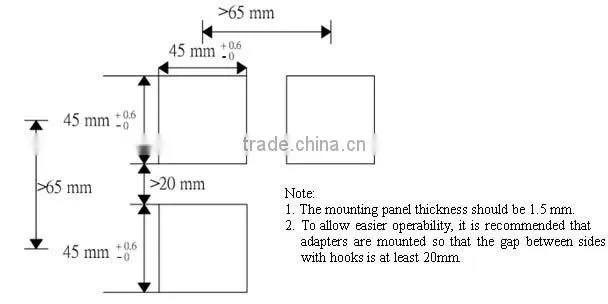

Mounting method | Flush mounting and DIN mounting | ||||||||||
External connections | Screw terminals | ||||||||||
Input signals | CP1, CP2, Reset 1 | CP1, CP2, Reset 1, Reset 2 | CP1, CP2, Reset 1, Reset 2 | ||||||||
Max. counter speed | None | 30Hz or 5KHz (10KHz for Tachometer) | 30Hz or 5KHz (10KHz for Tachometer) | ||||||||
Timer mode | Elapsed time (UP), Remaining time (down) (selectable) | None | Elapsed time (UP), Remaining time (down) (selectable) | ||||||||
Input method |
| ||||||||||
Output method | Relay/transistor output | ||||||||||
Control output |
| ||||||||||
Key protection | Yes | ||||||||||
Life expectancy |
| ||||||||||
Weight | Approx. 168g | ||||||||||
