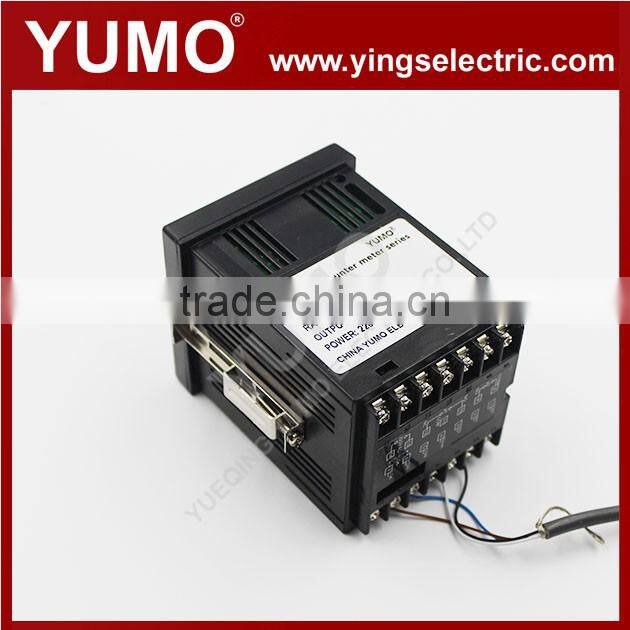

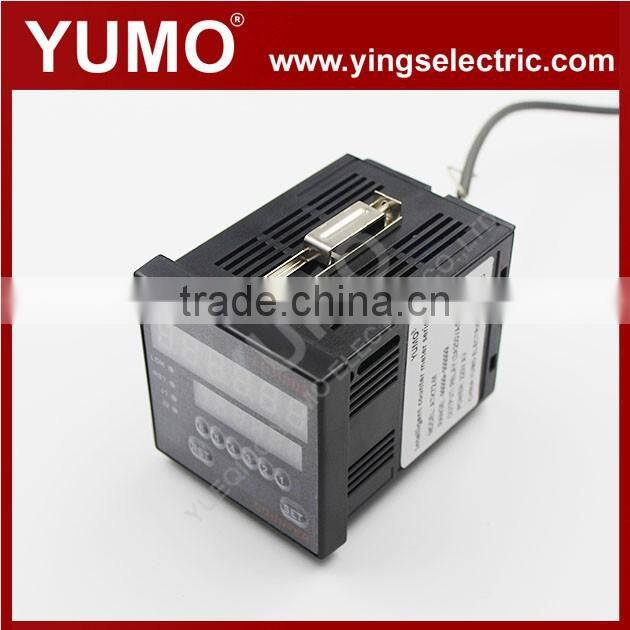

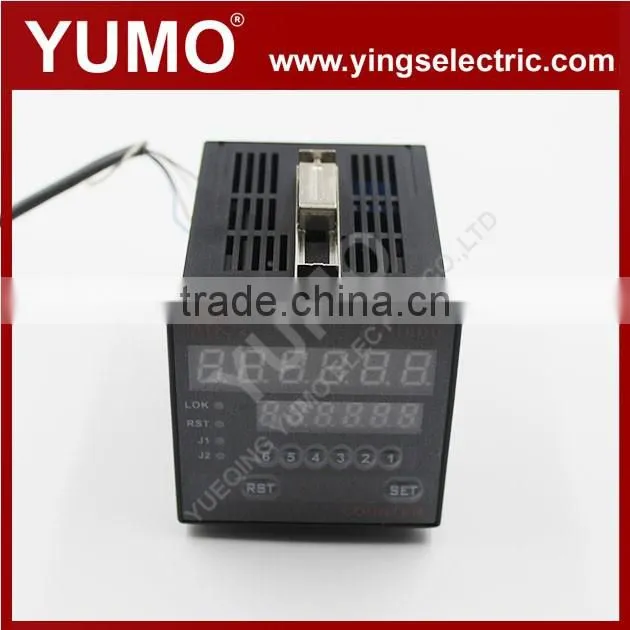

Cable Length Measuring Meter Counter ATK72-M Meter Counter

The structural characteristics and the main technical specifications
1. Length measurement and length control range: 00000.0-99999.9m, 0000.00-9999.99m, 000000-999999m display units mm centimeters, decimeter, meter, a key to switch the code number display!
Reversible two-way meter
3. Pulse equivalent: 0.00001 ~ 99.9999 adjustable
4. Dimensions (width × height × depth): 72 × 72 × 85mm Installation opening size (width × height): 68 × 68mm
5: error adjustment function
6: Initial value setting

The main function
1, reversible count: the measured object forward movement, the reverse movement of the reduction, no commutation error.
2, with power outage protection. After the power failure, the original set number and the current count value to maintain the state before the power failure, restore power supply, the instrument then power-down state to continue working.
3, fixed-length output: when the meter to set the count value (you can set two different values), the instrument output contact signal (normally closed normally closed), then normally closed contact can be directly controlled equipment parking or other Alarm, etc., then normally open contacts can control the machine start or power, the alarm connected to the normally open contacts, reach the set number of meters alarm, alarm time 0.1-9.9 seconds arbitrarily set, two relay output action Mode combination of arbitrary settings!
4, by setting the alarm alarm to achieve early warning function, such as 9 meters alarm, alarm 5 seconds to reach 10 meters automatically reset the meter meter!

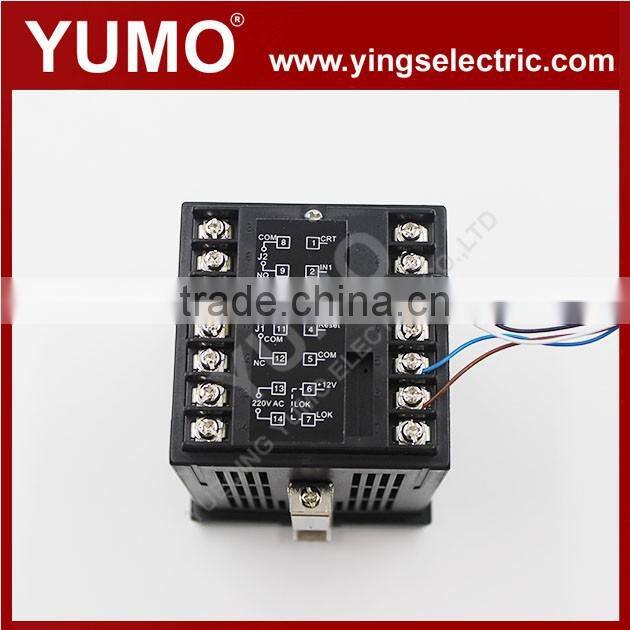

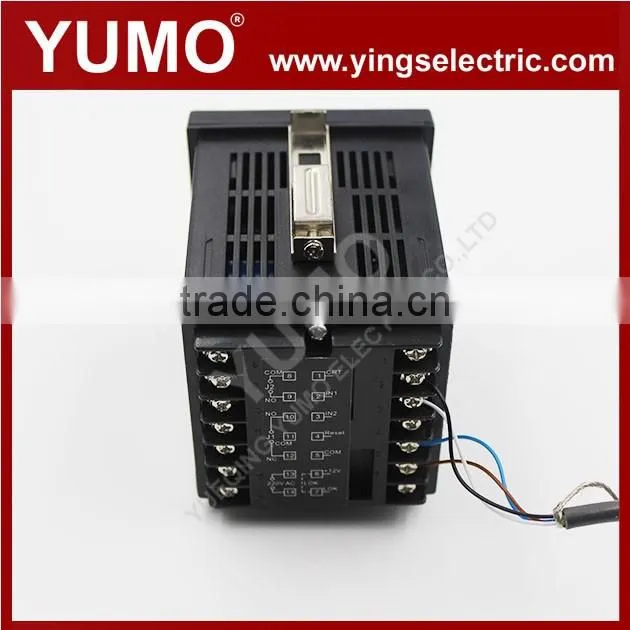

5, external clear terminal, through the external switch operation to clear the count display
6, external code table button, you can switch all the external code table
7, the count value, the coefficient value can be set flexibly, in the case of constant production parameters, a set number can be long-term work.
