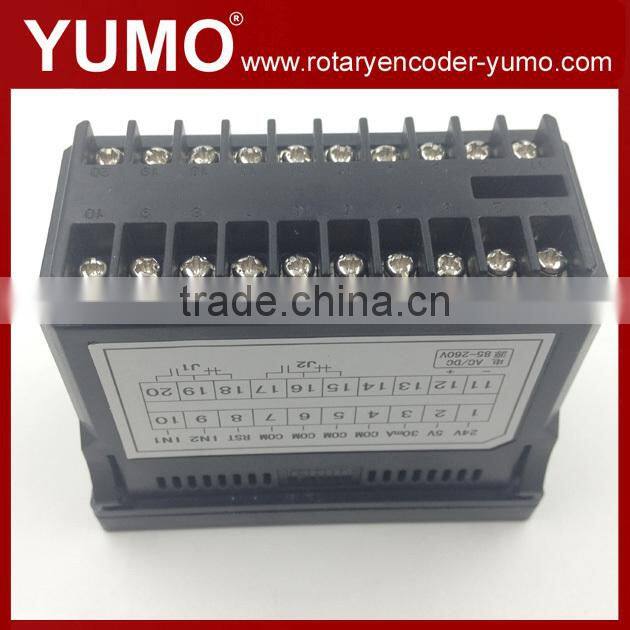

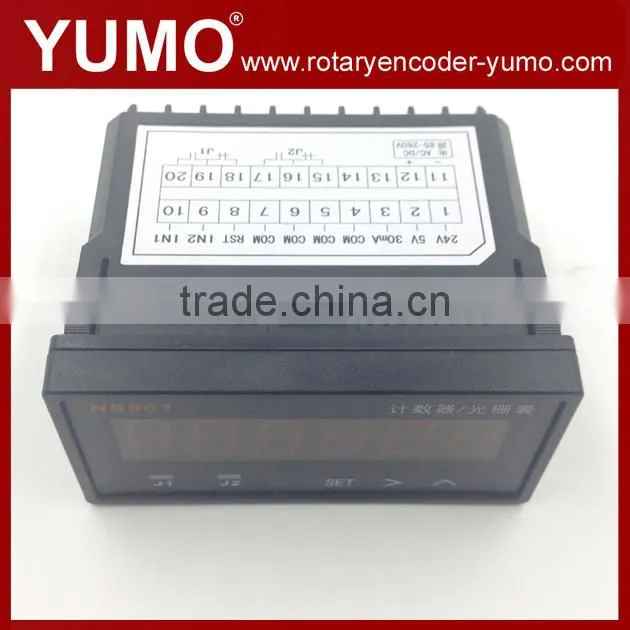

HB961 Counter/Raster Table (Double set of six shows)

♦input singal: switch,pluse(Low pluse:-30V~+0.6V;

                                                High pluse:+4V~+30V)

♦External sensors: photoelectric tube, near the switches,

Hall sensors, angle line grating displacement sensor, encoder

♦Outside the instrument to the sensor for the 5V, 24V

DC voltage and DC current30mA

♦To meet the different needs of which we can set

different ratio A, ratio b, the initial value of C and the decimal dot

♦The current total value, set the count to alarm values, set

Parameter values count-down function is not lost

♦A variety of relay output to meet the requirements of the

scene control

Includes addition and subtraction counting, counting to identify

the phase (raster form) model of a total of two counts, configured

in strict accordance with specification;

1,Technical specifications

♦power supply: AC85V-260V (DC85V-360V);

♦Display dimension: 0.56”;

♦Relay contact capacity: AC220V/3A (Resistive load);

♦ Relay contact life: 10^s_;

♦Maxinmum frequency: 30KH_Z (Raster Form: 15 KH_Z)

♦Display range:-199999~999999;

♦Envoironment:0℃-+50℃; ≤85%RH

♦Overall dimension:96×45mm

♦Shows the value and ratio (A), magnification (b), the initial

 Value (c) the relationship between:

Display value=Pulse input×A/b+ C

 ).
