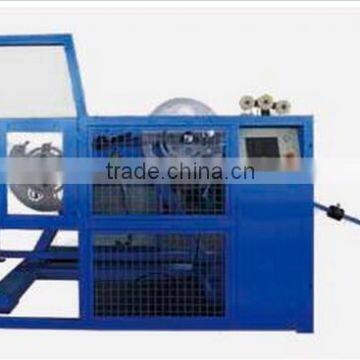

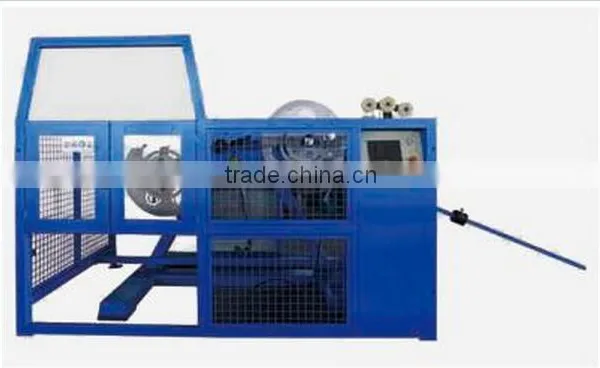

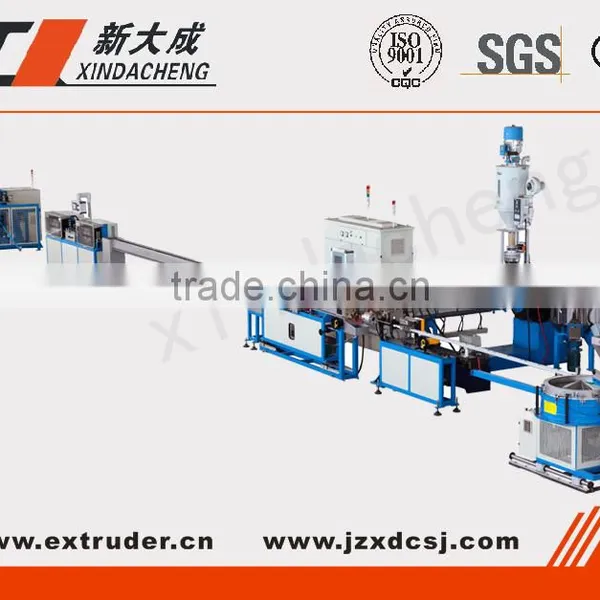

Help CenterFlat Drip Irrigation Pipe Production Line
Related Products
-
High Speed Round Dripper Irrigation Pipe Production LineUS$ 250,000 - 350,000MOQ: 1 Set -
T-tape Drip Irrigation Pipe Production LineUS$ 250,000 - 350,000MOQ: 1 Set
-
Drip Irrigation Pipe Production LineUS$ 200,000 - 400,000MOQ: 1 Set
-
High Speed Thin-wall Flat Drip Pipe Making MachineUS$ 250,000 - 350,000MOQ: 1 Set
-
Drip Irrigation System ,for Agriculture FarmUS$ 0.04 - 0.05MOQ: 10000 Meters
High-speed automated screening and embedding system
• With slight adjustment,the screening and embedding system then can be used foridentification and transportation for single-hole dripper,middle-hole dripper and double-hole dripper.
• The system has special designed identification device that can provide 100% dripper passing guarantee.
• Identification speed>600pcs/min.
• Dripper embedded space:between 100-1500mm,the dripping hole space can be adjusted through the PLC interface.

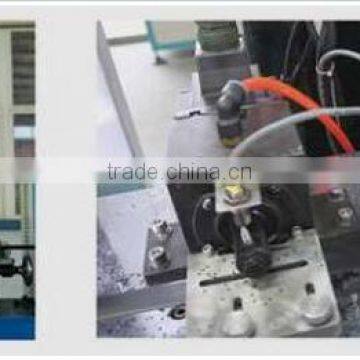

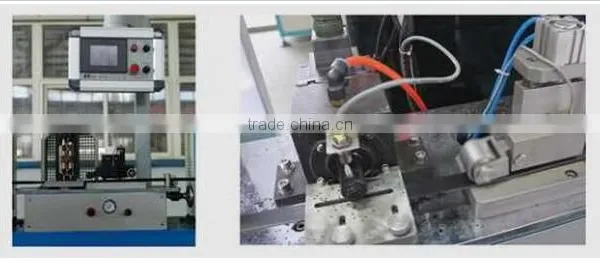

Automatic punching technology and online monitoring system
• Own National invention patent(National Patent No:ZL200710063376.7)
• High-speed for punching single hole,middle hole and double hole.Speed>800 times/min.
• Configured with two alarm system for addident skipping and spacing deviation identify.

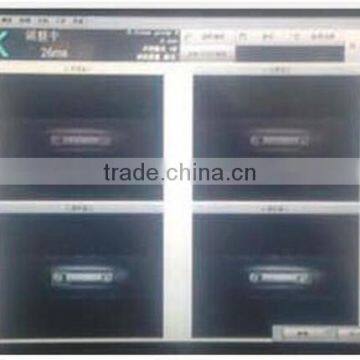

• Configured with high-speed camera and PLC interface operating interface for tracking,monitoring and record storage.
Automatic rewinding and metering functionality
• It is used by servo motor drive.
• Automatic completion for dripper winding displacement,cutting and metering.

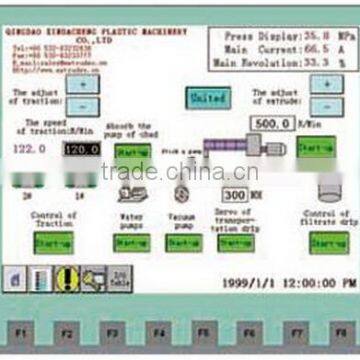

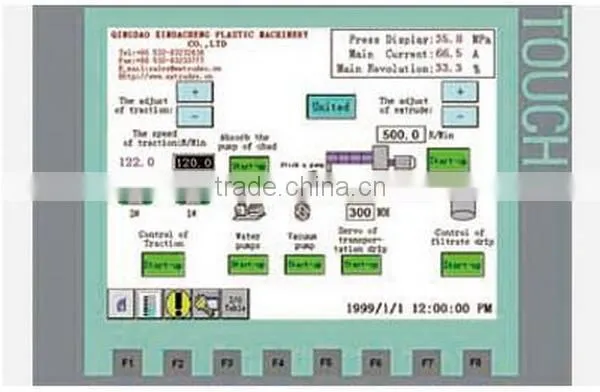

• Very simple PLC operating interface for winding speed and roll volume control.
Item |
Pipe diameter |
Pipe thickness |
Production speed |
Distance of dripper |
Flat dripper irrigation pipe production line |
Φ12-16-20mm |
0.15-1.0mm |
>150m/min |
100,150,200,300,400,500-1500mm |
