IE3 Standard Three Phase Cast Iron Motor With UL Approval
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HALOTOP Motor
Model Number:
4 Pole 1500 RPM Motor
Type:
Synchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China Sea Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IE3 Standard 380V 15KW Three Phase Induction Cast Iron Motor With UL ApprovalNegotiableMOQ: 1 Set -
IE3 Standard Synchronous Speed 400V 50Hz Three Phase Induction Cast Iron MotorNegotiableMOQ: 1 Set
-
NEMA STANDARD 75KW VHS MOTOR PYCH280/75-4US$ 2,600 - 2,600MOQ: 10 Sets
-
NEMA STANDARD 300KW VHS MOTOR PYCH355/300-4US$ 7,400 - 7,400MOQ: 10 Pieces
-
UL LISTED NEMA ODP STANDARD 75HP IE1 FIRE MOTOR (TDC365TS75U2B)US$ 350 - 350MOQ: 10 Pieces
Brand Name
HALOTOP Motor
Model Number
4 Pole 1500 RPM Motor
Type
Synchronous Motor
Frequency
50HZ Motor
Output Power
0.75 - 3KW Motor
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
CE, UL
AC Voltage
Other, 400V
Place of Origin
Shanghai, China
Efficiency
IE 3
Specifications
1. IE3 Standard Three Phase Motor2.UL Certified Motor
3.4 Pole Motor
4.Cast Iron Motor

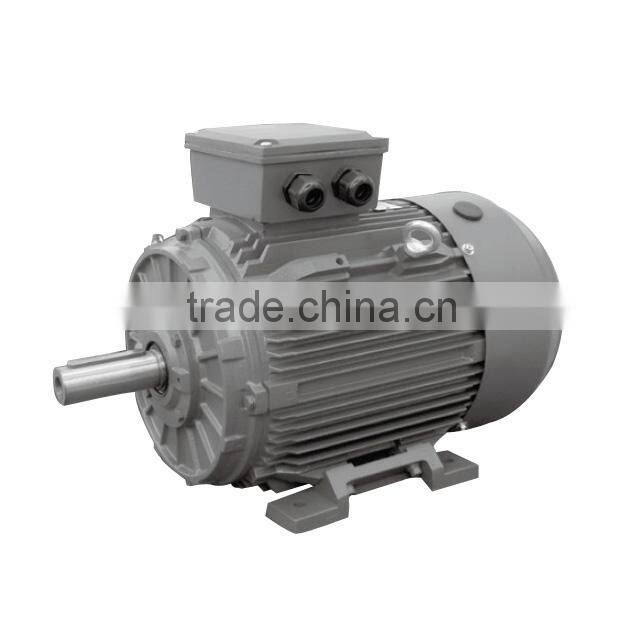

IE3 Standard Three Phase Cast Iron Motor with UL Approval
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| 4 Pole-1500 rpm Synchronous Speed 50Hz | |||||||||||
| Model | Power (KW) | Full Load Speed (r/min) | Inl400V (A) | Ifl400V (A) | Ist/In (Times) | Eff. 100%FL (%) | Power Factor (Cosφ) | Full Load Torque (N.M) | Tst/Tn (Times) | Tmin/Tn (Times) | Tmax/Tn (Times) |
| 802-4 | 0.75 | 1420 | 0.87 | 1.73 | 5.4 | 82.5 | 0.76 | 5.04 | 2.3 | 2.1 | 2.9 |
| 90S-4 | 1.1 | 1425 | 1.17 | 2.42 | 5.9 | 84.1 | 0.78 | 7.37 | 2.3 | 2.1 | 2.7 |
| 90L-4 | 1.5 | 1420 | 1.53 | 3.21 | 6.4 | 85.3 | 0.79 | 10.09 | 2.4 | 2 | 2.7 |
| 100L1-4 | 2.2 | 1430 | 1.97 | 4.47 | 6.6 | 86.7 | 0.82 | 14.69 | 2.4 | 2.1 | 2.9 |
| 100L2-4 | 3 | 1430 | 2.86 | 6.17 | 6.9 | 87.7 | 0.8 | 20.03 | 2.4 | 2 | 2.8 |
