Vitian Panel Lifter for Raised Access Floor

Vitian Panel Lifter for Raised Access Floor

Floor panel lifters are simple to use and very effective for moving panels easily. This device was designed so the user can stand and not have to bend or kneel down when lifting and replacing access floor panels. Push the suction cup(s) onto the panel to apply vacuum seal; lift and move; pull or push trigger (depending on model) to release. When using lifters, make sure floor panels are free of dirt and panel surfaces are unmarred for optimal safe lifting.

DETAILS

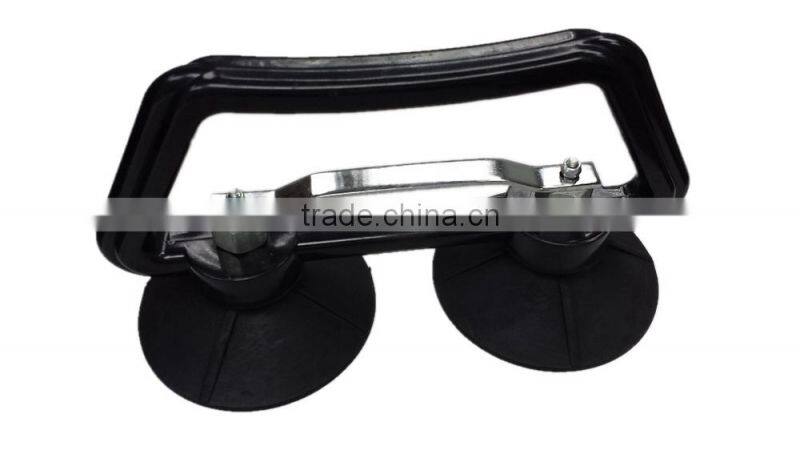

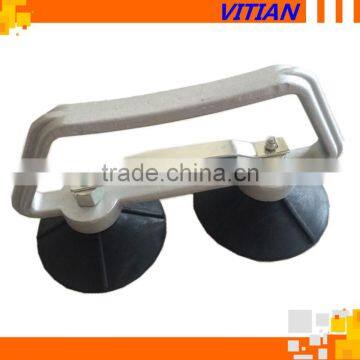

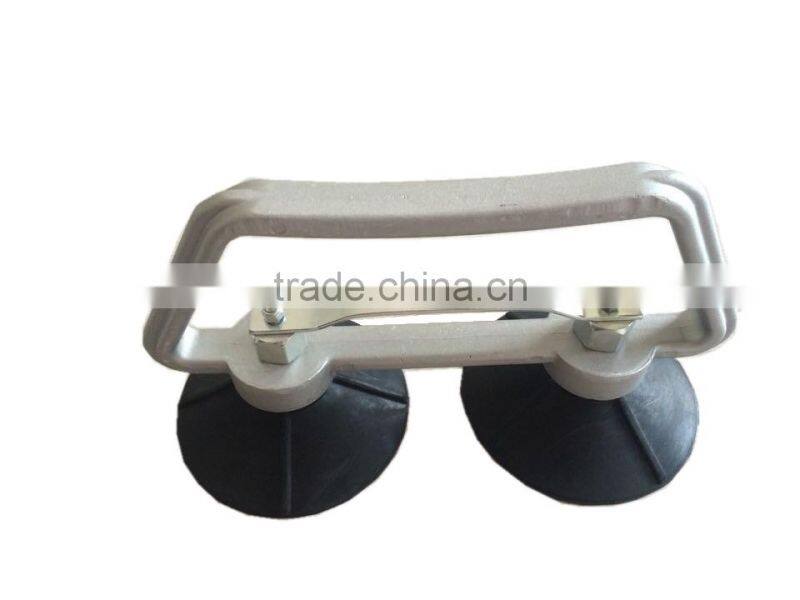

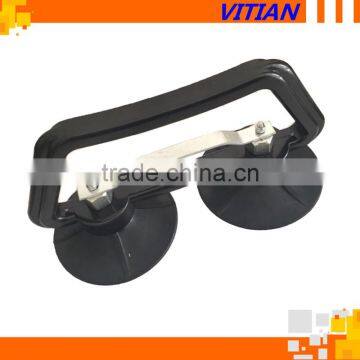

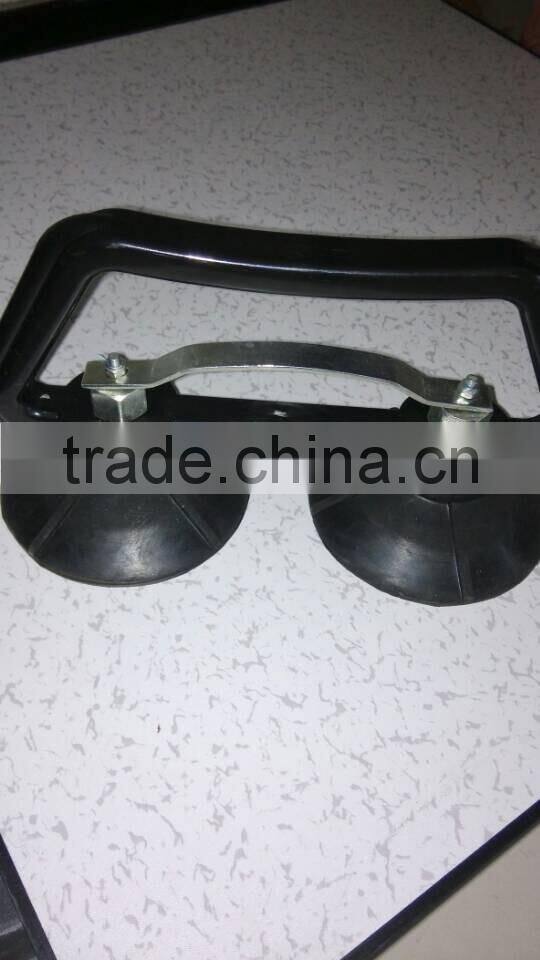

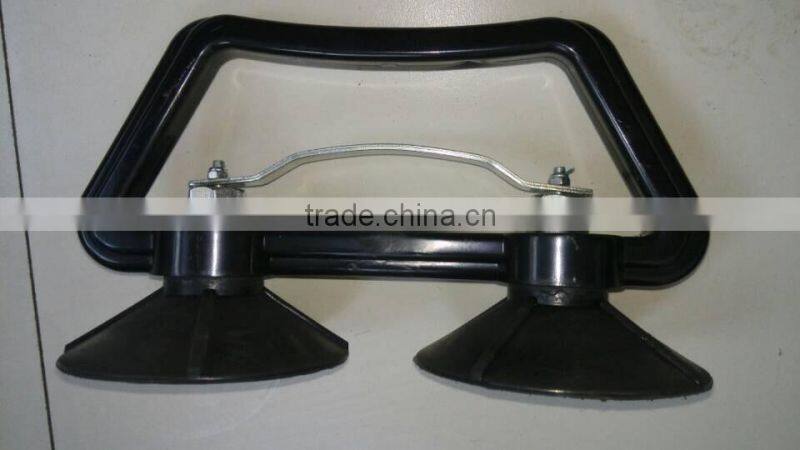

 Steel  body with 2 number  suction cups. This Quick action lifter is ideal for short lifting of large number of flooor panels from the floor grid. It should not be used as a tool to lift and transport panels. The quick action trigger automaticallly releases the suction in the pads when pulled.

EXCELLENT SAFETY FACTOR
Vitian's double cup suction panel lifter (product code DBLCUP) is certified with an 80kg rating. This ensures an excellent safety factor considering the heaviest panel weighs around 21kg.

SUITED TO ALL PANEL SURFACES
Vitian's suction panel lifters  are designe

d for use on all kinds of  access floor panels, including 'bare' and
'high pressure laminate' panel surfaces.

EASY TO USE

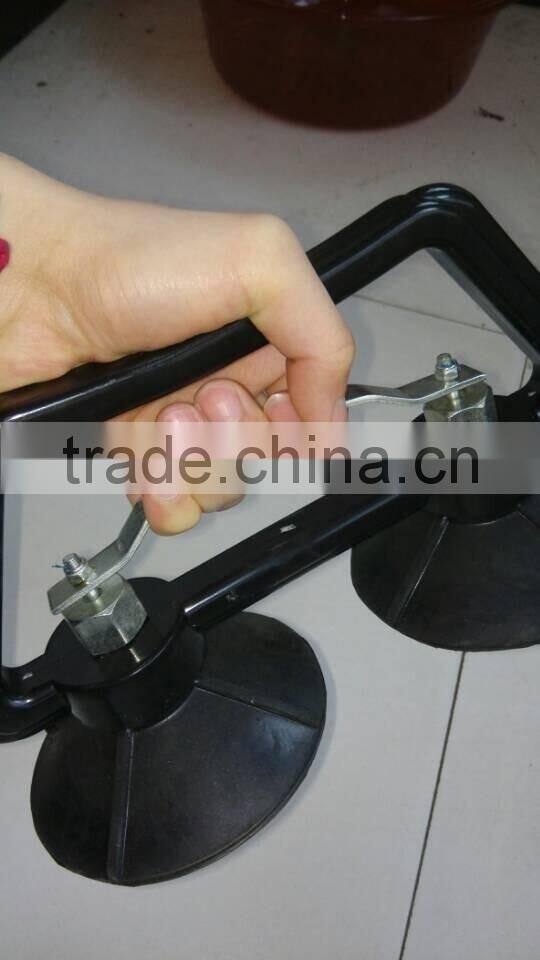

Vitian panel lifters double suction cups are a press down activation suction cup which instantly holds and supports the access floor tile. To release simply pull on trigger and suction is released.

HOW TO USE THE PANEL LIFTER
When underfloor access is required, only those panels directly over the area of work should be removed. To
remove the first panel, place the panel lifter in the centre of the panel, secure both suction cups and lift vertically.
The surrounding panels can then be removed by placing a hand under the panel and lifting.

CAUTION
A panel lifter must be used to remove the first access floor panel. Do not 'hinge' a panel open or attempt to prise it
out with a screwdriver or similar device.

Vertical Suction: 70KG

Horizonta Suction: 50KG

More Types:

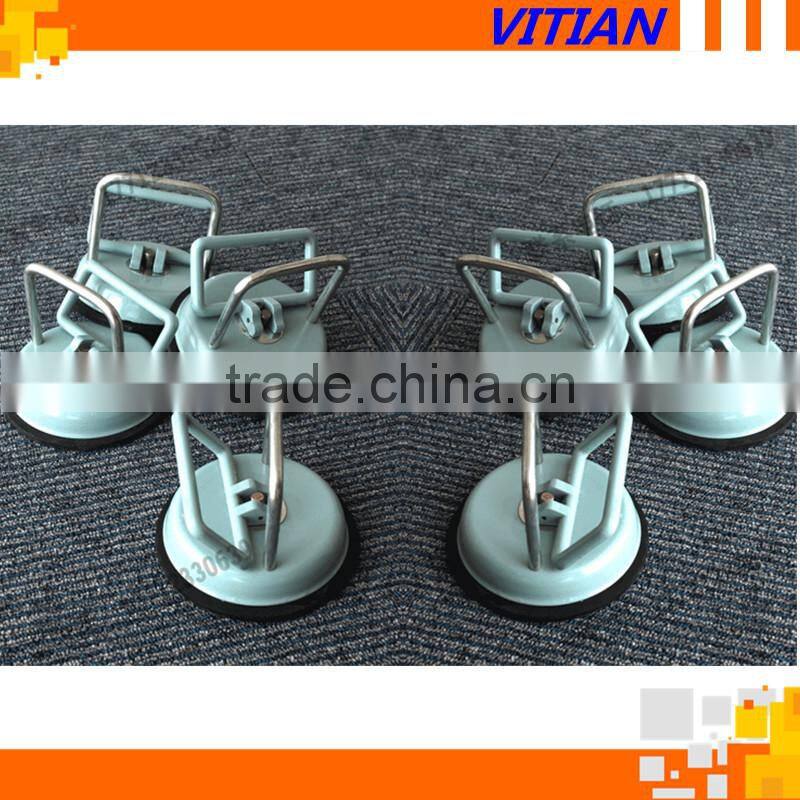

Single Cup Panel Lifter
