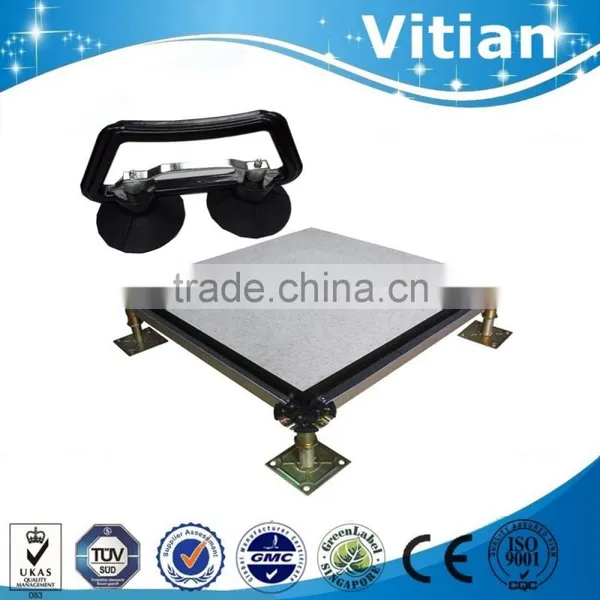

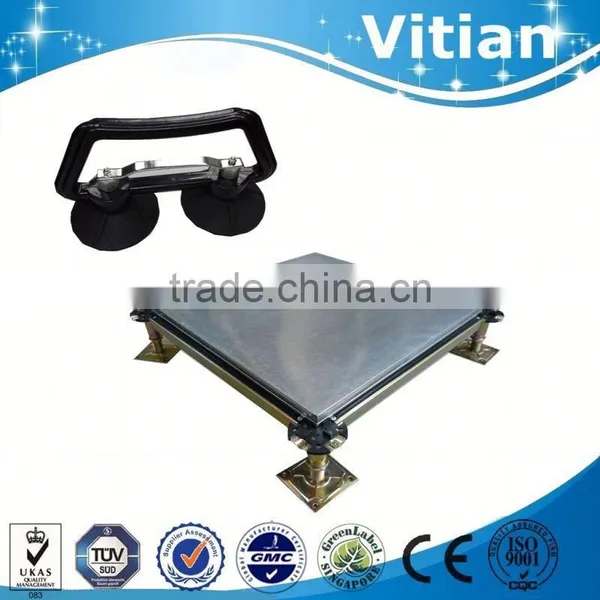

suction cup vacuum glass panel lifter
Steel body with 2 number suction cups. This Quick action lifter is ideal for short lifting of large number of flooor panels from the floor grid. It should not be used as a tool to lift and transport panels. The quick action trigger automaticallly releases the suction in the pads when pulled.
EXCELLENT SAFETY FACTOR
Vitian's double cup suction panel lifter (product code DBLCUP) is certified with an 80kg rating. This
ensures an excellent safety factor considering the heaviest panel weighs around 21kg.
SUITED TO ALL PANEL SURFACES
Vitian's suction panel lifters are designed for use on all kinds of access floor panels, including 'bare' and
'high pressure laminate' panel surfaces.
EASY TO USE
Vitian panel lifters double suction cups are a press down activation suction cup which instantly holds and supports the access floor tile. To release simply pull on trigger and suction is released.

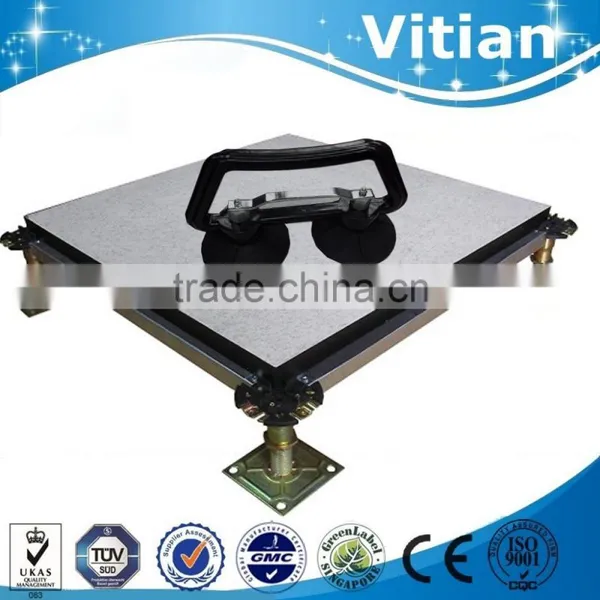

HOW TO USE THE PANEL LIFTER
When underfloor access is required, only those panels directly over the area of work should be removed. To
remove the first panel, place the panel lifter in the centre of the panel, secure both suction cups and lift vertically.
The surrounding panels can then be removed by placing a hand under the panel and lifting.
CAUTION
A panel lifter must be used to remove the first access floor panel. Do not 'hinge' a panel open or attempt to prise it
out with a screwdriver or similar device.
Application
- Raised access floor
- Glass
- Stone
Please note that this lifter is only designed to raise the panel out of the understructure so that it may be manually handled. Do not attempt to completely move a panel or walk with a panel attached to this lifter.
Carton pack
Pass certification
Shipping Information:
1) Shipping by express (samples order) or by sea (bulk order);
2) Worldwide shipping service available;
3) Please contact before order as shipping cost varies time to time.
Discounts:
1) To clients who bring order & large orders;
2) Please contact us for BETTER quote.
Warranty:
1) Lifetime warranty on hardware;
2) FREE accessories offering once ordered our items;
3) Please contact us whenever issues occur and we would try our best to assist.
