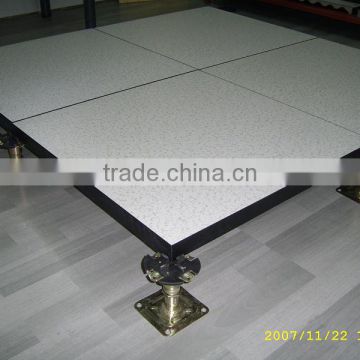

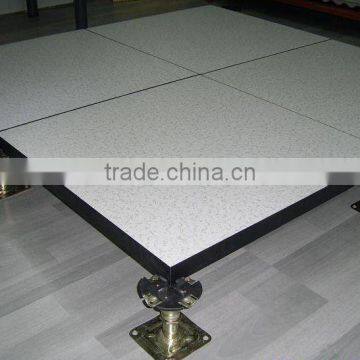

Server Room Raised Floor Tiles Calcium Panel for Intelligent Building

Vitian calcium sulphate raised access floor is specially deisgned for intelligent building to achieve easy distribution

of cables and wirings.Its six sides are fully encased with high quality galvanized steel sheet,and coreboard in the

middle is made of calcium sulphate of special formula developed by Vitian.All these make Vitian calcium sulphate

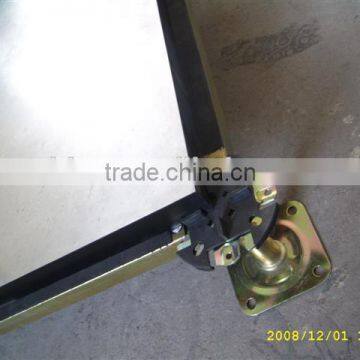

raised access floor system have high strength and durability in use.Its understructure adopts head plate with tube

rods and base plate with tube which are screwed together,rather flexible in height adjustment.

Characteristics

Full galvanized steel encapsulated, good sealing and water-proof.
High dimensional precision, strong loading ability and shockproof.
Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
Elegant appearance for paving wildly brand top tiles.
High recycled, convenient removing, saving cost, long performance life.

  server room raised floor tiles calcium panel for intelligent building

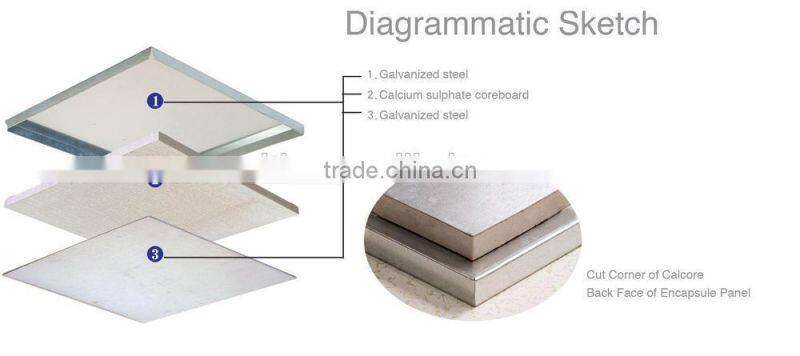

Detailed Product Sketch:

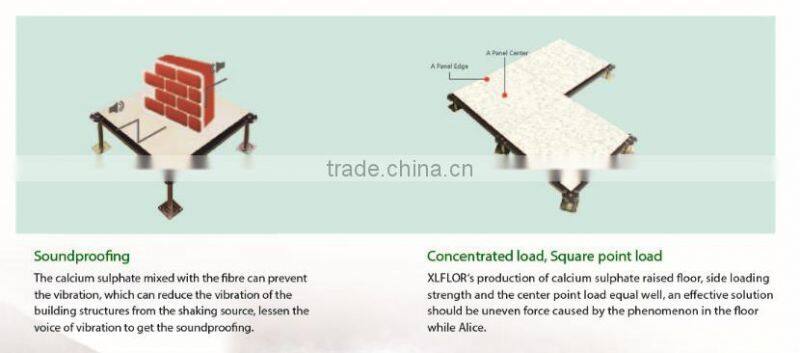

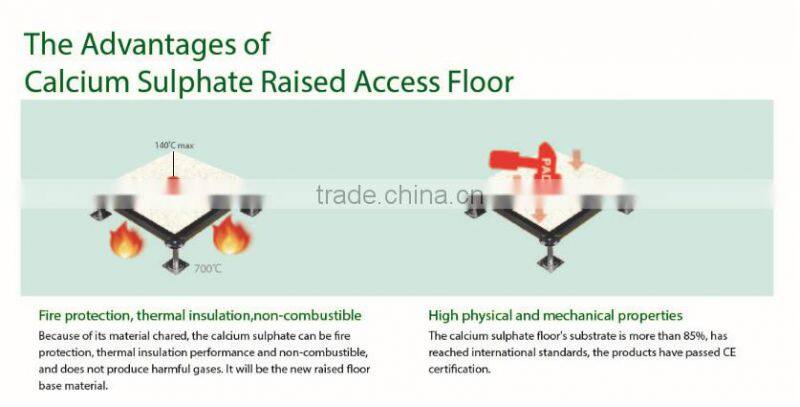

Advantages And Features:

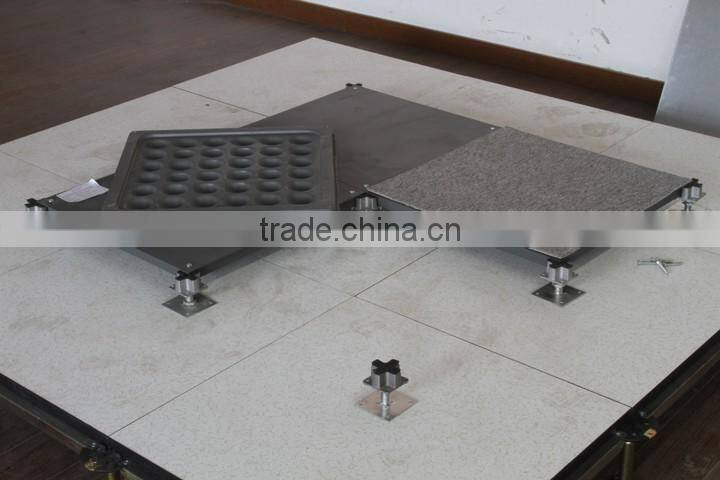

Different Lamination:

There are different lamination available for calcium sulphate access floor :HPL lamination,PVC lamination,Ceramic

surface and Carpet surface.

Advantages:

(1)Anti-static,fire-resistent,wear-resistent,chemical-resistent.

(2)Lamination with diabond glue to prevent bubble and delamination.

(3)Auto lamination line ensure presicion while laminating surface materials on bare panels.

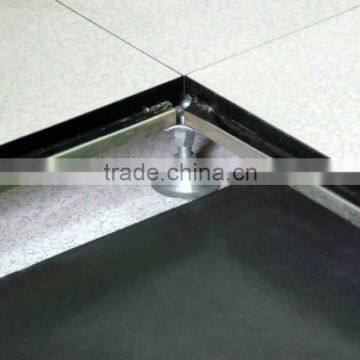

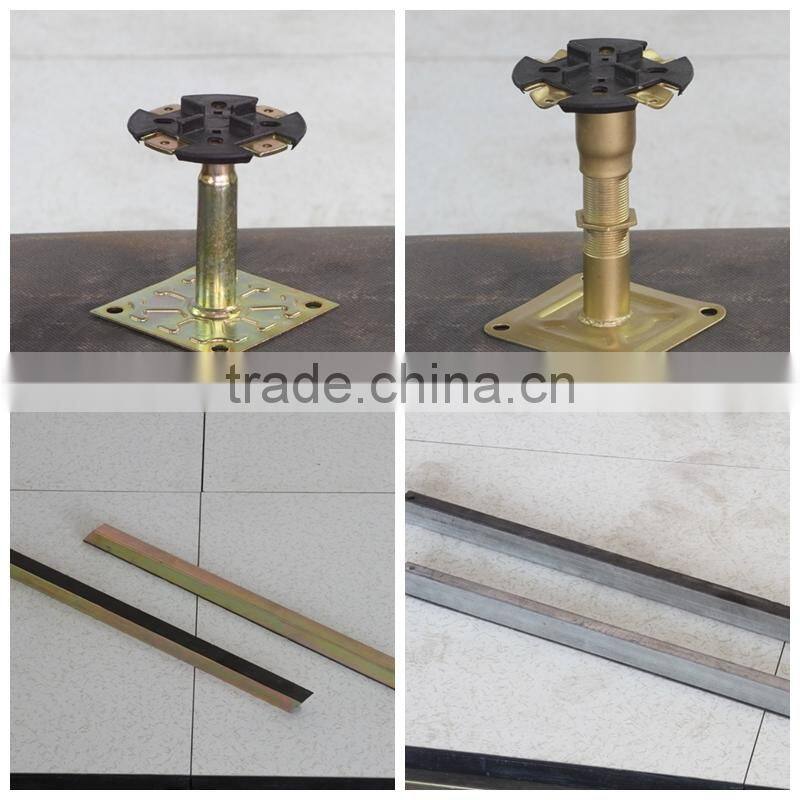

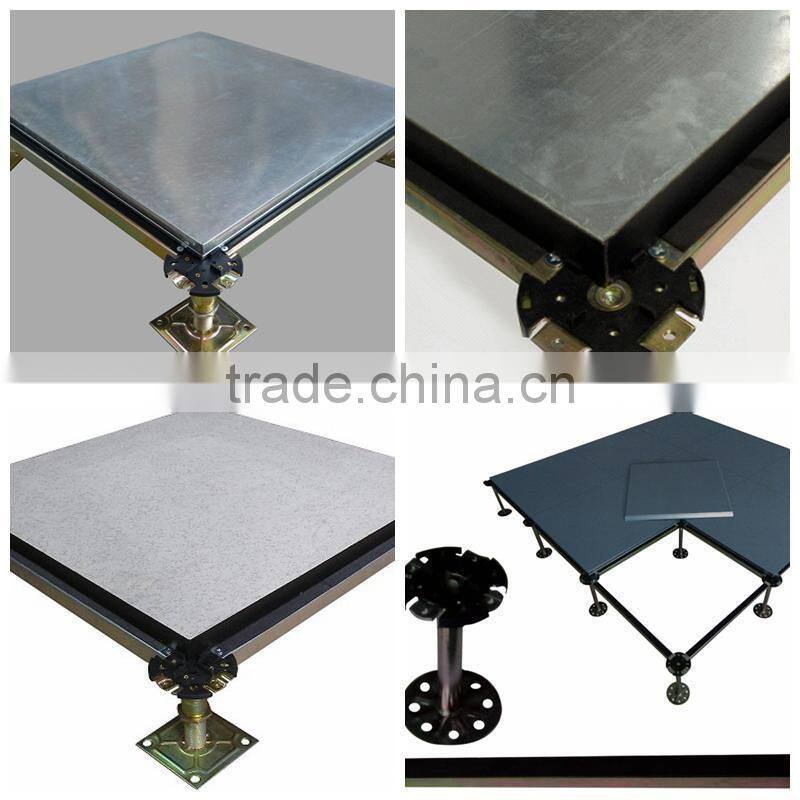

Understructure System:

The understructure system for calcium sulphate raised access floor is pedestal s and stringers.

Quality Control:

Vitian always takes the quality as life.The products are required to be multiple inspected during material purchasing,

production,package,transportation and installation.The inhouse testing lab gives the fast feedback in new products

development and mass production and assure all passes to various testing both international and national.The ISO

Quality Management System enables Vitian an outstanding quality in both production and service.

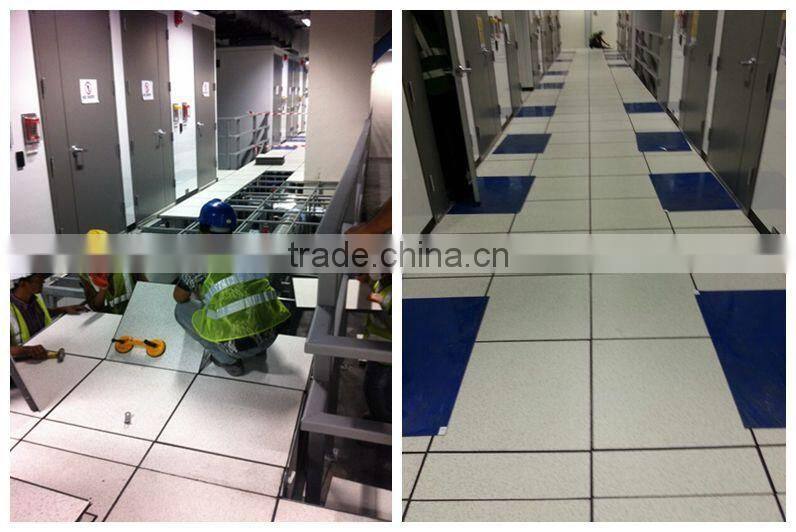

Raised access floor installation:

1. Cleaning the ground.
2. Observe the layout of room,install infrared paralled scanner ,mark paralled line on half waist of wall, then find lowest and highest point, caculate average value from ground to floor surface(this average value equals to owner's required installation height),caculate and adjust the pedestal height.
3. Choose a corner as start point ,find a parallel on wall, tie two paralleled wax wire 595mm from wall, the wax wires are hard to brake and extend ,two wires must be vertically distributed.
4. When pulling the paralleled line, screw the four pedestals. After, confirming the height and placing the first floor, stringer and pedestals must be fix with screws ,use level bar to adjust floor.At last ,lock nuts on the pedestals.
5. When pulling the paralleled line, screw the four pedestals. After, confirming the height and placing the first floor, stringer and pedestals must be fix with screws ,use level bar to adjust floor.At last ,lock nuts on the pedestals.
6. When the first floor is adjusted paralleled,vertically place two lines of floors in the direction of wax lines. Note: black glued edges between floors must be aligned and straight .
7. After vertically placing two rows of floors ,find a direction ,(can not be vertically placed). Paralleteled place row by till the last row. Note:each edge should remain one row for final cutting and placing ,When paving ,floors can not be treaded which may affect flatness.
8. After placing last row ,iron angels in each corner should be firstly fixed ,then cut all-round floor.Noted:iron angle should be paralleled to install floor, backing if iron angle should possess a support (flitch or angle bar).
9. After fixing iron angle ,perecisely meansure the size of the floor ,then cut and place it. If need placing plug ,use cutting machine to open holes as peractual dimension.
   After placing floor, check on time ,adjust the parts which are not fat. Finally fill in gap when cutting with glass cement.
10. If the temperature difference between day and night at construction site is big.(eg,high altiude ,temperate area or arctic area),all the edges should remain 3mm gap.
