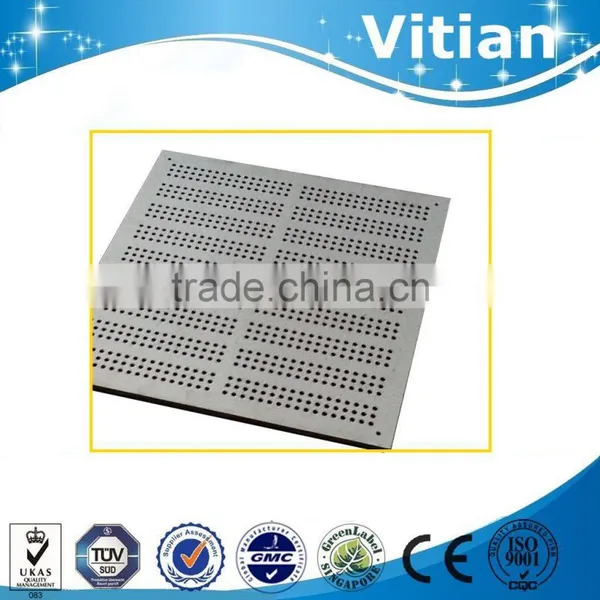

600*600mm anti-static perforated raised floor
600*600mm anti-static perforated raised floor
The structure of Perforated Panel is similar with that of anti-static steel raised floor but it has hollow cavity without foamed cement.The up and bottom steel sheets as well as laminates are all punched with ventilation holes.Matched with the steel raised floor,the Perfortaed Panel is used in the place where ventilation is required under the floor.The open ratio can be changed easily by damper from 0-40%.
VITIAN’s perforated access floor panels and air-flow grating panels provide superior cooling for managing heat loads in mission critical facilities.Perforated steel panels aluminum panels are compatible with and All Steel panels in bolted stinger systems.
Details:
600*600mm anti-static perforated raised floor
All steel structure,high mechanical strength,loading capacity and anti-impact performance2,free from dust,statin,pollution 3,the conductive surface is moisture-proof and fire-proof4,the ventilation rate is 17%-60%,meeting various demands for purification environment.
Specification:
600*600mm anti-static raised computer floor perforated panels
Point load |
5000N-7000N |
|
Load class acc. To DIN EN 12825
|
Class 5-6 |
|
Ultimate load
|
≥1000N-14000N |
|
Safety factor
|
≥2,0 |
Application
600*600mm anti-static perforated raised floor
Perforated panel, blended with cement infill panel is used for the places where air flow is necessary under the floor, such as
1. Computer rooms
2. Programmed control equipment rooms
3. Network centers
4. Electrical-controlled classrooms
5. Libraries
6. Electronic reading room
7. Places that have requirements for dust-proof and Anti-static.
Quality Control: 600*600mm anti-static perforated floor tiles
Testing Report:
ISO
1. OEM (Print Your Own Logo on the panel)
2. Superior Products Quality. (Pay Much Attention on Quality Control Part)
3. Long Time online Service. (You Will Get Prompt Reply at Any Time)
4. Fast Delivery Time. (Automatic Production Lines)
Changzhou Vitian Building Materials Co., Ltd. is located in Changzhou City, which lies to the south of the Yangtze River and to the west of Shanghai. We are a specialized manufacturer that researches, develops and produces raised access floor, OA floors, perforated floors, pedestals, stringers and other accessories. Our products are up to American CISCA standard, British MOB standard and Japan JAFA standard. The annual production of raised floor is 2,000,000 square meters.
Although with 90% of oversea market portion, Vitian is striving for further development with new technology and more varieties of goods. With the principle of creativity and the mission of customer orientation, we wish to achiever more market both domestic and international.
Shipping Information:
1) Shipping by express (samples order) or by sea (bulk order);
2) Worldwide shipping service available;
3) Please contact before order as shipping cost varies time to time.
Discounts:
1) To clients who bring order & large orders;
2) Please contact us for BETTER quote.
Warranty:
1) Lifetime warranty on hardware;
2) DISCOUNT accessories offering once ordered our items;
3) Please contact us whenever issues occur and we would try our best to assist.
