Vitian factory provide dustproof

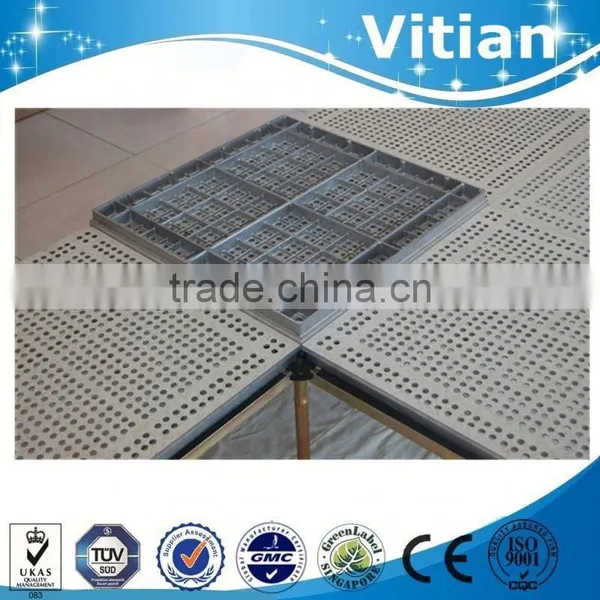

The structure of Perforated Panel is similar with that of anti-static steel raised floor but it is has hollow cavity without foamed cement. The up and bottom steel sheets as well as laminates are all punched with ventilation holes. Matched with the steel raised floor, the perforated panel is used in the place where ventilation is required under the floor. The open ratio can be changed easily by dramper from 0-40%.
Technical parameter of anti-static perforated panels
Type |
(mm) Size |
Concentrated Load (deflection=2mm) |
(N/M2) Uniform Load |
(N) Ultimate limit Load |
||||
International |
National Standard SJ/T10796 |
lb |
N |
kg |
||||
FS450 |
HDG600 30CQ |
600×600×30 |
≥450 |
≥1960 |
≥200 |
≥8850 |
≥5900 |
≤17% |
FS680 |
HDG600 35QD |
600×600×35 |
≥680 |
≥2950 |
≥300 |
≥12500 |
≥8250 |
≤25% |
FS800 |
HDG600 35QD |
600×600×35 |
≥800 |
≥3550 |
≥360 |
≥15000 |
≥10650 |
≤25% |
FS1000 |
HDG600 35BD |
600×600×35 |
≥1000 |
≥4450 |
≥450 |
≥23000 |
≥13350 |
≤36% |
Feature:
1. Durability: they were desighed to last.Their resilience against abrasion allow them to withstand rough wear.
2. Sound absorption: the acoustic characteristics of rubber contribute to reduce sound transmission and vibration in a closed environment.
3.Thermal is solators: due to their nature,rubber floorings are excellent thermal isolators,which tend to help create a nice climate throughout the year.
4.Anti slip: due to rubber inherent properties,rubber floorings have a high coefficient of friction,which makes them safe in every place where sliding control is needed.
5.Cigarette burns resistance: they are not significantly damaged by lighted cigarette butts.Only a slight stain can be caused and it's easily removed by conventional cleaning.
6.Hygienic: they are perfect for hospitals,kindegartens and old people's homes due to their smooth and non-porous surface.
7.Water resistance: they have good water resistance,easy to clean.
Application:
Quality Control:
a. If you choose Vitian Floor, all of your equipments will be longer lifetime, be more safety, and be more economical.
b. We are willing to give you some good suggestions for select products before order,
and give you more good suggestions for develop market after order.
c. We guarantee to deal with any claims, and must give you a satisfied result in the shortest time.
Changzhou Vitian Building Materials Co., Ltd. is located in Changzhou City, which lies to the south of the Yangtze River and to the west of Shanghai. We are a specialized manufacturer that researches, develops and produces raised access floor, OA floors, perforated floors, pedestals, stringers and other accessories.
Shipping Information:
1) Shipping by express (samples order) or by sea (bulk order);
2) Worldwide shipping service available;
3) Please contact before order as shipping cost varies time to time.
Discounts:
1) To clients who bring order & large orders;
2) Please contact us for BETTER quote.
Warranty:
1) Lifetime warranty on hardware;
2) FREE accessories offering once ordered our items;
3) Please contact us whenever issues occur and we would try our best to assist.
