Stainless Steel Shower Hose Tube Pipe,double-lock

Specifications

Stainless steel shower hose tube pipe,double-lock.
extremely waterproof,insulating,pull resistance,great bending performance

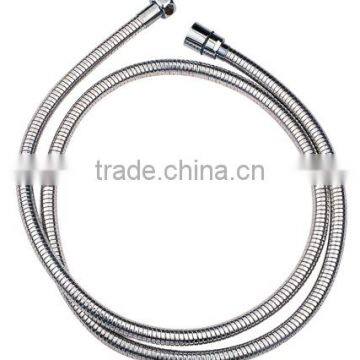

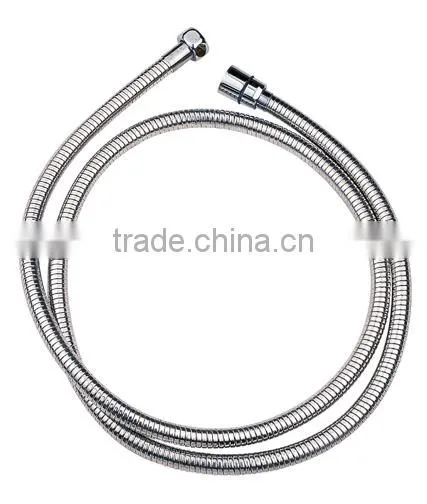

Stainless steel shower hose tube pipe,double-lock



F1/2"xF1/2" Φ14mmx1500mm



Dimensions(mm)
A:Connecting thread(tap side)       G 1/2
B:Connecting thread(shower side)    G 1/2
C:(Cone diameter)                   Φ23
G:(Functional dimension on seal depth)  8.50
I:(Tread undercut)                  1.5
K:(Total length of cone nut)        28-30
L:(Total length of hose)            1500
D:(Outside hose outer diameter)     Φ13.8+0.1/-0.1
d1:(Inside hose outer diameter)     Φ9+0.1/-0.1
d2:(Inside hose inner diameter)     Φ7+0.1/-0.1

Materials
[1] Inside hose material          PVC or EPDM
[2] Outside hose material         Brass with chromium-plating or Stainless steel
