2" to 8" Ductile Cast Iron Stem Gate Valve Price for Automatic Fire Sprinkler System

2" to 8" Ductile Cast Iron Stem Gate Valve Price for Automatic Fire Sprinkler System thumbnail-1
2" to 8" Ductile Cast Iron Stem Gate Valve Price for Automatic Fire Sprinkler System photo-1
US$ 20 - 60 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Other, Standard, Standard
Structure:
Other, flange
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Fujian Nanan City Guangwei Fire-Fighting Scie-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Other, Standard, Standard
Structure Other, flange
Pressure High Pressure
Power Other, Power: Manual, Gear, Electric, Pneumatic, Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size 1-1/2"~12"
Place of Origin Fujian, China
Model Number OS&Y, Z40/Z41/Z42
Brand Name guangwei
Application Other, fire fighting

2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system



Brief introduction

It allows for two – way flow direction and used for closing or opening the medium flow.

The wedge is replaceable without needing to remove the valve from the pipelines.

Short length structure, good sealing performance.

Simple shape, good casting process, widely used.

It is designed with straight through bore type with rising stem, outside screw & yoke, bolted bonnet and stainless steel trim. The opened and closed position of the valve is easily distinguished by the stem position.

This valve can be installed in horizontal and vertical positions in the piping systems.

The torque for opening and closing is small, so it is easy to open or close reliably and quickly.



Specification

No. Item Material
1 Valve Body Brass/ductile iron/cast iron
2 Valve Gate EPDM Coated Outside Ductile Iron
3 Bolt Galvanized
4 Sealing Ring NBR
5 Valve Cover Cast Steel,Ductile Iron
6 Valve Stem Stainless Steel
7 O-shape Sealing Ring NBR
8 Thrust Pad Bronze
9 Shaft Sleeve Bronze
10 Bolt Galvanized
11 Shaft Cover Cast Iron,Ductile Iron
12 Dust Cover NBR
13 Hand wheel Cast Steel
14 Fastening Nut Galvanized

 Norminal Diameter

Nominal Diameter(mm) D D1 N-od L H
1.0Mpa 1.6Mpa 1.0Mpa 1.6Mpa 1.0Mpa 1.6Mpa
50 165 125 4­19 180 340
65 185 145 4­19 190 370
80 200 160 8­19 205 410
100 220 160 8­19 230 450
125 250 160 8­19 255 480
150 285 240 8­23 267 550
200 340 295 8­23 12­23 295 530
250 405 350 355 12­23 12­28 335 750
300 460 400 410 12­23 12­28 360 820
350 520 460 470 16­23 16­28 381 980
400 580 515 525 16­28 16­31 406 1010
450 640 565 585 20­28 20­31 432 1270
500 715 620 650 20­28 20­34 457 1270
600 840 725 770 20­31 20­37 508 1390
700 910 840 840 24­31 24­37 610 1580
800 1025 950 950 24­34 24­40 660



1750



 2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system

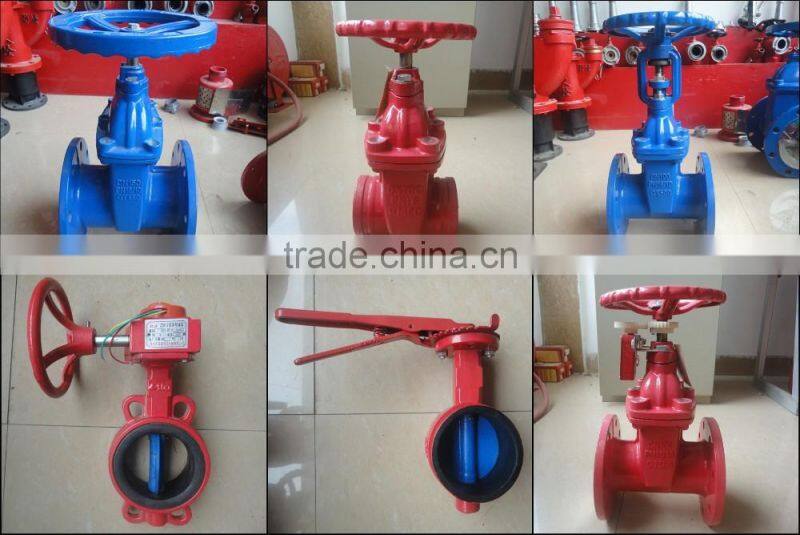

Other products

You could click the photo to link to the details.

2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system

2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system

2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system2" to 8" ductile cast iron stem gate valve price for automatic fire sprinkler system
