Home > Products > Wet alarm system > rising stem gate valve pn16
rising stem gate valve pn16
- xiamen
- L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Check | |
| Pressure | Low Pressure | Power | Other, Power: Manual, Gear, Electric, Pneumatic | |
| Material | Casting | Temperature of Media | Other | |
| Media | Water | Port Size | 1-1/2"~64" | |
| Place of Origin | Fujian, China | Brand Name | guangwei |
Product Description

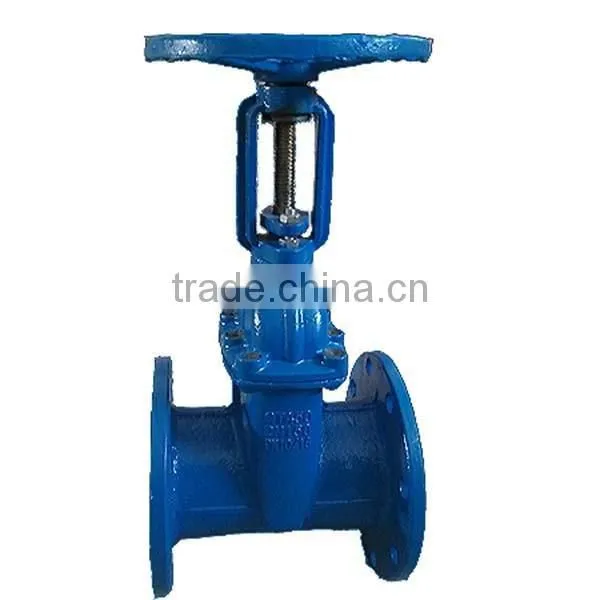

rising stem gate valve pn16
Size: Soft seat: 1-1/2" to 24"; Metal seat: 1-1/2"to 64"
Class: PN10, PN16.125LB, 150LB
Mater
Cast Iron Resilient Seated Gate Valve
Specifications:
1) Size: Soft seat: 1-1/2" to 24"; Metal seat: 1-1/2"to 64"
2) Class: PN10, PN16.125LB, 150LB
3) Type: Bolted Bonnet, non rising stem/rising stem, NBR/EPDM/brass/bronze/stainless steel seat ring.
4) Material: CAST IRON, DUCTILE IRON
5) Operation: Hand wheel, gear, square head.
Standard compliance:
1) Design and manufacture: BS5163, DIN 3352, JIS B2043, AWWA C509
2) Test and inspection: BS6755, DIN 3230, JIS B2003, API598
3) Face to face dimensions: BS5163: 1986, DIN 3202 F4-F5, JIS B2002, ANSI B16.10
4) Flanged end: BS4504, DIN 2532, JIS B2212, ANSI B16.10/ANSI B16
