ZSJZ-type Flow Switch(Water Flow Detector)
1. ISO and CCC certified
2. Quick delivery

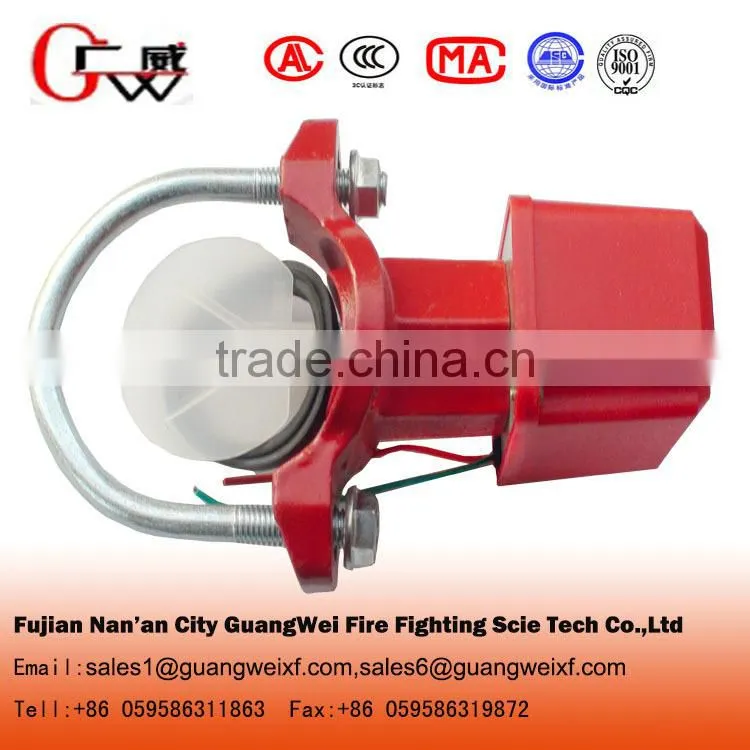

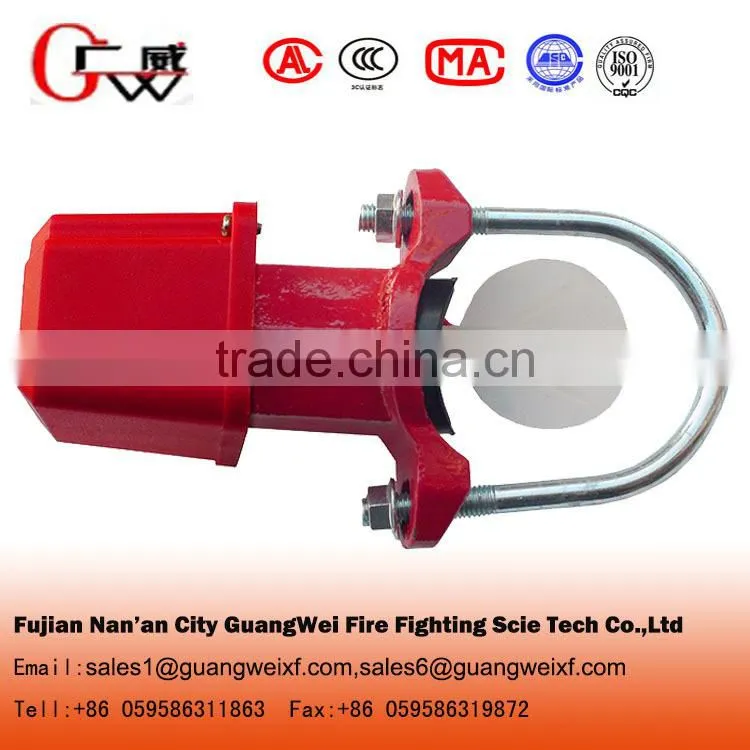

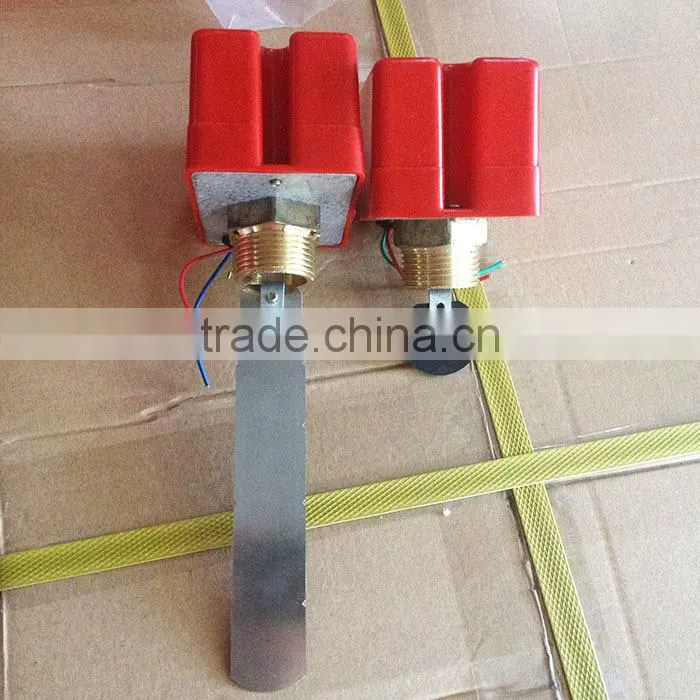

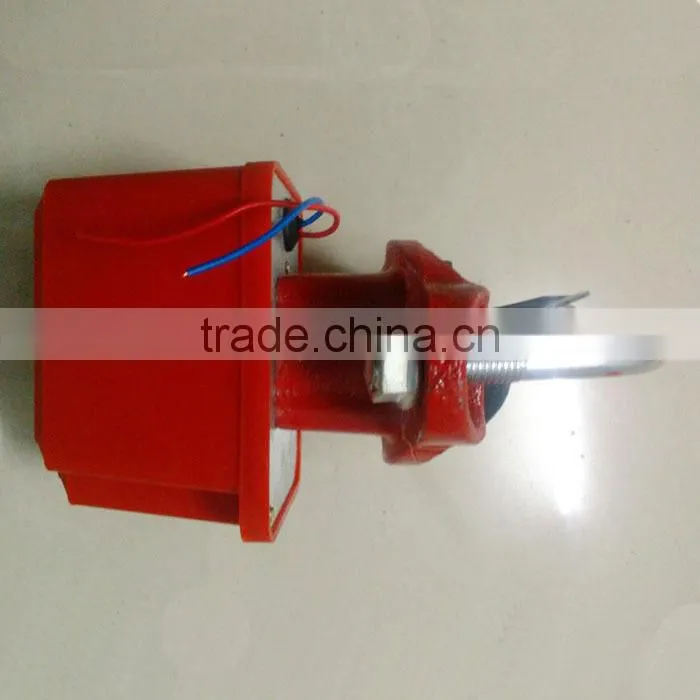

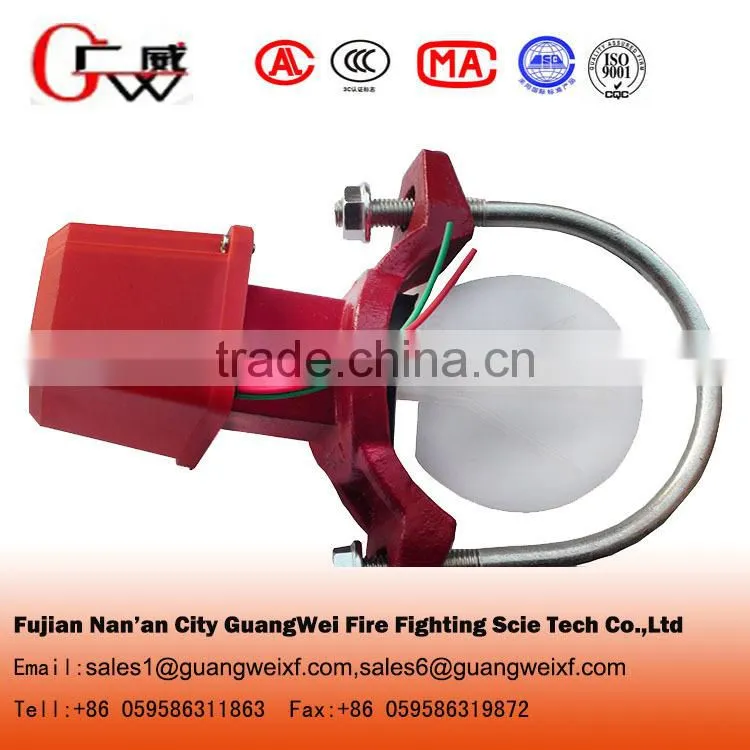

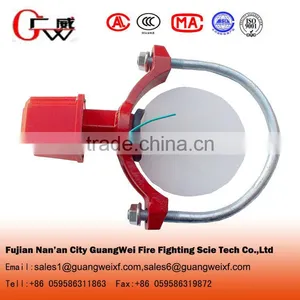

ZSJZ-type Flow Indicator(Water Flow Detector)
Type: thread, jointing, saddle, flange
Thread type: ZSJZ/S50-150
Welded type: ZSJZ/H50-150
Saddle type: ZSJZ/A50-200
Flange type: ZSJZ/F50-250
Specification:
1) Size: 50mm, 65mm, 80mm, 125mm, 150mm, 200mm
2) Seal test pressure: 2.4Mpa
3) Working pressure: 0.14-1.2Mpa
4) Active standard: 15L/min
| Characteristics and Functions | |
| Model | ZSJA/H |
| Type | welded connect water level controller water flow indicator |
| Material | Brass, Ductile Iron |
| Norminal diameter | DN50~DN200 |
| Norminal working pressure | 1.2Mpa |
| Time delay | 2 to 90s |
| Sensitivity | 15 to 37.5 L/min |
| Contacts capacity | AC220V/3A ,DC24V/1A |
| Seal test pressure | 2.4Mpa |
| Pressure | High Pressure welded type automatic water valve flow control |
| Basic Parameters of Water Flow Indicator | ||||
| Type | Saddle type | Flange type | Welded type | Thread type |
| Model | ZSJZ/A | ZSJZ/F | ZSJZ/H | ZSJZ/S |
| Norminal diameter | DN50, DN65, DN80, DN100, DN120, DN150, DN200 | |||
| Norminal working pressure | 1.2Mpa | |||
| Time delay | 2 to 90s | |||
| Sensitivity | 15 to 37.5 L/min | |||
| Contacts capacity |
AC220V/3A ,DC24V/1A |
|||
Other products
Q:Are you a factory or trading company?
We are a factory specialized in producing fire-fighting equipments.
Q: How could I visit your company?
We are located in 176 RIVER STREET UNITED LIANTANG NANAN CITY FUJIAN CHINA, about 1 hour from Guangzhou by air. We could take you up from Jinjiang or Xiamen airport.
Q: Could I get some samples?
Glad to offer the samples for free.
Q: Is OEM available?
Yes, we would try our best to meet your requirements.
Q: What's the term of payment?
T/T, L/C, West union, Paypal, Cash, etc.
