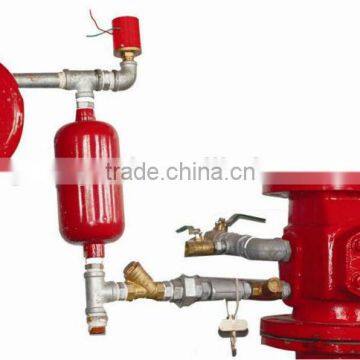

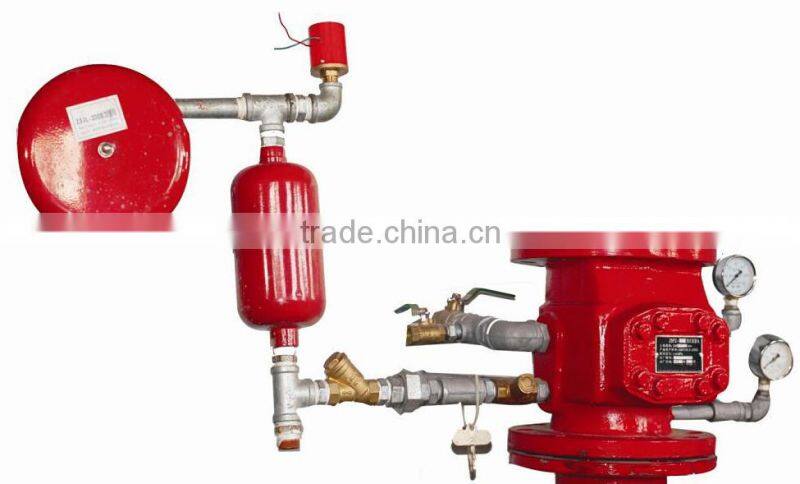

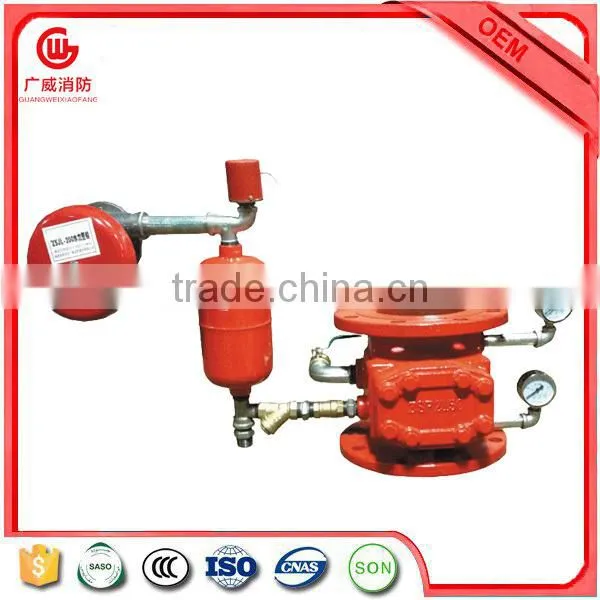

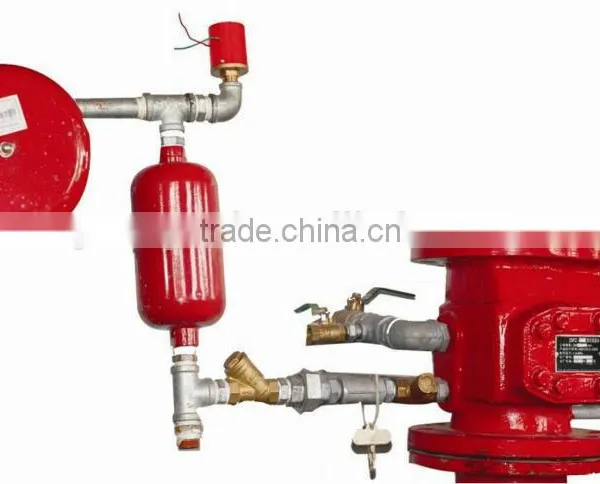

Help CenterFire Water Wet Alarm Valve,fire Alarm Check Valve
Related Products
-
Flange Type Water Flow IndicatorNegotiableMOQ: 1 Piece -
Water Flow Indicator Saddle TypeNegotiableMOQ: 1 Piece
-
Flange Type Flow Indicator for Fire Fighting SystemNegotiableMOQ: 1 Piece
-
Resilient Seated Gate Valve PN16 (Dark Bar )NegotiableMOQ: 10 Sets
-
Low Water Pump Flow Switch PriceUS$ 4 - 20MOQ: 5 Pieces

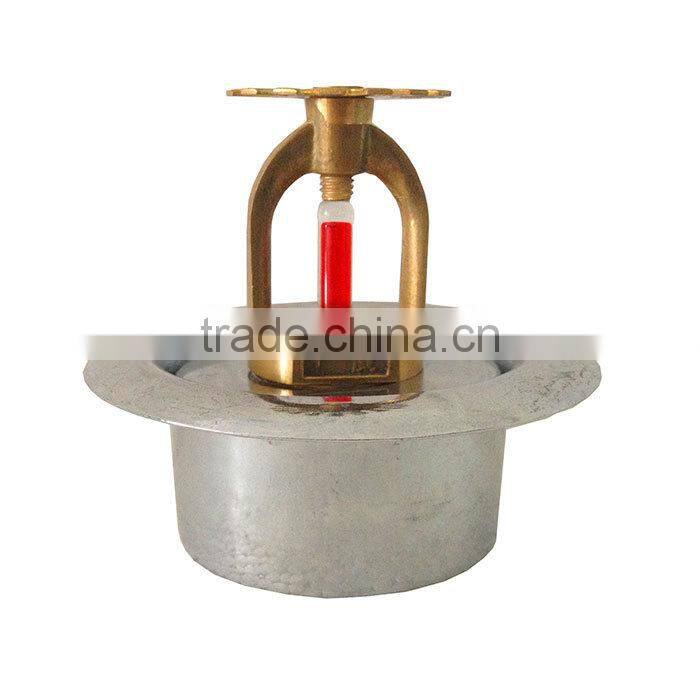

ZSFZ system is a commom regular extinguishing system.It is ccomposed of wet alarm valve,retarder,water motor alarm and other parts(such as,pressure switch,water flow detector,sprinkler head,etc)This system is long-termly under standby working conditions and pipe network insider is filled with pressure.When protected area happens fire disaster,enveronmental temperature increasing,temperature sensitive parts on sprinkler head,i.e,glass ball,acting ,seal set falling off,it will automatically start system.And then it will directly spray water to fire disaster happening area and also emit alarm signal to alarm,to put out fire and control fire conditions.
Main techincal parameter
| Technical Parameter | ||||||
| Model | Nominal diameter | Nominal pressure | Height(mm) | corresponding parameter on connection(mm) | Flange external diameter(mm) | |
|
Flange plate srew centre distance |
bolt hole | |||||
| ZSFZ100 | DN100 | 1.6Mpa | 244 | Φ180 | 8XΦ18 | Φ220 |
| ZSFZ125 | DN125 | 244 | Φ180 | 8XΦ18 | Φ250 | |
| ZSFZ150 | DN150 | 273 | Φ240 | 8XΦ22 | Φ285 | |
| ZSFZ200 | DN200 | 294 | Φ295 | 12XΦ22 | Φ340 | |
Packaging & Delivery
| Packaging Detail: | Standard export packing: Several pcs in a Polybag, several polybags in a cartons, several cartons in a wooden case, wooden pallet As per the customers' request. |
| Delivery Detail |
15-30days based on the quantity |
1. CCC Listed fire sprinkler |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FAQ
1. Do you can supply the samples?
we can supply the samples by free if the qtys is not more,
but the clients should pay for the express fees.
2.Do you have the MOQ?
Because we have many types and sizes of goods, the detailed Minimum qtys really are very difficult to confirm, but the total amout should be not less than USD3000.00
3. Can you add some logo on the products?
Yes, we can. but we usually have the qtys requirements.
4. Are you able to design or explore a new products for us?
yes, we are able to, only the clients can supply the drawings or samples.
