Fire foam generator
1.Brief information
Designed as air aspirating discharge devices, foam generator is used principally for the protection of dikes, open floating-roof storage tanks, and rim seals, where low-velocity foam streams are desired. Foam generator generally is installed in the line of a semi-fixed or fixed foam fire-protection system, mounted either horizontally or vertically.
Foam generator's feature of all-brass construction is for using in harsh and corrosive environments. Foam generator air inlets is covered with stainless mesh, and supplied with standard NPT threaded inlets and outlets.
2.Technical Parameter
Name: Foam generator
Nominal Working Pressure:0.3-0.6 Mpa
Rated Working Pressure:0.5Mpa
Foam Expansion Ratio:≥6%
25% Imbibition Time:≥150s
Material:Carbon Steel
Size | Working pressure Mpa | Rate flow mixture liquid(L/S) | Foam expansion | Flow series (k) | Inlet flange | Outlet flange | Height (mm) |
PCL4 | 0.3-0.6 | 4 | ≥6 | 107 | 50 | 65 | 155 |
PCL8 | 8 | 215 | 65 | 80 | 160 | ||
PCL16 | 16 | 429 | 100 | 125 | 185 | ||
PCL24 | 24 | 644 | 125 | 150 | 200 |

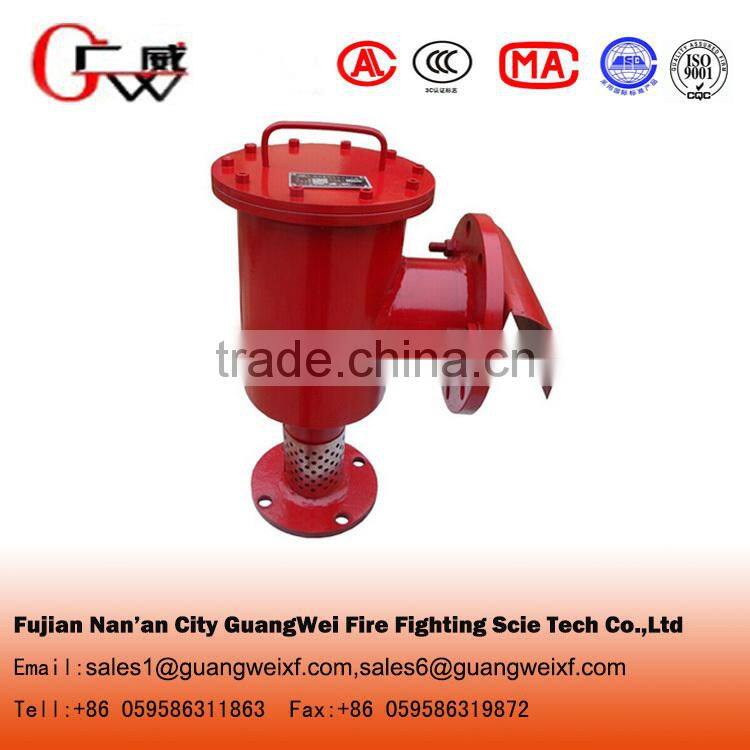

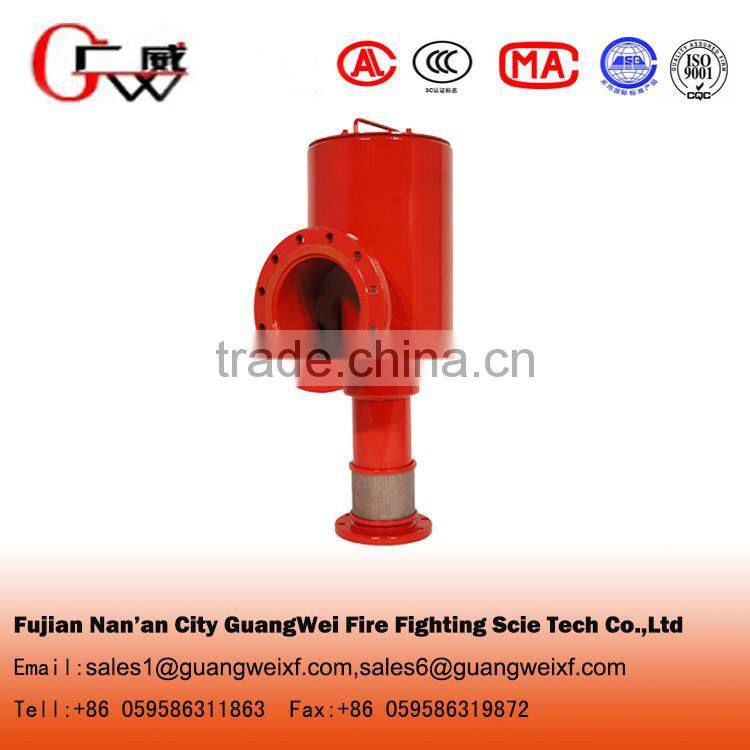

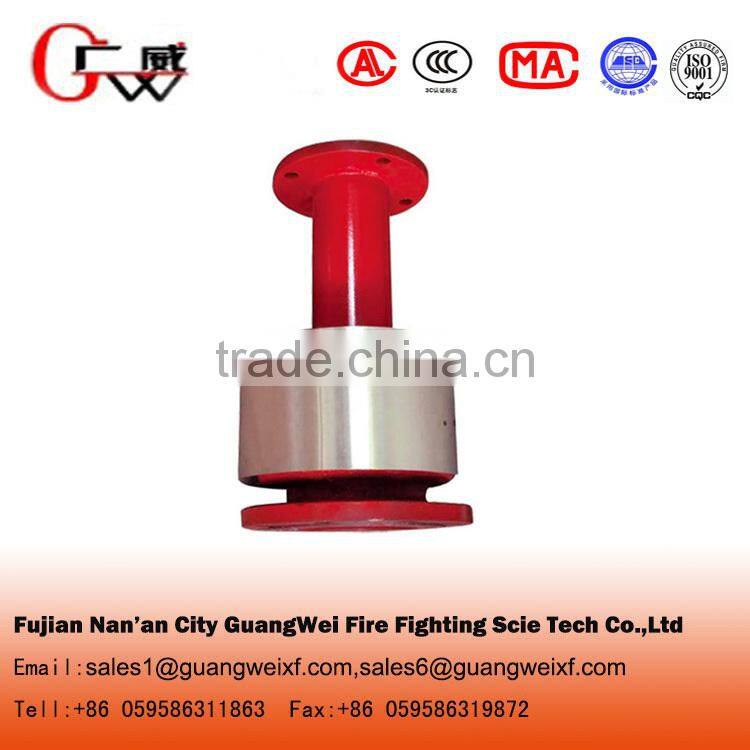

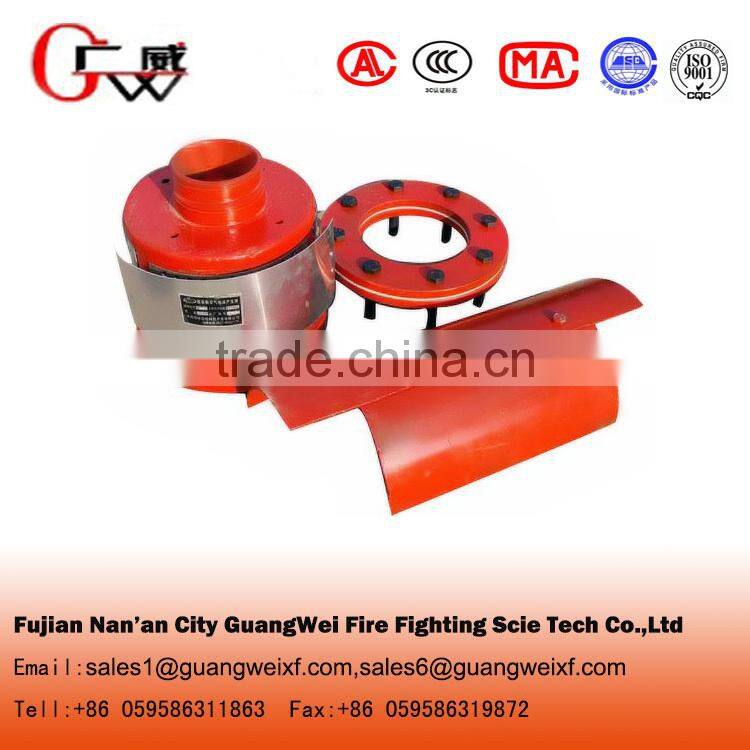

3.Pictures
You could click the photo to link to the details.
