Foam extinguishing system fire foam bladder tank
- 50 Set / Sets per Month
- Xiamen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GW | |
| Model Number | PHYM |
Product Description

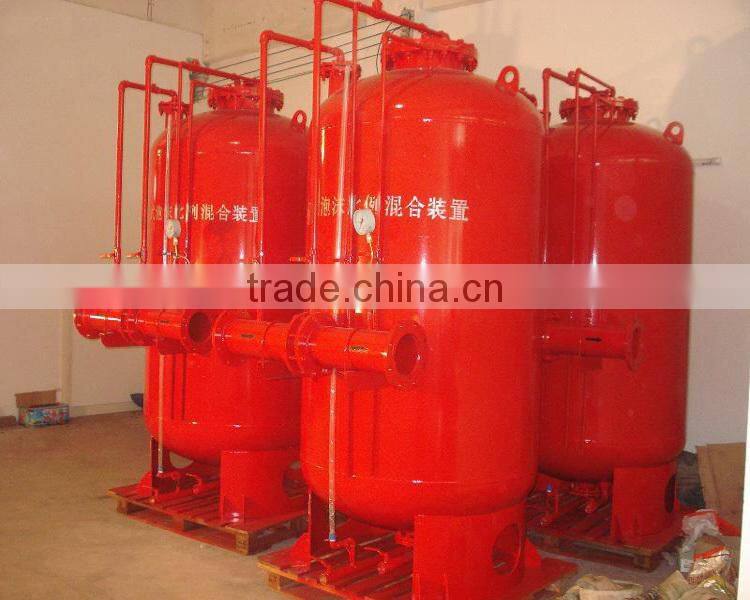

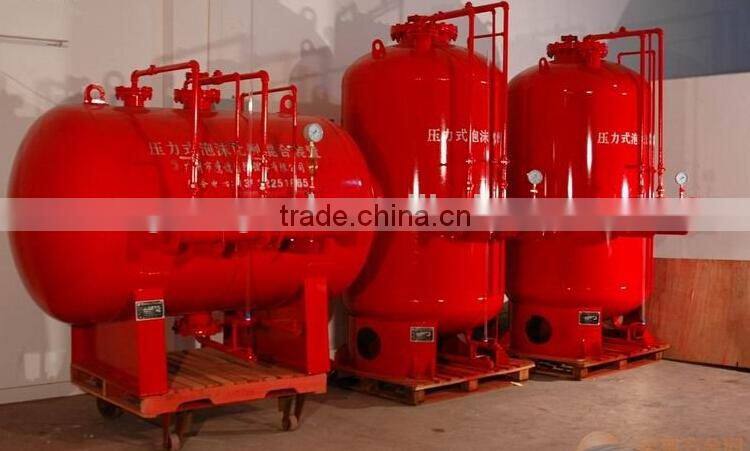

Foam extinguishing system fire foam bladder tank
Product desctiption
The foam bladder tank, together with ratio controllers, form a balanced pressure proportioning system used to mix water and fire fighting foam together to generate an effective extinguishing medium.
The bladder tank technology is a reliable and precise mixing method that is widespread in the fire fighting industry. This method allows the water/foam ratio to remain stable by automatically adjusting to the variable flow rates and pressure conditions that may occur during system operation.
This feature makes bladder tanks particularly suitable for multiple hazard systems, sprinkler systems and any other system operating under variable, non predictable, flow and pressure conditions.
Technical Parameter
| Ratio Of Foam Liquid | 3%- 6% |
| Installing Type | Horizontal,Vertical |
| Volume Capacity | 500L/1000L/1500L/3000L/4000L.etc |
| Rate Of Flow | 80L/S |
| Media | Water,Foam,foam mixture,such as AFFF3% |
| Working Pressure | 0.8 Mpa |
| Foam Tank Color | Red Or any color you requeted |
| Certificate | ISO,CCC |
| Foam Tank Material | Carbon steel |
| Fire Foam Tank Model | PHYM |
| Foam Bladder Tank Accessary | Foam tank,ball valve,Foam Capsules |
Manufactured Standard | GB20031-2005 |

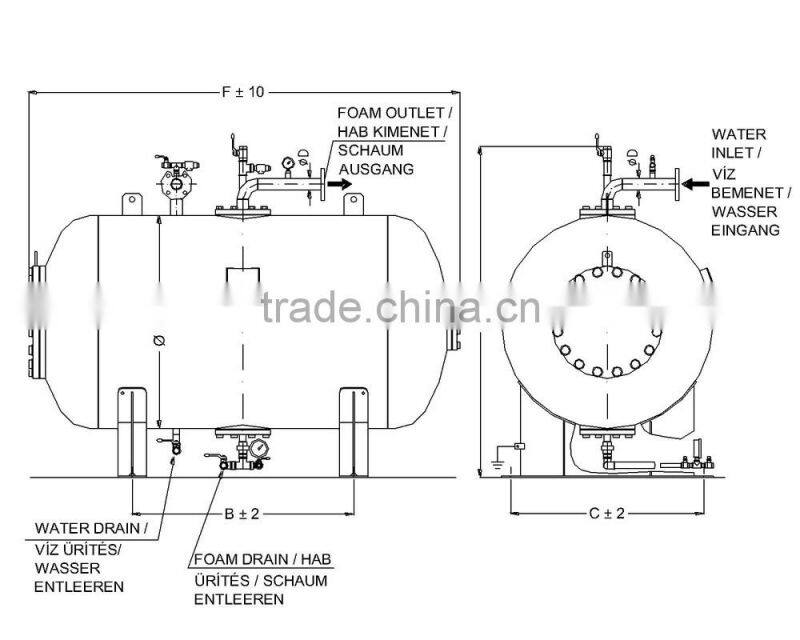

Structural Drawing
You could click the photo to link to the details.
