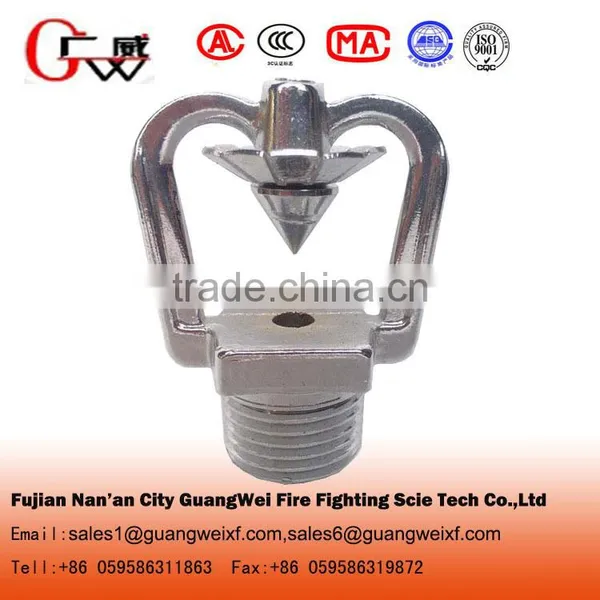

Open spray fire sprinkler system water mist fire sprinkler
ZSTW water mist fire sprinkler :the sprinkler plays a role of separating and absorbing the smoke of the fire . It is wildly used in large-scale factories, workshops, halls, theaters, performance stages, building windows and doors, holes and other areas, or between two neighbour buildings.
Brief specification
Model Number: ZSTWB
Type: ZSTWB/ High speed
Certificate: ISO or CCCF
Material: Brass/Stainless steel
Color: Nartual brass or chrome
Connecting thread: 15mm(1/2")/ 20mm(3/4") /25mm(1”)
Working Pressure: 1.2Mpa/12bar
Flow coefficient: 16L/min,21L/min,27L/min,34L/min, 42L/min, 53L/min, 68L/min
Spraying angle: 90 degree to 120 degree
Use: Open spray fire sprinkler system
Main Technical Parameter:
| Model | Flow coefficient(K) | Spraying angle | Connect thread | Type |
| ZSTWB-16-90 | 16 | 90° | R1/2 | Centrifugal |
| ZSTWB-16-120 | 16 | 120° | R1/2 | |
| ZSTWB-21-90 | 21 | 90° | R1/2 | |
| ZSTWB-21-120 | 21 | 120° | R1/2 | |
| ZSTWB-27-90 | 27 | 90° | R3/4 | |
| ZSTWB-27-120 | 27 | 120° | R3/4 | |
| ZSTWB-34-90 | 34 | 90° | R3/4 | |
| ZSTWB-34-120 | 34 | 120° | R3/4 | |
| ZSTWB-42-90 | 42 | 90° | R3/4 | |
| ZSTWB-42-120 | 42 | 120° | R3/4 | |
| ZSTWB-53-90 | 53 | 90° | R1 | |
| ZSTWB-53-120 | 53 | 120° | R1 | |
| ZSTWB-68-90 | 68 | 90° | R1 | |
| ZSTWB-68-120 | 68 | 120° | R1 |
You could click the photo to link to the details.
