High Pressure Mist Spray Nozzle for Fire Fighting Open System

High Pressure Mist Spray Nozzle for Fire Fighting Open System photo-1
High Pressure Mist Spray Nozzle for Fire Fighting Open System photo-2
US$ 0.5 - 6 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
guangwei
Model Number:
ZSTW
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name guangwei
Model Number ZSTW

High pressure mist spray nozzle for fire fighting open system



ZSTW water mist fire sprinkler :the sprinkler plays a role of separating and absorbing the smoke of the fire . It is wildly used in large-scale factories, workshops, halls, theaters, performance stages, building windows and doors, holes and other areas, or between two neighbour buildings.



Brief specification

Model Number: ZSTWB

Type: ZSTWB/ High speed

Certificate: ISO or CCCF

Material: Brass/Stainless steel

Color: Nartual brass or chrome

Connecting thread: 15mm(1/2")/ 20mm(3/4") /25mm(1”)

Working Pressure: 1.2Mpa/12bar

Flow coefficient: 16L/min,21L/min,27L/min,34L/min, 42L/min, 53L/min, 68L/min

Spraying angle: 90 degree to 120 degree

Use: Open spray fire sprinkler system



Main Technical Parameter:

Model        Flow coefficient(K) Spraying angle Connect thread Type
ZSTWB-16-90 16 90° R1/2
Centrifugal
ZSTWB-16-120 16 120° R1/2
ZSTWB-21-90 21 90° R1/2
ZSTWB-21-120 21 120° R1/2
ZSTWB-27-90 27 90° R3/4
ZSTWB-27-120 27 120° R3/4
ZSTWB-34-90 34 90° R3/4
ZSTWB-34-120 34 120° R3/4
ZSTWB-42-90 42 90° R3/4
ZSTWB-42-120 42 120° R3/4
ZSTWB-53-90 53 90° R1
ZSTWB-53-120 53 120° R1
ZSTWB-68-90 68 90° R1
ZSTWB-68-120 68 120° R1



Factory testing

High pressure mist spray nozzle for fire fighting open system

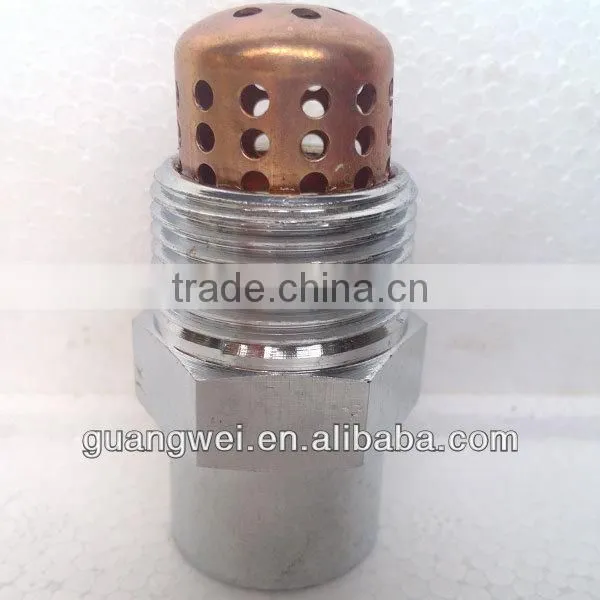

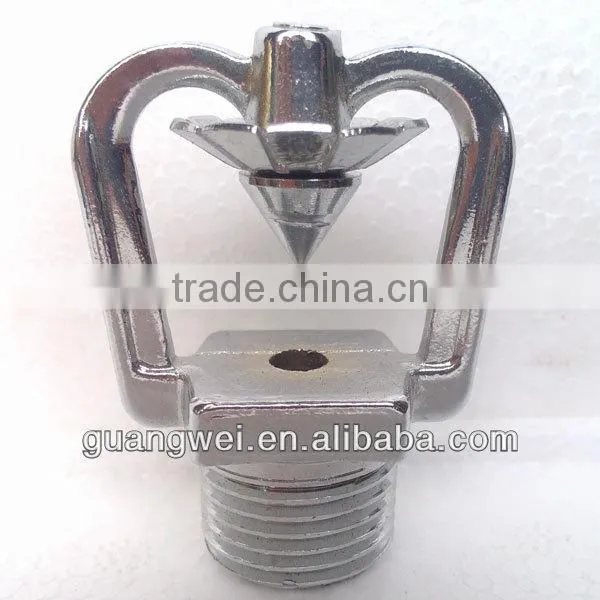

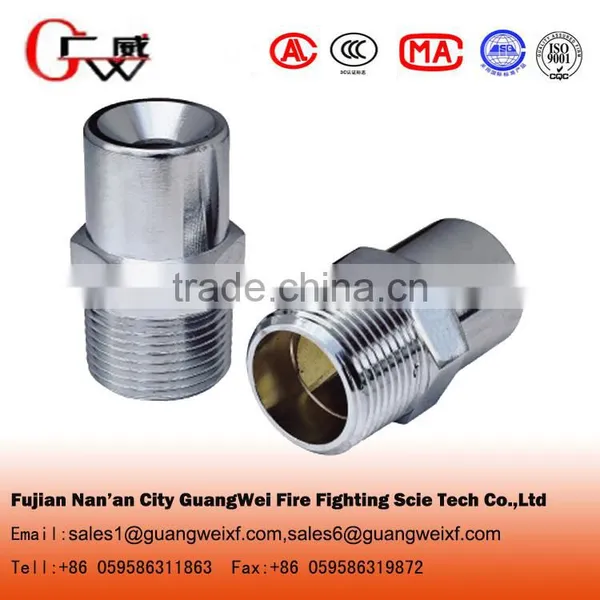

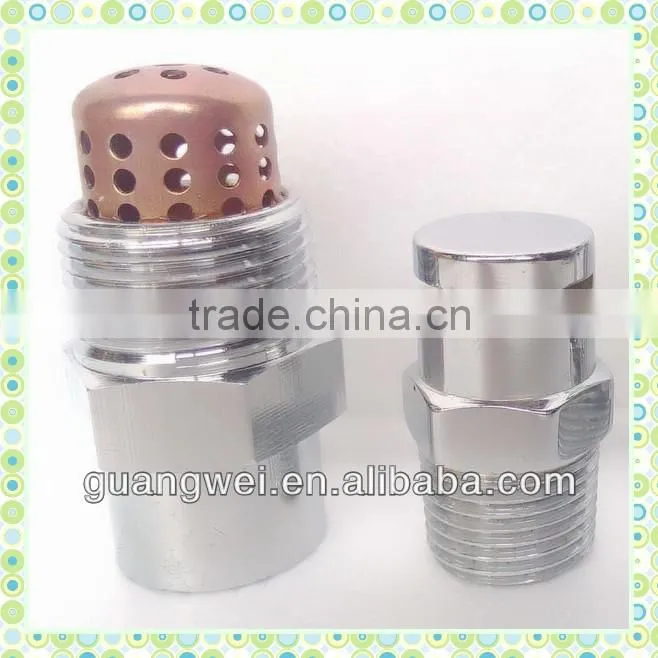

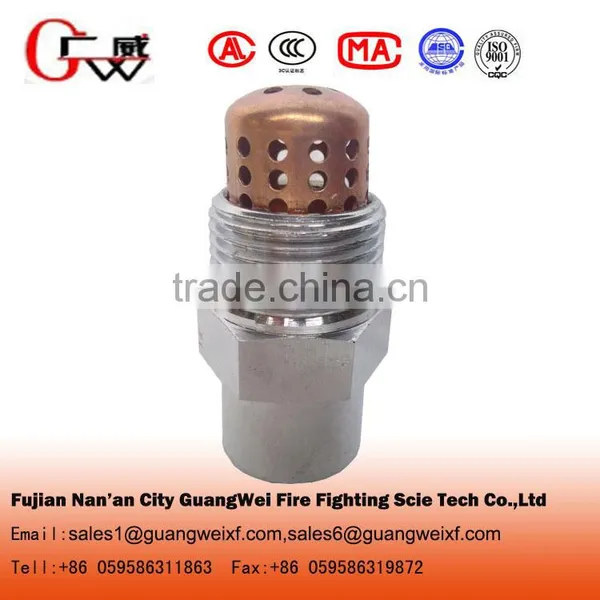

 Products photoes

High pressure mist spray nozzle for fire fighting open systemHigh pressure mist spray nozzle for fire fighting open systemHigh pressure mist spray nozzle for fire fighting open system
