fire water monitor for fire fighting

FOB Price

USD $320 - $500 / Set

5 Sets(Min.Order)

Product Details

Place of Origin:

Fujian, China

Brand Name:

Model Number:

PS20-PS80

fire water monitor for fire fighting

1.Brief information

a. Wireless electric remote control drive

b. Stable performance, flexible operation and easy to maintenance.

c. Low inlet pressure

d. Large flow and range far

e. Light weight and small volume.

f. It can spray in close distance, remote monitoring.

g. It can spray water column and water mist use different gun head.

2.Technical Parameter

Water Flow Rates	20L/S,30L/S,40L/S,50L/S,60L/S,70L/S,80L/S
Jetting Range	From 48 meters to 80 meters,it depends on the working pressure
Working Pressure	0.8 Mpa,0.9Mpa,1.0Mpa,1.2Mpa
Connection type	Flange type
Body Material	Stainless Steel 304,Cast iron,Ductile iron
Sealing Material	NBR
Painting Color	Red,RAL3000
Flange Size	80mm,100mm
Applicable Medium	Water,Foam,foam mixture,such as AFFF3%,AFFF6%
Updown Turning angle	>70 degree
Horizontal Turning Angle	>180 degree
Installation Type	Fixed type
Working Type	Manual type
Manufacture Standard	GB50338-2003
Model Number	PS

Model	PS20	PS30	PS40	PS50	PS60	PS70	PS80
L/S	20	30	40	50	60	70	80
Working Pressure(Mpa)	0.8	0.8	0.8	0.8	0.9	0.9	0.9
Max Working Pressure(Mpa)	1.0	1.0	1.0	1.0	1.2	1.2	1.2
Flange Connection(mm)	DN80	DN80	DN80	DN80	DN100	DN100	DN100
Water Jetting Range(m)	≥ 48	≥ 55	≥ 60	≥ 65	≥ 70	≥75	≥80
Horizontal Angle (Degree)	0-360	0-360	0-360	0-360	0-360	0-360	0-360
Max angle of elevation (Degree)	70	70	70	70	70	70	70
Max Angle Of Depression (Degree)	-70	-70	-70	-70	-70	-70	-70

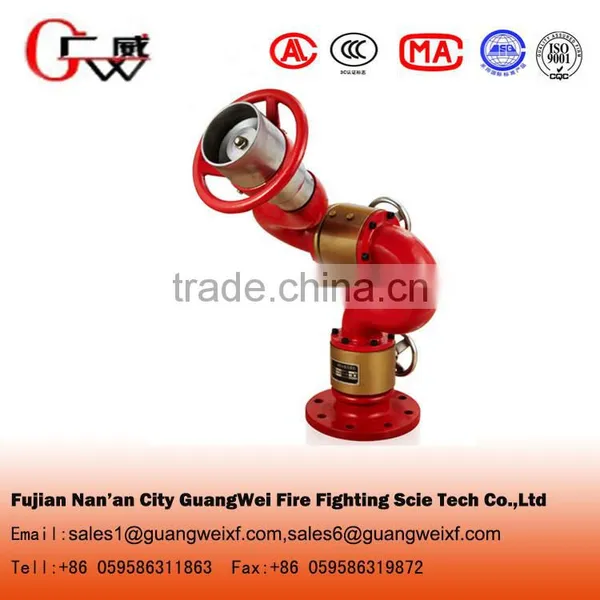

3. Pictures
