SN50 & SN65 Indoor Fire Hydrants Valve

fire hydrant

 pecifications

1.indoor hydrant 's Manufacturer
2.Model: SN 50 &SN65
3.CCCF CERTIFICATE

indoor fire hydrant

Model: SN 50 &SN65
CCCF CERTIFICATE

Indoor fire hydrants valve called fire plug in USA is a connector to fire water supply with the valve interface,  used for factory, warehouse, high-rise buildings, public buildings and ship . normally installed in fire hydrant box, with fire hoses and water gun or wait for equipment supporting the fire extinguishment.

A fire hydrant (also known colloquially as a fire plug in the United States or as a johnny pump in New York City, because the firemen of the late 19th century were called Johnnies ), is an active fire protection measure, and a source of water provided in most urban, suburban and rural areas with municipal water service to enable firefighters to tap into the municipal water supply to assist in extinguishing a fire.

Operation

A hose is attached to the fire hydrant, then the valve is opened to provide a powerful flow of water, on the order of 350 kPa (50 lbf/in²) (this pressure varies according to region and depends on various factors including the size and location of the attached water main). This hose can be further attached to a fire engine, which can then use a powerful pump to boost the water pressure and possibly split it into multiple streams. The hose may be connected with a threaded connection or a Storz connector. Care should be taken not to open or close a fire hydrant too quickly, as this can create a water hammer which can damage nearby pipes and equipment. The water inside a charged hoseline causes it to be very heavy and high water pressure causes it to be stiff and unable to make a tight turn while pressurized. When a fire hydrant is unobstructed, this is not a problem, as there is enough room to adequately position the hose.

Product name: Double valves and double outlets indoor fire hydrant with decompression and steady pressure

Model: SNSSW65-I-A-F

Material: made of cast iron.

Inlet interface: 65 mm / 2.5 inch

Intake type: cylindrical pipe female thread

Intake Diameter: G3

Outlet type: cylindrical pipe male thread with duct buckle

Outlet Diameter: 65 mm / 2.5 inch

Rated working pressure: 1.6 Mpa

Height of valve opening: 23 mm

For water and foam mixed liquid only

Standard: certification: ISO9001 in accordance with GB3445 china national standard

Note:

All above hydrant are auto-discharge and quick start-up type. (Freeze-proof patents)

1. DN100mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 12.4KG) for freeze-proof regulator. Weight of elbow:17.3KG.
2. DN150mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 27.5KG) for freeze-proof regulator. Weight of elbow: 35.5KG.

3. Sructural mode and specification:

   1. Single valve with single hydrant for indoor (SN50, SN65)



   2. Single valve with double hydrants for indoor (SNS80*65, SNS65*65)



   3. Double valves with double hydrants for indoor (SNSS65, SNSSW65-I)



   4. Rotary indoor fire hydrant (SNZ65)



   5. Pressure reducing and stabilizing fire hydrant (SNW65-I)



   6. Rotary pressure reducing and stabilizing fire hydrant (SNZW65-I)

   1.  Listed fire sprinkler

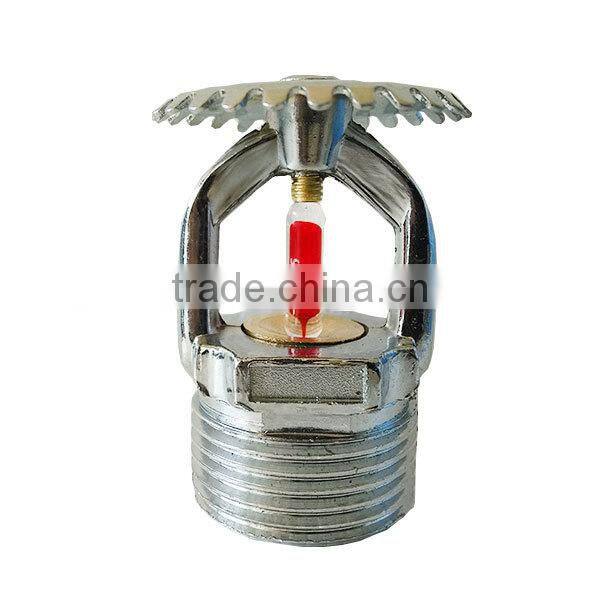

   Model: GW001 Style: Upright fire sprinkler Size: R1/2” or NPT 1/2” Material: Brass Plating: Chrome, Natural brass Working pressure : 12bar Operating temperature ::57°C/68°C/79°C/93°C/141°C	Model:GW002 Style: Pendent fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting, Blue painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141° C	Model:GW003 Style: Sidewall fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting, Blue painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141°
   Model: GW004 Pendent or Upright sprinkler with escutcheon Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Natural brass Plating: Brass finished Working pressure : 10bar Operating temperature : 57°C/68°C/79°C/93°C/141°C	Model:GW005 Style: Pendent or Upright fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141° C	Model: GW006   ZSTDY15-68°C Concealed pendent fire sprinkler Style: Pendent Size: R1/2” and NPT 1/2” Material: Brass Working pressure : 12bar Operating temperature :  57°C/68°C/79°C/93°C/141° C

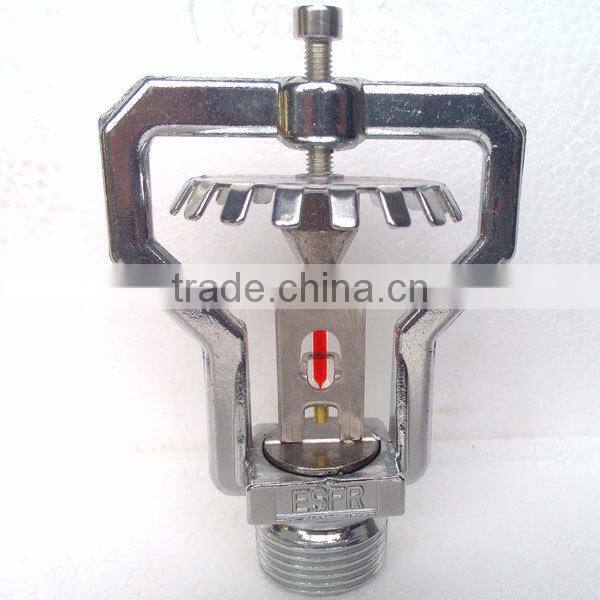

   ESFR fire sprinkler Model: GW007 ESFR20 Style: Pendent and Upright Size: R3/4” and NPT R3/4”” Material: Brass Working pressure: 12bar Operating temperature: 68°C	Fusible alloy fire sprinkler Model: GW008 Y-ZSTX15-72°C Style: Pendent and Upright Size: R1/2” and NPT R1/2” Material: Brass Working pressure: 12bar Operating temperature: 72°C	Upright or pendent fire sprinkler Model: GW009 T-ZSTZ15-68°C Size: R1”and NPT 1” Material: Brass Working pressure : 12bar Operating temperature : 68°C

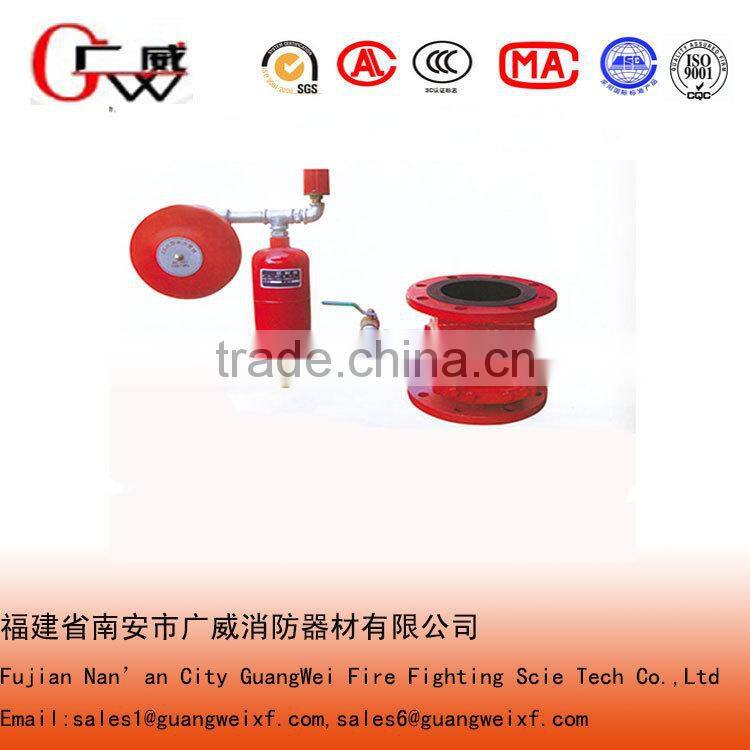

   Water flow indicator Model:GW010 Size:ZSJZ DN50-200 Material: Ductile Iron Working pressure:1.2Mpa Sensitivity :15 to 37.5 L/min Contacts capacity: AC220V/3A ,DC24V/1A	Wet alarm check valve Model:GW011 Size:ZSFZ DN80-200 Material: Ductile Iron Working pressure:1.6Mpa Flux(l/min): 15s	ZSFM Deluge valve Model:GW012 Size:ZSFZ DN65-200 Material: Ductile Iron Working pressure:1.2Mpa The pressure of alarm oral area:  ≥0.05Mpa
