Sn65 Fire Hydrant Valve Used for Indoor Fire Hydrant System With Fire Hydrant Hose and Cabinet

sn65 fire hydrant valve used for indoor fire hydrant system with fire hydrant hose and cabinet

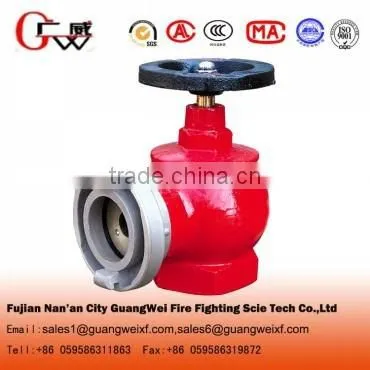

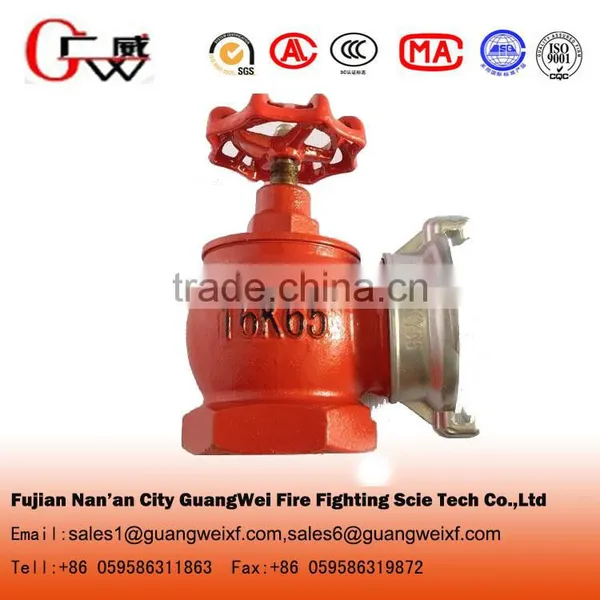

Model: SN 50 &SN65
CCCF CERTIFICATE

Indoor fire hydrants valve called fire plug in USA is a connector to fire water supply with the valve interface,  used for factory, warehouse, high-rise buildings, public buildings and ship . normally installed in fire hydrant box, with fire hoses and water gun or wait for equipment supporting the fire extinguishment.

A fire hydrant (also known colloquially as a fire plug in the United States or as a johnny pump in New York City, because the firemen of the late 19th century were called Johnnies ), is an active fire protection measure, and a source of water provided in most urban, suburban and rural areas with municipal water service to enable firefighters to tap into the municipal water supply to assist in extinguishing a fire.

Operation

A hose is attached to the fire hydrant, then the valve is opened to provide a powerful flow of water, on the order of 350 kPa (50 lbf/in²) (this pressure varies according to region and depends on various factors including the size and location of the attached water main). This hose can be further attached to a fire engine, which can then use a powerful pump to boost the water pressure and possibly split it into multiple streams. The hose may be connected with a threaded connection or a Storz connector. Care should be taken not to open or close a fire hydrant too quickly, as this can create a water hammer which can damage nearby pipes and equipment. The water inside a charged hoseline causes it to be very heavy and high water pressure causes it to be stiff and unable to make a tight turn while pressurized. When a fire hydrant is unobstructed, this is not a problem, as there is enough room to adequately position the hose.

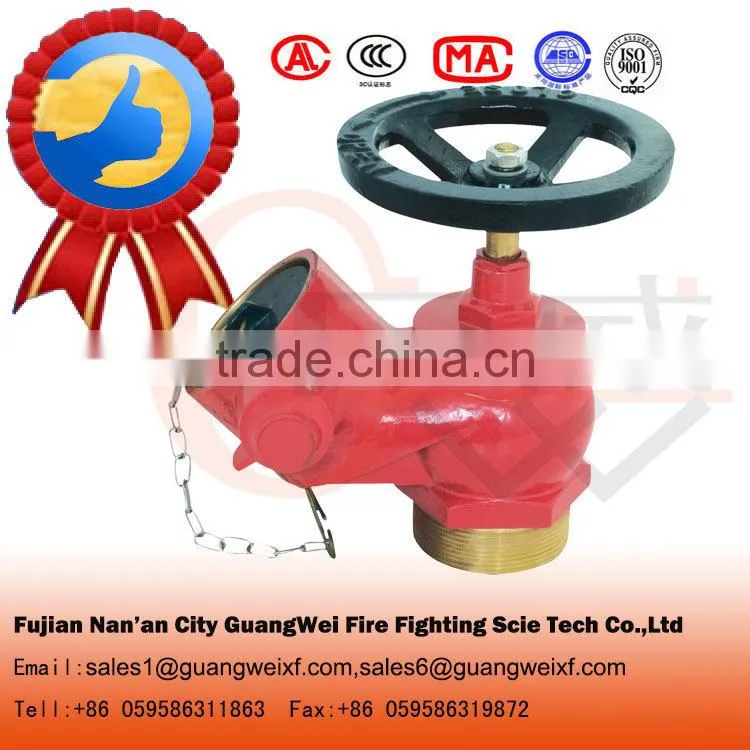

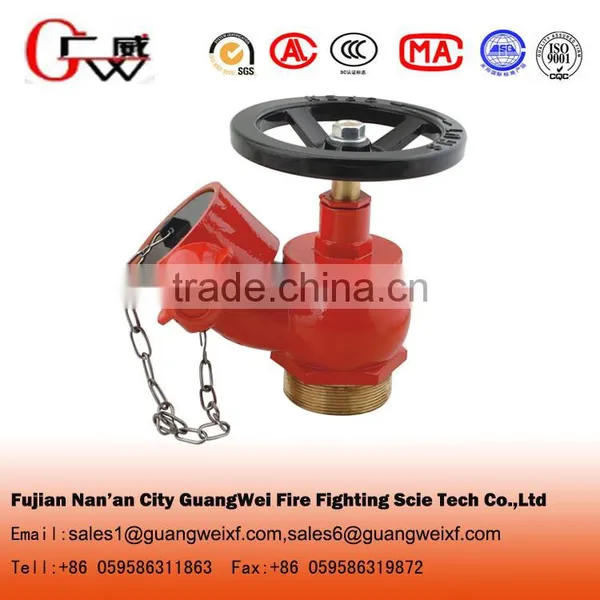

Product name: Double valves and double outlets indoor fire hydrant with decompression and steady pressure

Model: SNSSW65-I-A-F

Material: made of cast iron.

Inlet interface: 65 mm / 2.5 inch

Intake type: cylindrical pipe female thread

Intake Diameter: G3

Outlet type: cylindrical pipe male thread with duct buckle

Outlet Diameter: 65 mm / 2.5 inch

Rated working pressure: 1.6 Mpa

Height of valve opening: 23 mm

For water and foam mixed liquid only

Standard: certification: ISO9001 in accordance with GB3445 china national standard

Note:

All above hydrant are auto-discharge and quick start-up type. (Freeze-proof patents)

1. DN100mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 12.4KG) for freeze-proof regulator. Weight of elbow:17.3KG.
2. DN150mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 27.5KG) for freeze-proof regulator. Weight of elbow: 35.5KG.

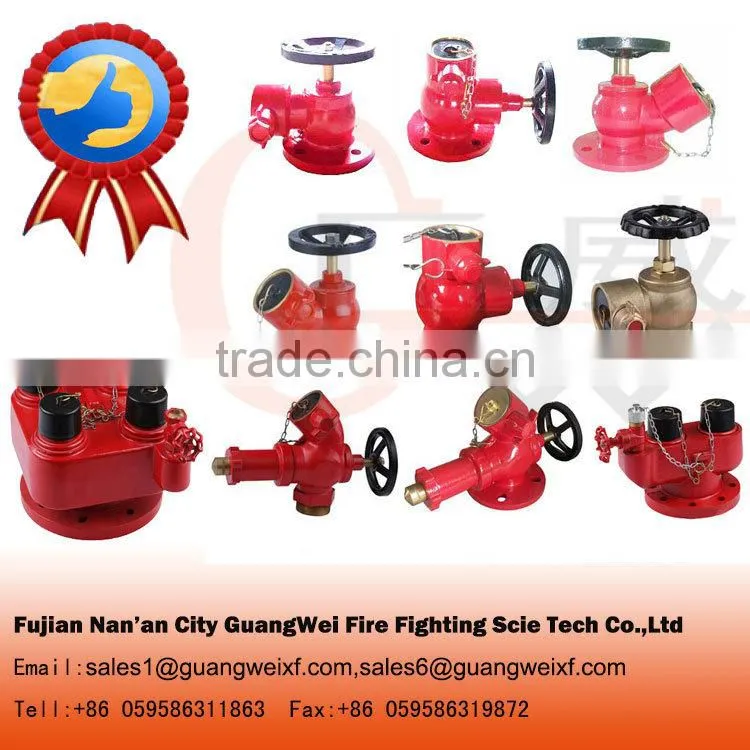

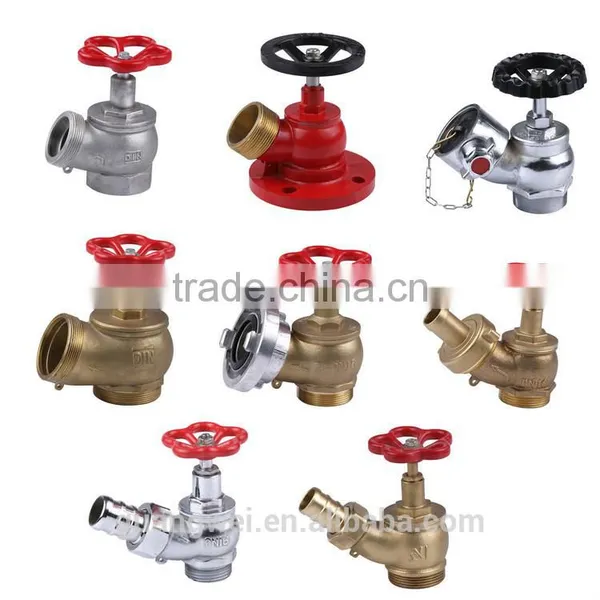

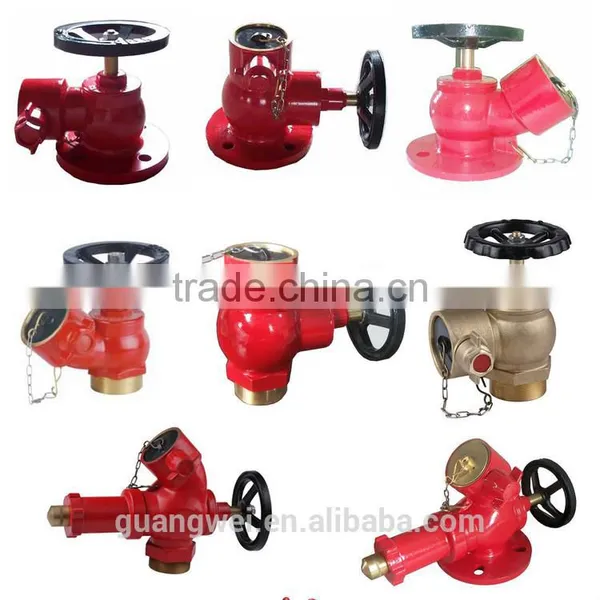

3. Sructural mode and specification:

   1. Single valve with single hydrant for indoor (SN50, SN65)



   2. Single valve with double hydrants for indoor (SNS80*65, SNS65*65)



   3. Double valves with double hydrants for indoor (SNSS65, SNSSW65-I)



   4. Rotary indoor fire hydrant (SNZ65)



   5. Pressure reducing and stabilizing fire hydrant (SNW65-I)



   6. Rotary pressure reducing and stabilizing fire hydrant (SNZW65-I)

4.

   1.  Listed fire sprinkler
   Model: GW001 Style: Upright fire sprinkler Size: R1/2” or NPT 1/2” Material: Brass Plating: Chrome, Natural brass Working pressure : 12bar Operating temperature ::57°C/68°C/79°C/93°C/141°C	Model:GW002 Style: Pendent fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting, Blue painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141° C	Model:GW003 Style: Sidewall fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting, Blue painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141°
   Model: GW004 Pendent or Upright sprinkler with escutcheon Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Natural brass Plating: Brass finished Working pressure : 10bar Operating temperature : 57°C/68°C/79°C/93°C/141°C	Model:GW005 Style: Pendent or Upright fire sprinkler Size: R1/2” 3/4” and NPT 1/2” 3/4” Material: Brass Plating: Chrome, Natural brass, White painting Working pressure : 12bar Operating temperature :57°C/68°C/79°C/93°C/141° C	Model: GW006   ZSTDY15-68°C Concealed pendent fire sprinkler Style: Pendent Size: R1/2” and NPT 1/2” Material: Brass Working pressure : 12bar Operating temperature :  57°C/68°C/79°C/93°C/141° C
