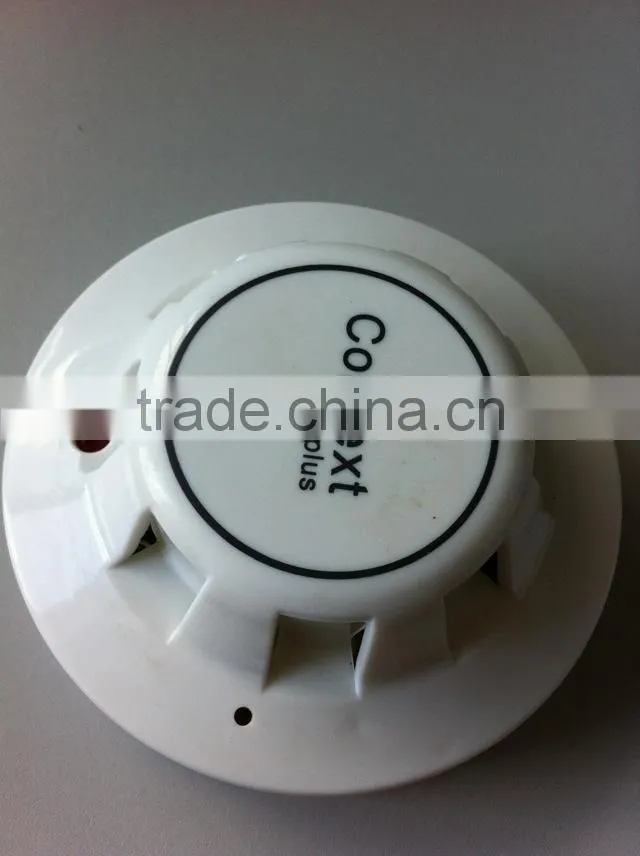

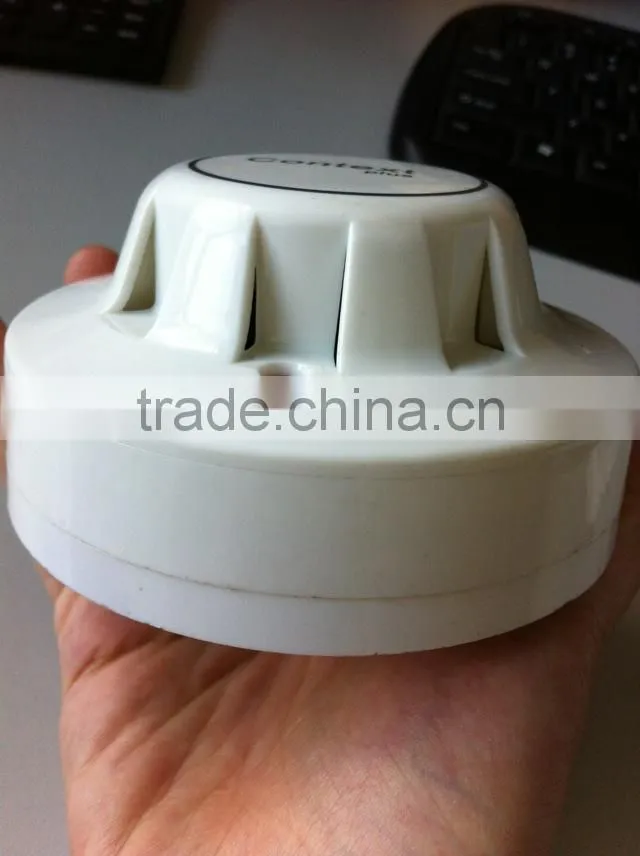

Addressable smoke detector for wireless fire alarm system

Addressable smoke detector for wireless fire alarm system

Specification:

Working voltage: 9V battery 6F22 battery (stand-alone or wireless type),

                          DC 12V (networked)

Static current: less than 10uA (stand-alone or wireless type)

                        ≤ 200 uA (networked)

Alarm current: ≤ 20mA

Alarm indicator: red LED

Alarm sound pressure: ≥ 85dB/m (stand-alone or wireless type)

Working temperature:-10 ~ + 50°C

Environment humidity: ≤ 95%RH (non condensing)

Monitoring area: 20 m²

Alarm mode: sound and light alarm (independent)

                     315MHz or 433MHz wireless signal (wireless)

                     Relay normally open/normally closed (networked)

Transmission distance: open range 100m (wireless)

Dimensions: 107*35mm

Execution standard: GB4715-1993


Features:

* Ceiling or wall mounting
* Easy to install with mounting hardware included
* 9VDC battery
* Flash alarm indicator (red)
* Test button for easy recommended monthly testing
* Low battery signal
* Safety clip feature, not allow mounting of smoke alarm without battery installed
* Photoelectric chamber for early detection from all directions
* Loud 85dB alarm signal

Specifications:

* Power Source: 9VDC battery.
* Operating Current: 10 uA (normal) and 20-50 mA (alarm working)
* Sensitivity to smoke: In comply with UL217 & BS5446: Part 1 2000
* Operating Temperature: 40 - 100F (4. 4 - 37.8C)
* Ambient Humidity: 10% - 90%.
* Horn Level: 85 Decibels at 10 feet.
* Battery life: 1 year min.
* Size: 110mmX25mm
NO/NC Output is also available
