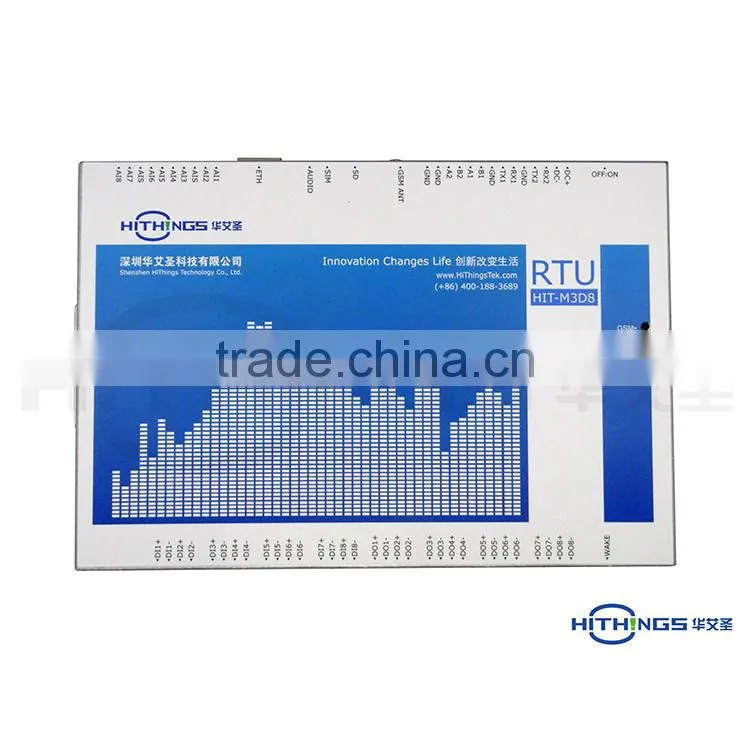

Gsm modbus rtu for M2M gsm gprs monitor M3D8 gsm rtu sms controller
1.2 Function
GSM/GPRS communication function
Ethernet communication function
Serial port communication function
Analog input acquisition function
Digital input acquisition function
Digital output functions
Data storage function
SD card access data function
Real-time clock function
Power management function
LCD display and touch input function(option:Serial port expansion peripheral)
WIFI function(option:Serial port expansion peripheral)
Lora communication function(option:Serial port expansion peripheral)
ZigBee communication function(option:Serial port expansion peripheral)
1.3 Performance Parameter
Item | Technical Parameters |
Gsm gprs module | Industrial GPRS wireless module, frequency range850/900/1800/1900MHz |
Ethernet | Support 10M Base-T/100M Base-TX Ethernet protocol, twisted-pair self-adaption(Auto-MDIX) |
WIFI | WIFI function module, serial port communication |
Lora | Lora function module, serial port communication |
ZigBee | ZigBee function module, serial port communication |
Serial port | 2channelsRS-232, 2channelsRS-485(Of which second channe lcan be |
Power | input range 9-24V,power output including 12V/2.5A,4V/2.5A, 3.3V/2.5A |
Power voltage acquisition | Can collect the external supply voltage and the internal standby supply voltage. |
Analog input | 8 channels;External signal range:0~5V or 4~20mA;Acquisition accuracy 16 bits (0.08 mV or 0.3 uA),the acquisition circuit can be configured as voltage mode or current mode via wire jumper or resistor |
Digital input | 8 channels, can be configured as active or passive input via resistor, adopting interrupt I/O port, can collect the level and pulse signal |
Digital output | 8 channels, can be configured as the relay output mode or transistor output mode via wire jumper, the max load are respectively (10A/250V AC) and (500mA/12V DC) |
Data storage | Can store historical data and real-time data,possess8MB serial FLASH, can be expanded to 16MB and 32MB,possess256KB serial FRAM |
Micro SD Card | Can external connect TF card, support FAT32 file system |
Real-time clock | Adopting high precision clock chip, the error does not exceed 5 seconds / year, ensuring 3 years operating under the case of power down for the back-up battery . |
Power dissipation | Data doesn't transmit state≤60mA Data transmitting state≤100mA |
| Working environment | Temperature:-40~85℃ Humidity:≤95%RH(40℃) |

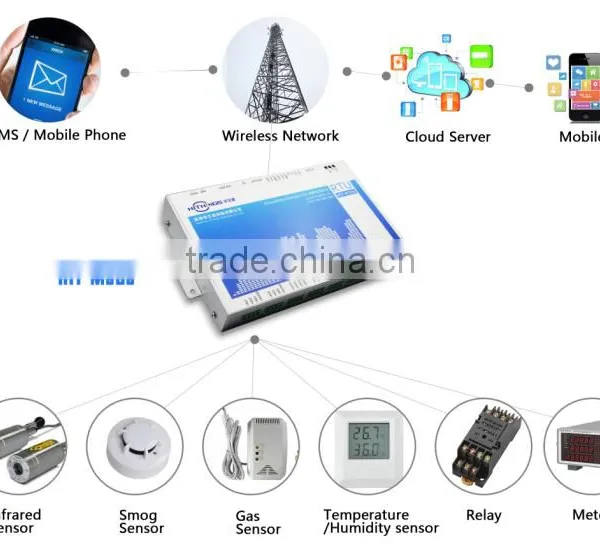

Applications
Web platform
Why find Antecheng ?
A: Rich export experience in wireless communication terminal RTU .DTU .Industry modem GSM SMS Alarm .GSM SMS Controller GSM home Automation system .industrial Remote controller .GPRS RTU Data logger .GSM telemetry .Temperature measurement Logger .power monitoring Alarm .GSM m2m products manufacturer since 2005
B:A service team : professional . passionate .Fun .helpful .hospitable Research team . Can provided customized service for hardware to customer .also can be customized according to customer demand for software and system
C: Quality Control : strict quality control system from material .processing . package to delivery
D: Prompt reply ,professional suggestion and timely delivery.
E: Enough goods in stock from factory . Fast shipping . Best price from manufacturer .
F: Get CE certification, pass SGS certificate.
G: Provide Customized OEM/ODM services from 10 year manufacturer according customer request
