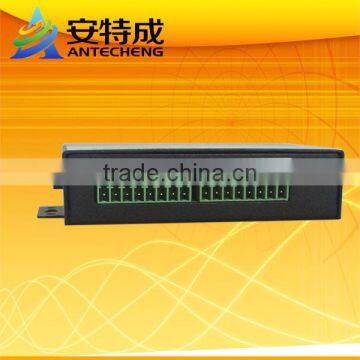

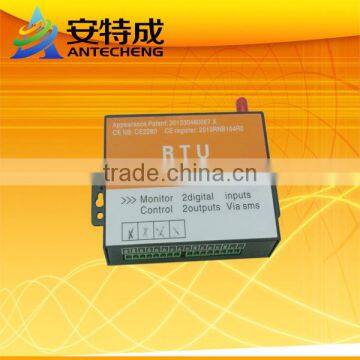

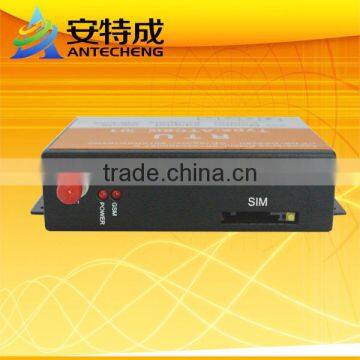

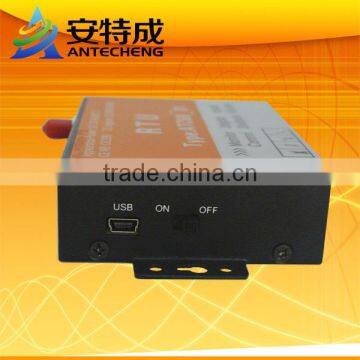

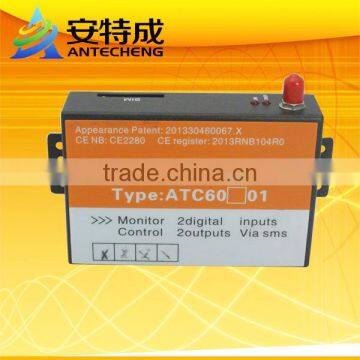

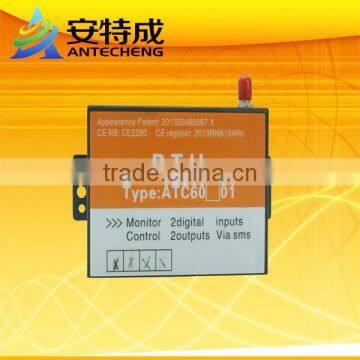

industrial control /alarm gsm remote control switch rtu device

neutral packing

    industrial control /alarm gsm remote control switch rtu device

sms pump controller

GSM alarm and controller

GSM remote switch
Monitor 2 digital inputs 2 relay outputs

Alarm via sms

ATC60A01 GPRS RTU enables various kinds of devices with I/O and Standard protocols to communicate over GSM/GPRS network and the Internet easily and freely. It can construct a smooth GPRS Data Tunnel between Host End and Remote End, ensuring an efficient communication for data transmission and remote device management. ATC60A01 is an ideal solution for factory automation, environmental monitoring and remote device management for M2M industry.
There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in both inputs and outputs condition. A GSM modem is embedded in the RTU, user has to subscribe a SIM card for the RTU. The RTU can be installed in any location under GSM coverage.

Feature

Advance features

·Configurable for alarm and recover sms

·Automatically report the status of itself on schedule

·Support remote setting via sms commands

·Preset 10 phone numbers (can be distributed authority)

·Remote add/edit/delete phone group

·Automatically update internal clock via sms

·Time stamped in alarm or recover messages

·Support ring call when alarm

·Temperature sensor (optional)

·Internal battery (optional)

·Easy used GUI configure software

·Adopted highly integrated industrial CPU

·Reliable performance with built-in double watchdog

·Can execute preset tasks by re-defined conditions

·Low maintenance, 24×7 operation

How to set up

·Can be setup by free PC software via serail port

·Can be setup by cell phone via sms commands

When does GSM rtu Send sms

·Digital inputs are triggered

·Send command via serial port

·External DC power off or server

·On schedule,such as daily report,etc.

2 digital inputs feature

·NO or NC type can be preset

·Configurable for alarm and recover sms

·Configurable for alarm ensure time

·Configurable for alarm delay time

·Configurable for service number’s authority of receive inputs alarm

·Remote query inputs status

2 relay drivable outputs feature

·Multiple output type can be preset

·Remote On/Off/Pulse outputs

·Configurable for pulse time

·Remote query outputs status

·Outputs can be activated by alarm or call

·Outputs can be activated on schedule

Specifications

 Reference scope

DC Power supply           9-28V DC (Standard adapter: DC 12V/1.5A)

Power consumption   12V input Max. 150mA/Average 50mA

Frequency range          Dual-frequency 900/1800 or 900/1800/850/1900

SIM Card Supporting  3V SIM Card

Antenna                         50 Ω SMAAntenna interface

Serial                             RS232/RS485

Temperature range    -40°C ~ +85°C

Humidity range           Relative humidity 95%

Digital Input                 2 digital inputs(Dry contact/Wet contract)

output                            2drivable relay outputs(open-collector outputs)

Output drive voltage   Equal to input DC voltage

Output drive power    Drive voltage ≤35V, drive current ≤500mA

Exterior dimension    120×80×27mm

Weight                          240 g

Applications

• Security Alarm System applications;
• Supervision and monitoring alarm systems;
• Automatic monitoring system;
• Vending Machines security protection;
• Pumping Stations, Tanks, Oil or Water levels;
• Buildings and Real Estate;
• Weather Stations;
• River Monitoring and Flood Control;
• Oil and gas pipelines;
• Corrosion protection
• Temperatures, water leakage applications;
• Wellheads, boat, vehicle;
• Energy saving, street lights control system;
• Valve controls;
• Transformer stations;
• Unmanned machine rooms;
• Control room application;
• Automation System, M2M;GSM Access Control System, GSM Gate Opener, etc.
